ATUM-12 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

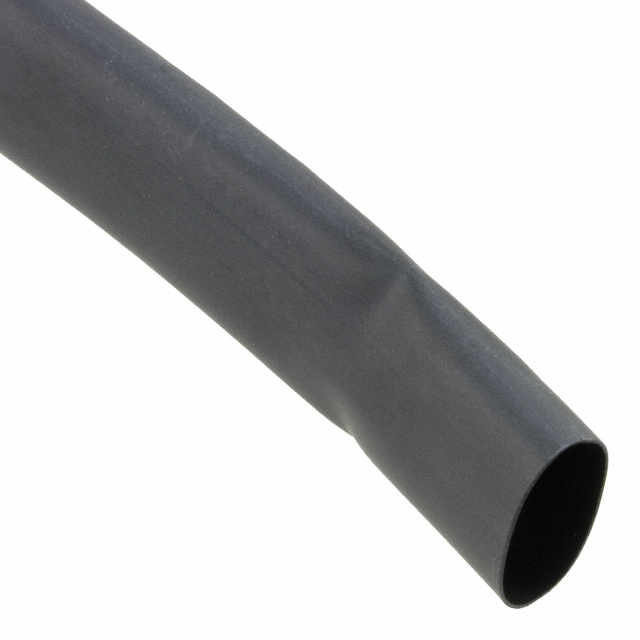

HEATSHRINK DUAL WALL 12MM
| Part | Features | Shrink Temperature | Inner Diameter - Recovered [diameter] | Inner Diameter - Recovered [diameter] | Storage/Refrigeration Temperature [Min] | Storage/Refrigeration Temperature [Max] | Storage/Refrigeration Temperature [Min] | Storage/Refrigeration Temperature [Max] | Length [x] | Length [x] | Material | Type | Shrinkage Ratio | Shelf Life | Inner Diameter - Supplied [diameter] | Inner Diameter - Supplied [diameter] | Recovered Wall Thickness | Recovered Wall Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Adhesive Lined Flame Retardant Fluid Resistant | 80 °C | 0.118 in | 2.99 mm | 0 °C | 35 °C | 32 °F | 95 °F | 4 ft | 1.22 m | Polyolefin (PO) Irradiated | Tubing Semi-Flexible | 4 to 1 | 60 Months | 0.472 in | 11.99 mm | 1.4 mm | 0.055 in | -55 C | 110 °C | Black |
 TE Connectivity AMP Connectors | Adhesive Lined Fluid Resistant | 80 °C | 0.157 " | 3.99 mm | 0 °C | 35 °C | 32 °F | 95 °F | 4 ft | 1.22 m | Polyolefin | Tubing Semi-Flexible | 3 to 1 | 60 Months | 0.472 in | 11.99 mm | 1.78 mm | 0.07 in | -55 C | 110 °C | Clear |
