EVP-BV Series

Catalog

SWITCH TACTILE SPST-NO 0.02A 15V

Part	Contact Rating @ Voltage [x]	Circuit	Actuator Orientation	Switch Function	Switch Travel	Ingress Protection	Mechanical Life	Actuator Height off PCB, Vertical	Termination Style	Actuator Type	Operating Force	Outline [x]	Outline [y]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Actuator Height off PCB, Vertical [z]
Panasonic Industrial Automation Sales EVP-BV4C1L000	0.02 A 15 VDC	SPST-NO	Top Actuated	Off-Mom	0.55 mm	IP67 - Dust Tight Waterproof	200000 Cycles	3.5 mm	J Lead	Standard	255 gf	6.5 mm	6.2 mm	Surface Mount	85 °C	-40 °C	Non-Illuminated
Panasonic Industrial Automation Sales EVP-BV2C1L000	0.02 A 15 VDC	SPST-NO	Top Actuated	Off-Mom	0.4 mm	IP67 - Dust Tight Waterproof	300000 Cycles	3.5 mm	J Lead	Standard	163 gf	6.5 mm	6.2 mm	Surface Mount	85 °C	-40 °C	Non-Illuminated

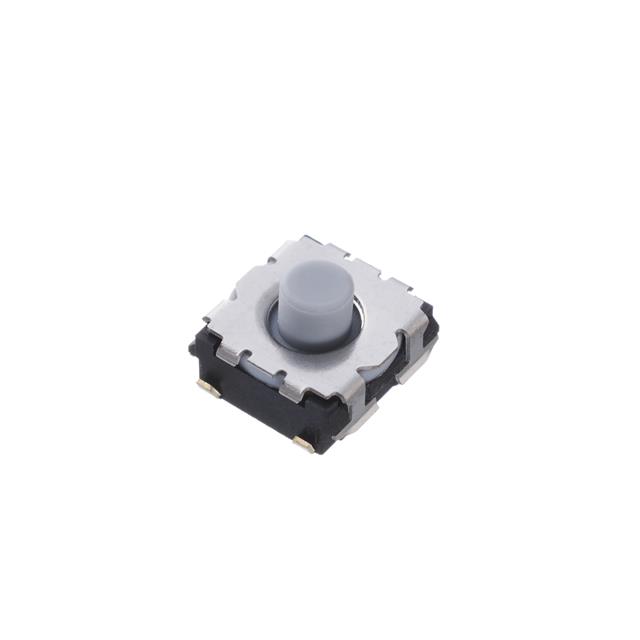

Panasonic Industrial Automation Sales EVP-BV2C3L000	0.02 A 15 VDC	SPST-NO	Top Actuated	Off-Mom	0.45 mm	IP67 - Dust Tight Waterproof	300000 Cycles		J Lead	Standard	163 gf	6.5 mm	6.2 mm	Surface Mount	85 °C	-40 °C	Non-Illuminated	4.3 mm
Panasonic Industrial Automation Sales EVP-BV4C3L000	0.02 A 15 VDC	SPST-NO	Top Actuated	Off-Mom	0.65 mm	IP67 - Dust Tight Waterproof	200000 Cycles		J Lead	Standard	255 gf	6.5 mm	6.2 mm	Surface Mount	85 °C	-40 °C	Non-Illuminated	4.3 mm
