5058C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

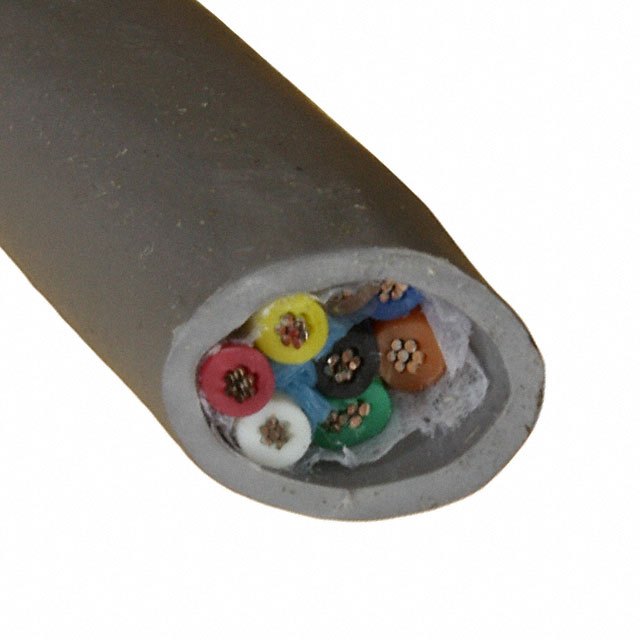

CBL 8COND 20AWG SLATE 1000=1000'
| Part | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Usage | Jacket (Insulation) Material | Jacket Color | Number of Conductors [custom] | Voltage | Conductor Insulation | Ratings | Features | Cable Type | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Length | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 28 AWG | 7 | 0.813 mm | 0.032 in | Copper Tinned | 0.302 in | 7.67 mm | Communication Control | Poly-Vinyl Chloride (PVC) | Slate | 8 | 300 VDC | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2464 | Biological Compatibility Rip Cord | Multi-Conductor | -35 °C | 105 ░C | 20 AWG | ||||
 ALPHA WIRE | 28 AWG | 7 | 0.813 mm | 0.032 in | Copper Tinned | 0.302 in | 7.67 mm | Communication Control | Poly-Vinyl Chloride (PVC) | Black | 8 | 300 VDC | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2464 | Biological Compatibility Rip Cord | Multi-Conductor | -35 °C | 105 ░C | 20 AWG | 304.8 m | 1000 ft | ||
ALPHA WIRE | 28 AWG | 7 | 0.813 mm | 0.032 in | Copper Tinned | 0.302 in | 7.67 mm | Communication Control | Poly-Vinyl Chloride (PVC) | Slate | 8 | 300 VDC | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2464 | Biological Compatibility Rip Cord | Multi-Conductor | -35 °C | 105 ░C | 20 AWG | 100 ft | 30.5 m | ||
ALPHA WIRE | 28 AWG | 7 | 0.813 mm | 0.032 in | Copper Tinned | 0.302 in | 7.67 mm | Communication Control | Poly-Vinyl Chloride (PVC) | Slate | 8 | 300 VDC | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2464 | Biological Compatibility Rip Cord | Multi-Conductor | -35 °C | 105 ░C | 20 AWG | 304.8 m | 1000 ft | ||
 ALPHA WIRE | 28 AWG | 7 | 0.813 mm | 0.032 in | Copper Tinned | 0.302 in | 7.67 mm | Communication Control | Poly-Vinyl Chloride (PVC) | Slate | 8 | 300 VDC | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2464 | Biological Compatibility Rip Cord | Multi-Conductor | -35 °C | 105 ░C | 20 AWG | 152.4 m | 500 ft |
