GBC13S Series

Catalog

CONN HEADER SMD R/A 13POS 2.54MM

Part	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Contact Finish - Post	Insulation Color	Fastening Type	Termination	Contact Shape	Number of Positions Loaded	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Material	Contact Finish - Mating	Connector Type	Material Flammability Rating	Mounting Type	Current Rating (Amps)	Contact Material	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Contact Length - Mating

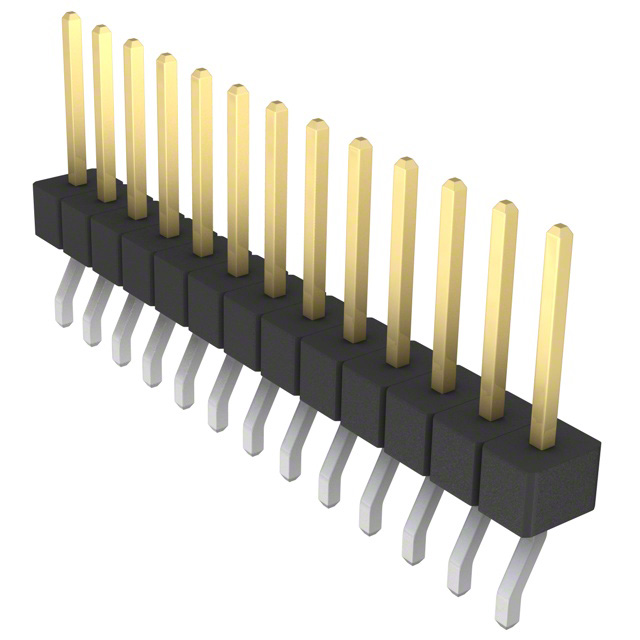

Sullins Connector Solutions GBC13SGSN-M89	13	2.54 µm	100 µin	1	Tin	Black	Push-Pull	Solder	Square	All	0.318 "	8.08 mm	Nylon 9T Polyamide (PA9T)	Gold	Breakaway Header	UL94 V-0	Surface Mount Right Angle	3 A	Phosphor Bronze	Male Pin	10 çin	0.25 çm	Board to Board Cable	Unshrouded	-65 ░C	150 °C	3.56 mm	0.14 in	0.1 in	2.54 mm

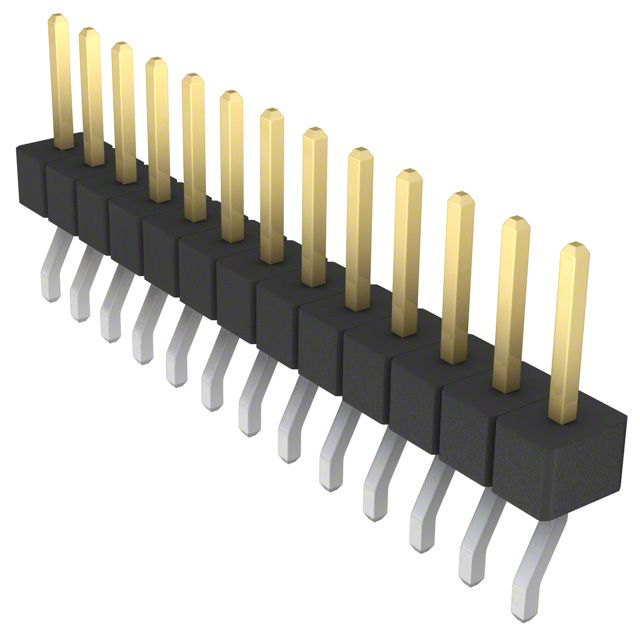

Sullins Connector Solutions GBC13SBSN-M89	13	2.54 µm	100 µin	1	Tin	Black	Push-Pull	Solder	Square	All	0.23 in		Nylon 9T Polyamide (PA9T)	Gold	Breakaway Header	UL94 V-0	Surface Mount Right Angle	3 A	Phosphor Bronze	Male Pin	10 çin	0.25 çm	Board to Board Cable	Unshrouded	-65 ░C	150 °C	3.56 mm	0.14 in	0.1 in	2.54 mm	5.84 mm
