C146 10G024 Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

CONN HOOD TOP ENTRY SZE24 PG21

Part	Lock Location	Connector Type	Housing Material	Size	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Style	Thread Size	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]

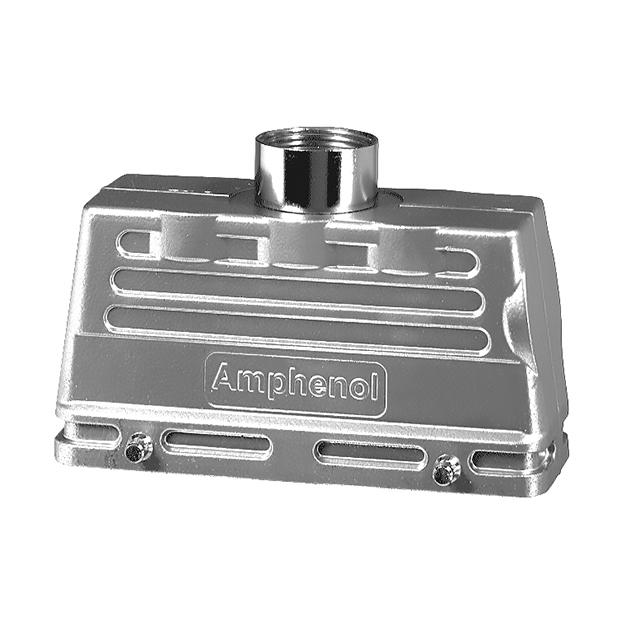

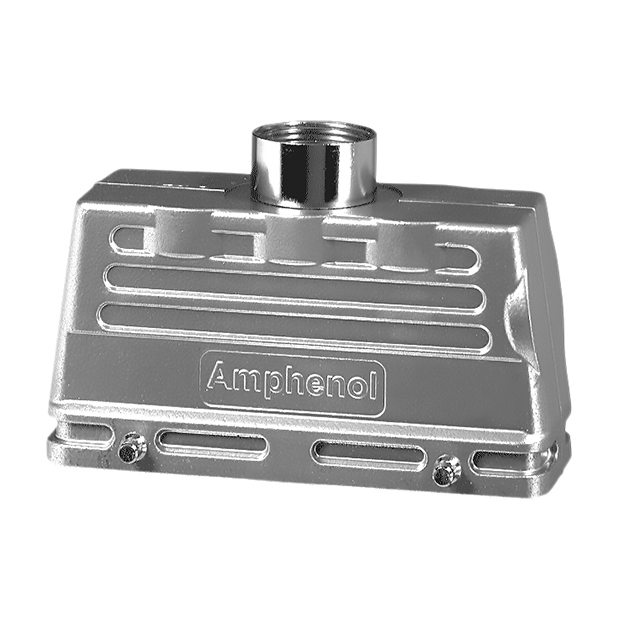

Amphenol Tuchel Industrial C146 10G024 600 1	Locking Clip (2) on Base Bottom	Hood	Aluminum Alloy Die Cast	E24	IP65 - Dust Tight Water Resistant	-40 C	100 °C	Top Entry	PG21	2.441 "	120 mm	4.724 in	1.693 "	43 mm	62 mm

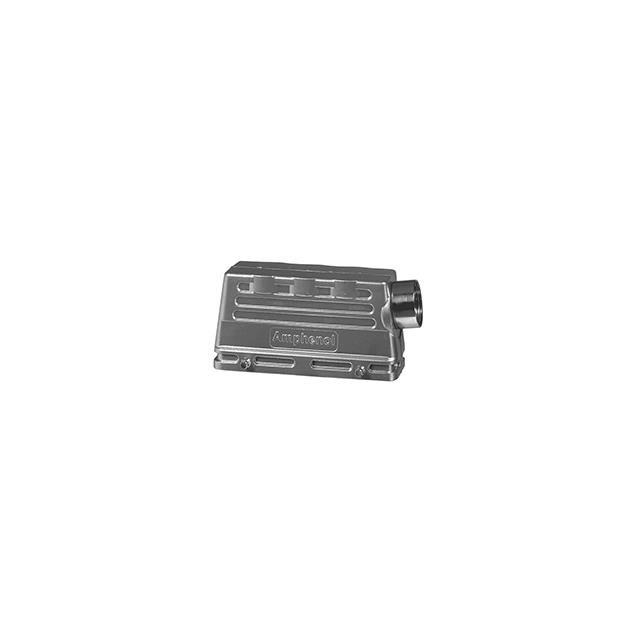

Amphenol Tuchel Industrial C146 10G024 500 1	Locking Clip (2) on Base Bottom	Hood	Aluminum Alloy Die Cast	E24	IP65 - Dust Tight Water Resistant	-40 C	100 °C	Side Entry	PG21	2.441 "	120 mm	4.724 in	1.693 "	43 mm	62 mm
Amphenol Tuchel Industrial C146 10G024 606 1	Locking Clip (1) on Base Bottom	Hood	Aluminum Alloy Die Cast	E24	IP65 - Dust Tight Water Resistant	-40 C	100 °C	Top Entry	PG21	2.441 "	120 mm	4.724 in	1.693 "	43 mm	62 mm
Amphenol Tuchel Industrial C146 10G024 507 1	Locking Clip (1) on Base Bottom	Hood	Aluminum Alloy Die Cast	E24	IP65 - Dust Tight Water Resistant	-40 C	100 °C	Side Entry	PG29	2.441 "	120 mm	4.724 in	1.693 "	43 mm	62 mm
Amphenol Tuchel Industrial C146 10G024 507 8	Locking Clip (1) on Base Bottom	Hood	Aluminum Die Cast	E24	IP65 - Dust Tight Water Resistant	-40 C	100 °C	Side Entry	PG29	2.992 in	120 mm	4.724 in	1.693 "	43 mm	76 mm

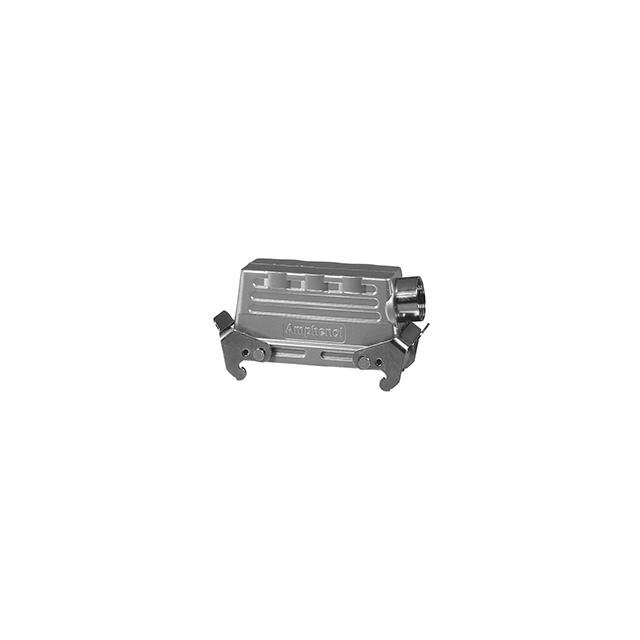

Amphenol Tuchel Industrial C146 10G024 502 1	Locking Clip (2) on Hood	Hood	Aluminum Alloy Die Cast	E24	IP65 - Dust Tight Water Resistant	-40 C	100 °C	Side Entry	PG21	2.441 "	120 mm	4.724 in	1.693 "	43 mm	62 mm

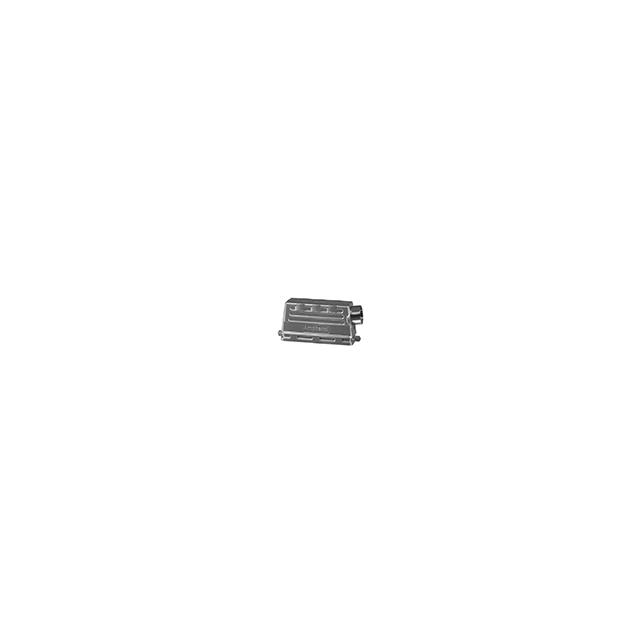

Amphenol Tuchel Industrial C146 10G024 506 1	Locking Clip (1) on Base Bottom	Hood	Aluminum Alloy Die Cast	E24	IP65 - Dust Tight Water Resistant	-40 C	100 °C	Side Entry	PG21	2.441 "	120 mm	4.724 in	1.693 "	43 mm	62 mm

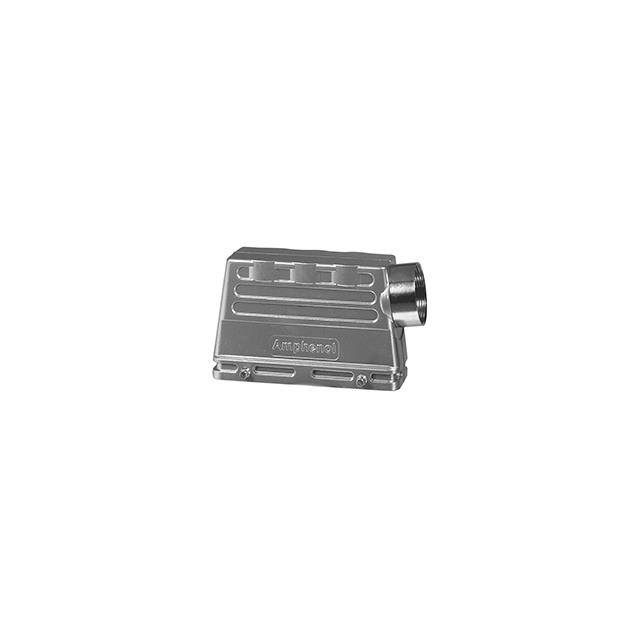

Amphenol Tuchel Industrial C146 10G024 500 8	Locking Clip (2) on Hood	Hood	Aluminum Die Cast	E24	IP65 - Dust Tight Water Resistant	-40 C	100 °C	Side Entry	PG21	2.992 in	120 mm	4.724 in	1.693 "	43 mm	76 mm
Amphenol Tuchel Industrial C146 10G024 501 8	Locking Clip (2) on Hood	Hood	Aluminum Die Cast	E24	IP65 - Dust Tight Water Resistant	-40 C	100 °C	Side Entry	PG29	2.992 in	120 mm	4.724 in	1.693 "	43 mm	76 mm
Amphenol Tuchel Industrial C146 10G024 606 8	Locking Clip (1) on Base Bottom	Hood	Aluminum Die Cast	E24	IP65 - Dust Tight Water Resistant	-40 C	100 °C	Top Entry	PG21	2.992 in	120 mm	4.724 in	1.693 "	43 mm	76 mm
