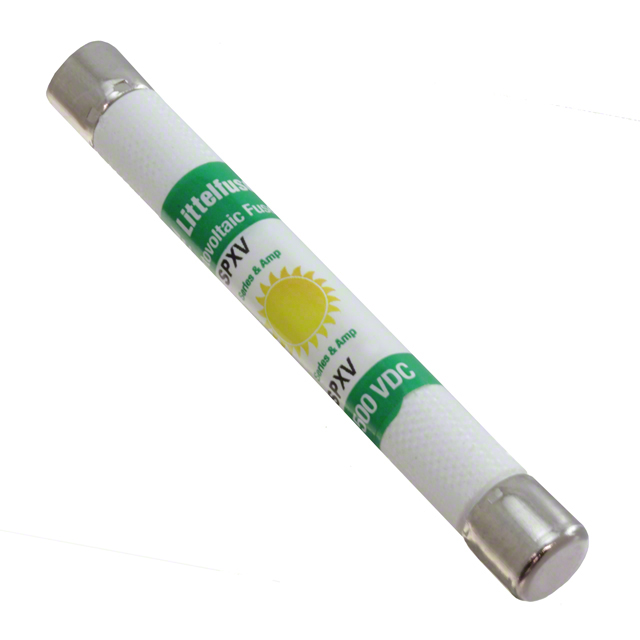

1500 VDC 12 AMP PHOTOVOLTAIC FUSE
Key Features
• UL 248-19 Listed
• 50 kA interrupting rating
Description
AI
The Littelfuse SPXV solar string fuse is designed specifically for 1–60 A 1500 V dc applications.
Beta
⌘K
1500 VDC 12 AMP PHOTOVOLTAIC FUSE
1500 VDC 12 AMP PHOTOVOLTAIC FUSE
| Part | Fuse Type | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Applications | Approval Agency | Breaking Capacity @ Rated Voltage | Voltage Rating - DC | Package / Case | Mounting Type | DC Cold Resistance | Current Rating (Amps) | Melting I˛t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | Cartridge | 0.406 in | 84.65 mm | 3.333 in | 10.3 mm | Solar (Photovoltaic) | CE UR | 15 kA | 1.5 kVDC | Cartridge Non-Standard | Requires Holder | 0.0163 Ohms | 12 A | 798 |
 Littelfuse/Commercial Vehicle Products | Cartridge | 0.406 in | 84.65 mm | 3.333 in | 10.3 mm | Solar (Photovoltaic) | CE UR | 15 kA | 1.5 kVDC | Cartridge Non-Standard | Requires Holder | 0.0163 Ohms | 12 A | 798 |
