27TMSP Series
Manufacturer: Essentra Components
Beta
⌘K

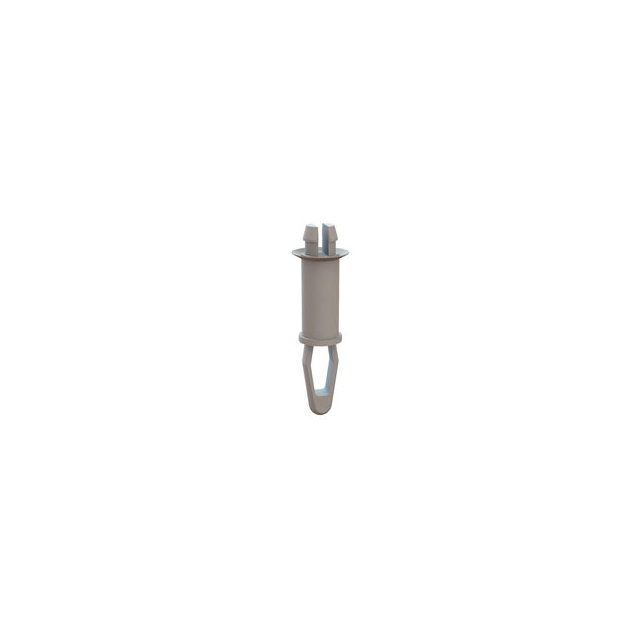

PCB SUPPORT, SNAP FIT, .156/.125
| Part | Mounting Panel Thickness [x] | Mounting Panel Thickness [x] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Between Board Height | Between Board Height | Between Board Height | Mounting Type | Support Panel Thickness [custom] | Support Panel Thickness [custom] | Holding Type | Material | Support Hole Diameter [diameter] | Support Hole Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Essentra Components | 1.59 mm | 0.063 " | 3.18 mm | 0.125 in | 0.125 in | 19.05 mm | 0.75 " | 0.75 " | Snap Lock | 0.063 in | 1.59 mm | Snap Lock | Nylon | 0.156 in | 3.96 mm |
Essentra Components | 1.59 mm | 0.063 " | 3.18 mm | 0.125 in | 0.125 in | 25.4 mm | 1 in | Snap Lock | 0.063 in | 1.59 mm | Snap Lock | Nylon | 0.156 in | 3.96 mm | |
Essentra Components | 1.59 mm | 0.063 " | 3.18 mm | 0.125 in | 0.125 in | 3.18 mm | 0.125 in | 0.125 in | Snap Lock | 0.063 in | 1.59 mm | Snap Lock | Nylon | 0.156 in | 3.96 mm |
Essentra Components | 1.59 mm | 0.063 " | 3.18 mm | 0.125 in | 0.125 in | 12.7 mm | 0.5 in | Snap Lock | 0.063 in | 1.59 mm | Snap Lock | Nylon | 0.156 in | 3.96 mm | |
Essentra Components | 1.59 mm | 0.063 " | 3.18 mm | 0.125 in | 0.125 in | 9.53 mm | 0.375 " | 0.375 in | Snap Lock | 0.063 in | 1.59 mm | Snap Lock | Nylon | 0.156 in | 3.96 mm |
Essentra Components | 1.59 mm | 0.063 " | 3.18 mm | 0.125 in | 0.125 in | 15.88 mm | 5 8 | 0.625 in | Snap Lock | 0.063 in | 1.59 mm | Snap Lock | Nylon | 0.156 in | 3.96 mm |
