833-046 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 46POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Number of Positions/Bay/Row	Contact Finish	Number of Rows [custom]	Termination	Number of Positions	Mounting Type	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Color	Card Type	Pitch	Pitch	Read Out	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Type	Features	Contact Material
EDAC Inc. 833-046-556-202	Diallyl Phthalate (DAP)	2	23	Gold	2	Solder	46	Board Edge Straddle Mount	Female	125 °C	-40 C	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Non Specified - Dual Edge	3.96 mm	0.156 in	Dual	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Cantilever	Card Extender	Copper Alloy
EDAC Inc. 833-046-542-203	Diallyl Phthalate (DAP)	2	23	Gold	2	Wire Wrap	46	Through Hole	Female	125 °C	-40 C	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Non Specified - Dual Edge	3.96 mm	0.156 in	Dual	Floating Bobbin Flush Mount	2.95 mm	0.116 "	Cantilever		Copper Alloy

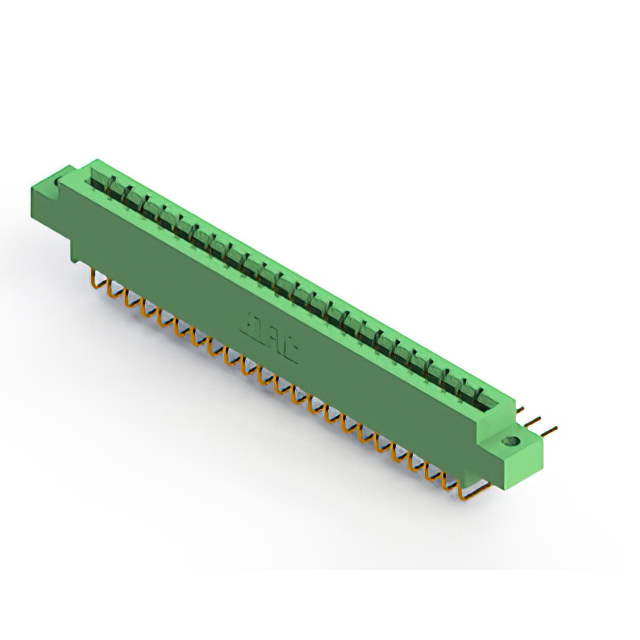

EDAC Inc. 833-046-559-802	Diallyl Phthalate (DAP)	2	23	Gold	2	Solder	46	Right Angle Through Hole	Female	125 °C	-40 C	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Non Specified - Dual Edge	3.96 mm	0.156 in	Dual		3.25 mm	0.128 "	Cantilever		Copper Alloy
EDAC Inc. 833-046-540-203	Diallyl Phthalate (DAP)	2	23	Gold	2	Wire Wrap	46	Through Hole	Female	125 °C	-40 C	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Non Specified - Dual Edge	3.96 mm	0.156 in	Dual	Floating Bobbin Flush Mount	2.95 mm	0.116 "	Cantilever		Copper Alloy

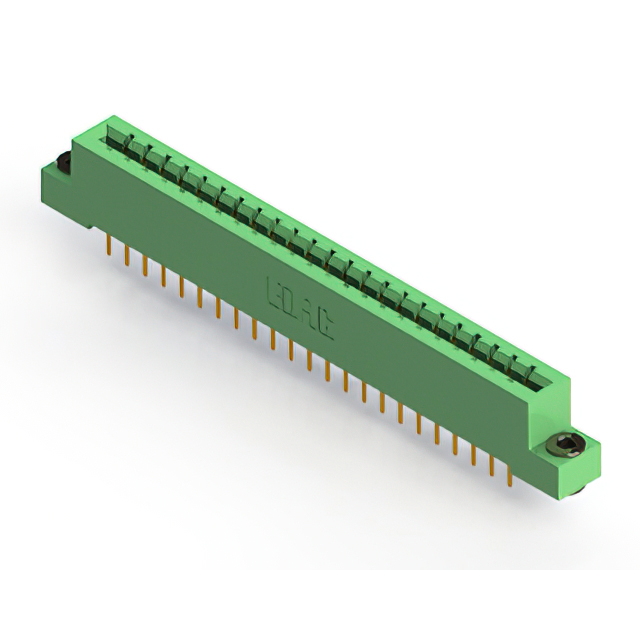

EDAC Inc. 833-046-520-203	Diallyl Phthalate (DAP)	2	23	Gold	2	Solder	46	Through Hole	Female	125 °C	-40 C	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Non Specified - Dual Edge	3.96 mm	0.156 in	Dual	Floating Bobbin Flush Mount	2.95 mm	0.116 "	Cantilever		Copper Alloy

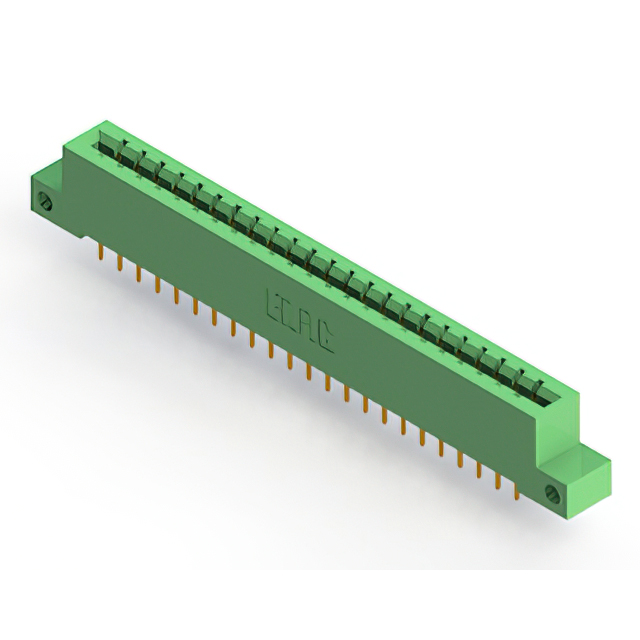

EDAC Inc. 833-046-521-212	Diallyl Phthalate (DAP)	2	23	Gold	2	Solder	46	Through Hole	Female	125 °C	-40 C	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Non Specified - Dual Edge	3.96 mm	0.156 in	Dual	Side Mount Opening Unthreaded	3.25 mm	0.128 "	Cantilever		Copper Alloy
EDAC Inc. 833-046-520-202	Diallyl Phthalate (DAP)	2	23	Gold	2	Solder	46	Through Hole	Female	125 °C	-40 C	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Non Specified - Dual Edge	3.96 mm	0.156 in	Dual	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Cantilever		Copper Alloy

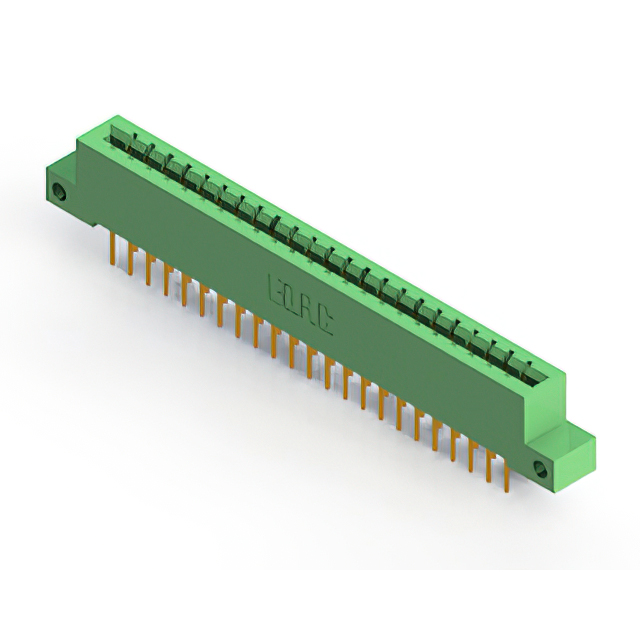

EDAC Inc. 833-046-523-212	Diallyl Phthalate (DAP)	2	23	Gold	2	Solder	46	Through Hole	Female	125 °C	-40 C	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Non Specified - Dual Edge	3.96 mm	0.156 in	Dual	Side Mount Opening Unthreaded	3.25 mm	0.128 "	Cantilever		Copper Alloy

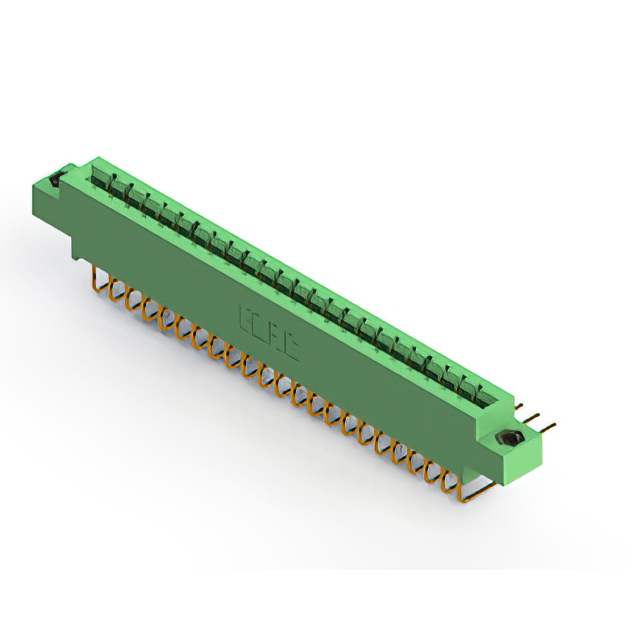

EDAC Inc. 833-046-558-807	Diallyl Phthalate (DAP)	2	23	Gold	2	Solder	46	Right Angle Through Hole	Female	125 °C	-40 C	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Non Specified - Dual Edge	3.96 mm	0.156 in	Dual	M3 Threaded Insert Top Mount Opening			Cantilever		Copper Alloy

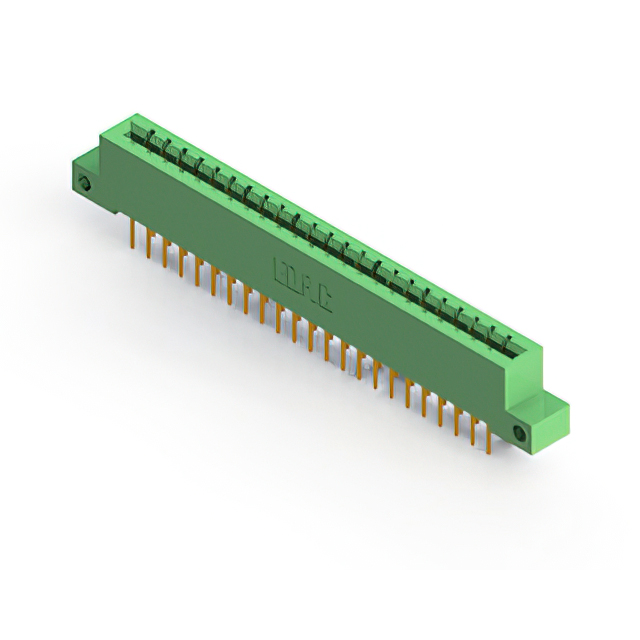

EDAC Inc. 833-046-541-212	Diallyl Phthalate (DAP)	2	23	Gold	2	Wire Wrap	46	Through Hole	Female	125 °C	-40 C	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Non Specified - Dual Edge	3.96 mm	0.156 in	Dual	Side Mount Opening Unthreaded	3.25 mm	0.128 "	Cantilever		Copper Alloy
