1825152 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

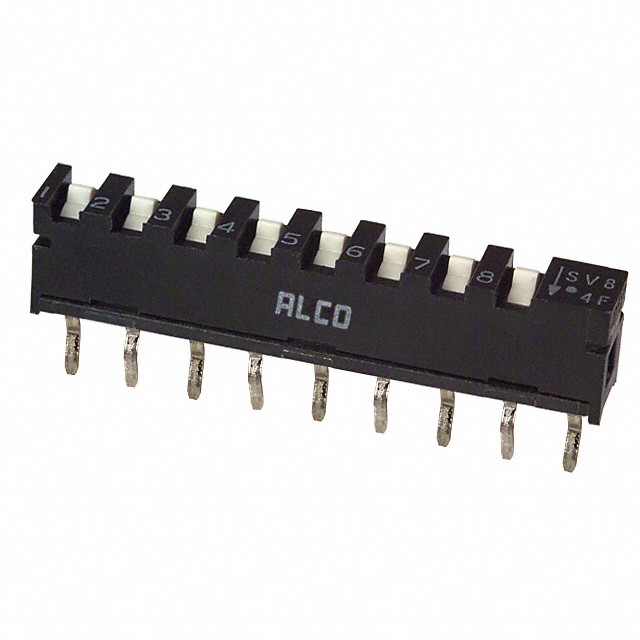

SWITCH SLIDE DIP SPST 0.4VA 20V
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Contact Material | Contact Finish | Mounting Type | Circuit | Actuator Type | Washable | Mechanical Life | Length [x] | Length [x] | Voltage Rating | Termination Style | Height Above Board [z] | Height Above Board [z] | Electrical Life | Actuator Level | Pitch [x] | Pitch | Pitch [x] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | -30 ░C | 85 °C | Polyphenylene Sulfide (PPS) | Copper Alloy | Gold | Through Hole | SPST | Slide (Standard) | 1000 Cycles | 0.898 in | 22.82 mm | 20 VAC/DC | PC Pin | 5 mm | 0.197 in | 1000 Cycles | Flush Recessed | 0.1 in | Full | 2.54 mm | 8 |
