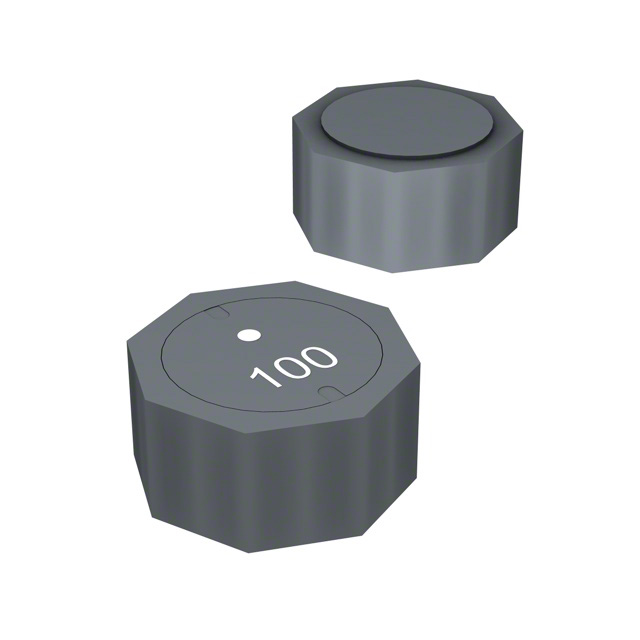

SRU1048 Series

Catalog

INDUCTOR POWER SHIELDED WIREWOUND 150UH 30% 100KHZ 24Q-FACTOR FERRITE 1A 0.305OHM DCR T/R

Part	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Inductance	Package / Case	Frequency - Self Resonant	Tolerance	Mounting Type	Material - Core	Current Rating (Amps)	Shielding	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	DC Resistance (DCR)	Current - Saturation (Isat)	Inductance Frequency - Test	Q @ Freq [custom]	Q @ Freq [custom]	Q @ Freq
Bourns Inc. SRU1048-151Y	125 °C	-40 C	0.201 in	5.1 mm	Drum Core Wirewound	150 µH	Nonstandard	4.5 MHz	30 %	Surface Mount	Ferrite	1 A	Shielded	0.394 in	0.394 in	10 mm	10 mm	235 mOhm	800 mA	100 kHz	24	796 kHz
Bourns Inc. SRU1048-3R3Y	125 °C	-40 C	0.201 in	5.1 mm	Drum Core Wirewound	3.3 µH	Nonstandard		30 %	Surface Mount	Ferrite		Shielded	0.394 in	0.394 in	10 mm	10 mm			100 kHz
Bourns Inc. SRU1048-820Y	125 °C	-40 C	0.201 in	5.1 mm	Drum Core Wirewound	82 µH	Nonstandard	5.5 MHz	30 %	Surface Mount	Ferrite	1.3 A	Shielded	0.394 in	0.394 in	10 mm	10 mm	149 mOhm	1.1 A	100 kHz	24	2.52 MHz
Bourns Inc. SRU1048-331Y	125 °C	-40 C	0.201 in	5.1 mm	Drum Core Wirewound	330 µH	Nonstandard	3 MHz	30 %	Surface Mount	Ferrite	650 mA	Shielded	0.394 in	0.394 in	10 mm	10 mm	490 mOhm	520 mA	100 kHz			18 796 kHz
Bourns Inc. SRU1048-471Y	125 °C	-40 C	0.201 in	5.1 mm	Drum Core Wirewound	470 µH	Nonstandard		30 %	Surface Mount	Ferrite		Shielded	0.394 in	0.394 in	10 mm	10 mm			100 kHz
Bourns Inc. SRU1048-101Y	125 °C	-40 C	0.201 in	5.1 mm	Drum Core Wirewound	100 µH	Nonstandard	5 MHz	30 %	Surface Mount	Ferrite	1.2 A	Shielded	0.394 in	0.394 in	10 mm	10 mm	160 mOhm	1 A	100 kHz	26	796 kHz
Bourns Inc. SRU1048-8R2Y	125 °C	-40 C	0.201 in	5.1 mm	Drum Core Wirewound	8.2 µH	Nonstandard	18 MHz	30 %	Surface Mount	Ferrite	4.6 A	Shielded	0.394 in	0.394 in	10 mm	10 mm	15 mOhm	3.8 A	100 kHz			7.96 MHz 8
Bourns Inc. SRU1048-100Y	125 °C	-40 C	0.201 in	5.1 mm	Drum Core Wirewound	10 µH	Nonstandard	16 MHz	30 %	Surface Mount	Ferrite	4.5 A	Shielded	0.394 in	0.394 in	10 mm	10 mm	18.5 mOhm	3.7 A	100 kHz			7.96 MHz 26
Bourns Inc. SRU1048-3R0Y	125 °C	-40 C	0.201 in	5.1 mm	Drum Core Wirewound	3 ÁH	Nonstandard	40 MHz	30 %	Surface Mount	Ferrite	6.2 Amps	Shielded	0.394 in	0.394 in	10 mm	10 mm	7.2 mOhm	6 A	100 kHz	14	7.96 MHz
