315-026 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 26POS 0.156

Part	Material - Insulation	Termination Rows [custom]	Contact Finish	Contact Material	Pitch	Pitch	Card Type	Card Thickness [Max]	Card Thickness [Min]	Termination	Color	Contact Type	Mounting Type	Read Out	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Gender	Number of Positions	Number of Rows [custom]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]

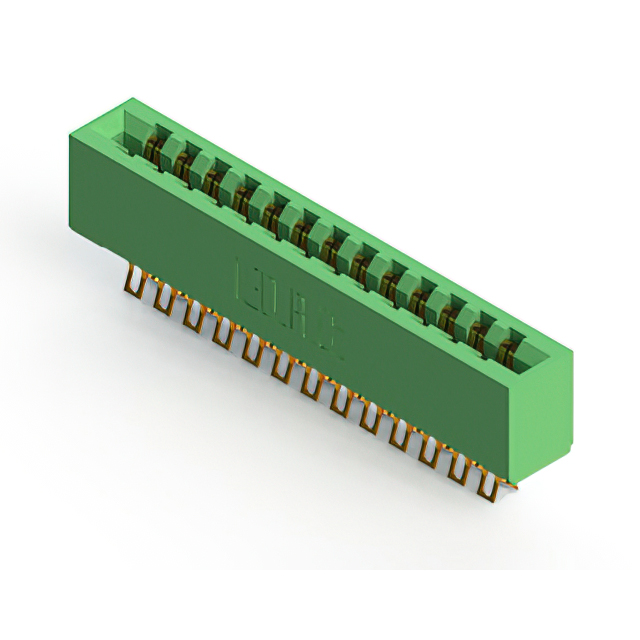

EDAC Inc. 315-026-555-201	Polyester Thermoplastic	2	Gold	Copper Alloy	3.96 mm	0.156 in	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Green	Semi Bellows	Board Edge Straddle Mount	Dual	13	0.25 Ám	10 Áin	Female	26	2	Card Extender	-40 C	105 ░C
EDAC Inc. 315-026-556-268	Polyester Thermoplastic	2	Gold	Copper Alloy	3.96 mm	0.156 in	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Green	Semi Bellows	Board Edge Straddle Mount	Dual	13	0.25 Ám	10 Áin	Female	26	2	Card Extender Card Guides	-40 C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 315-026-521-258	Polyester Thermoplastic	2	Gold	Copper Alloy	3.96 mm	0.156 in	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Green	Semi Bellows	Panel Mount Through Hole	Dual	13	0.25 Ám	10 Áin	Female	26	2		-40 C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening

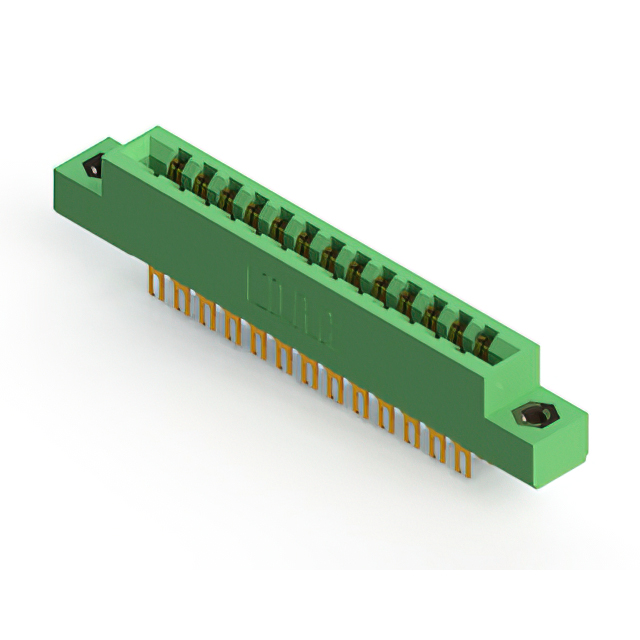

EDAC Inc. 315-026-500-208	Polyester Thermoplastic	2	Gold	Copper Alloy	3.96 mm	0.156 in	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder Eyelet(s)	Green	Semi Bellows	Panel Mount	Dual	13	0.25 Ám	10 Áin	Female	26	2		-40 C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening

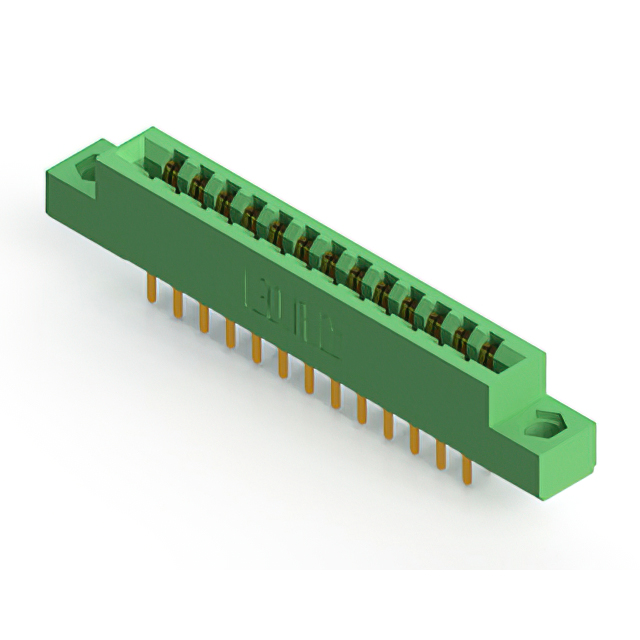

EDAC Inc. 315-026-520-204	Polyester Thermoplastic	2	Gold	Copper Alloy	3.96 mm	0.156 in	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Green	Semi Bellows	Panel Mount Through Hole	Dual	13	0.25 Ám	10 Áin	Female	26	2		-40 C	105 ░C	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm

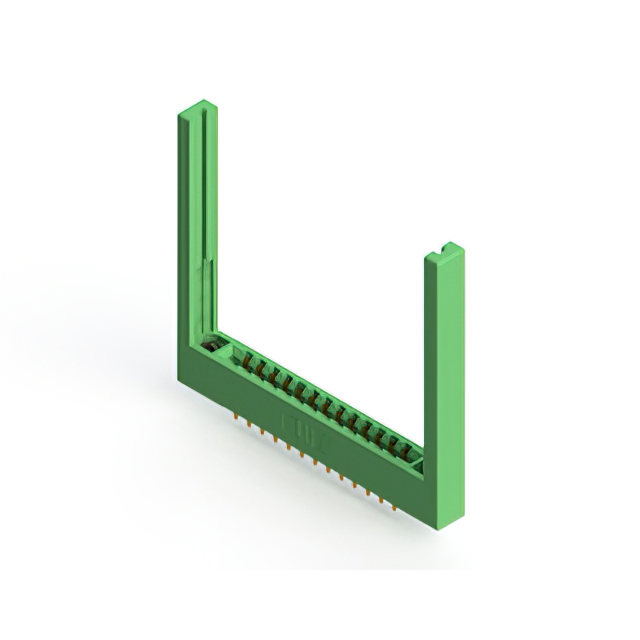

EDAC Inc. 315-026-521-268	Polyester Thermoplastic	2	Gold	Copper Alloy	3.96 mm	0.156 in	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Green	Semi Bellows	Panel Mount Through Hole	Dual	13	0.25 Ám	10 Áin	Female	26	2		-40 C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 315-026-556-201	Polyester Thermoplastic	2	Gold	Copper Alloy	3.96 mm	0.156 in	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Green	Semi Bellows	Board Edge Straddle Mount	Dual	13	0.25 Ám	10 Áin	Female	26	2	Card Extender	-40 C	105 ░C

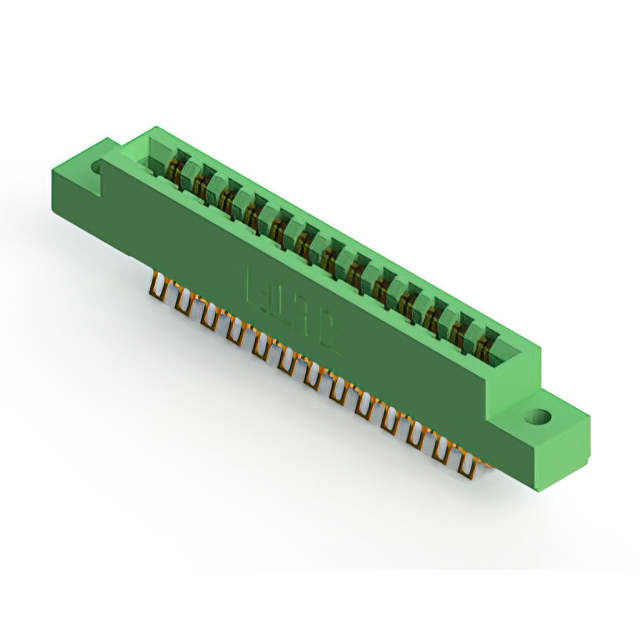

EDAC Inc. 315-026-555-202	Polyester Thermoplastic	2	Gold	Copper Alloy	3.96 mm	0.156 in	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Green	Semi Bellows	Board Edge Straddle Mount	Dual	13	0.25 Ám	10 Áin	Female	26	2	Card Extender	-40 C	105 ░C	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm
EDAC Inc. 315-026-555-258	Polyester Thermoplastic	2	Gold	Copper Alloy	3.96 mm	0.156 in	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Green	Semi Bellows	Board Edge Straddle Mount	Dual	13	0.25 Ám	10 Áin	Female	26	2	Card Extender Card Guides	-40 C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening

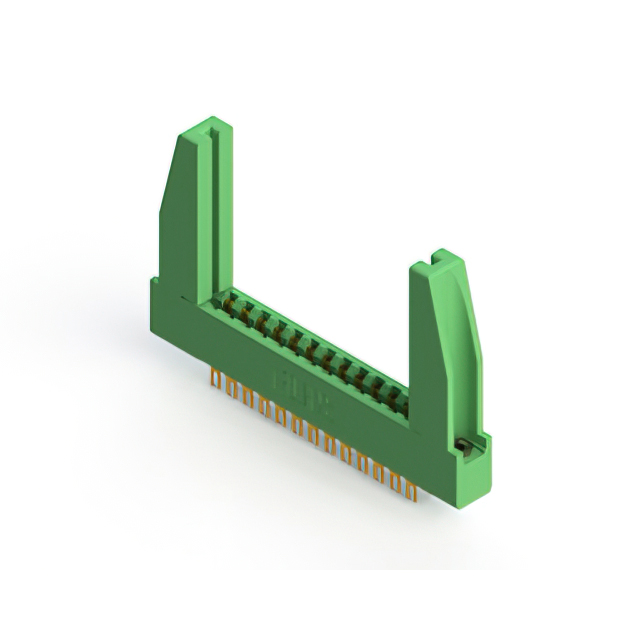

EDAC Inc. 315-026-500-278	Polyester Thermoplastic	2	Gold	Copper Alloy	3.96 mm	0.156 in	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder Eyelet(s)	Green	Semi Bellows	Panel Mount	Dual	13	0.25 Ám	10 Áin	Female	26	2		-40 C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening
