747150 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

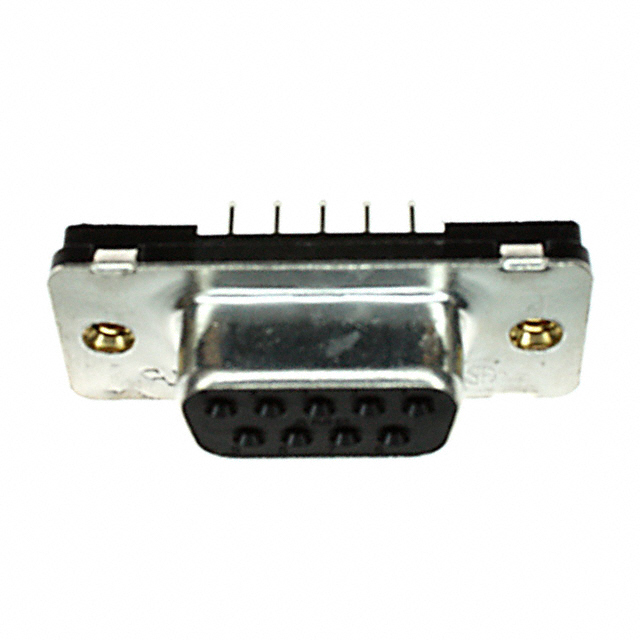

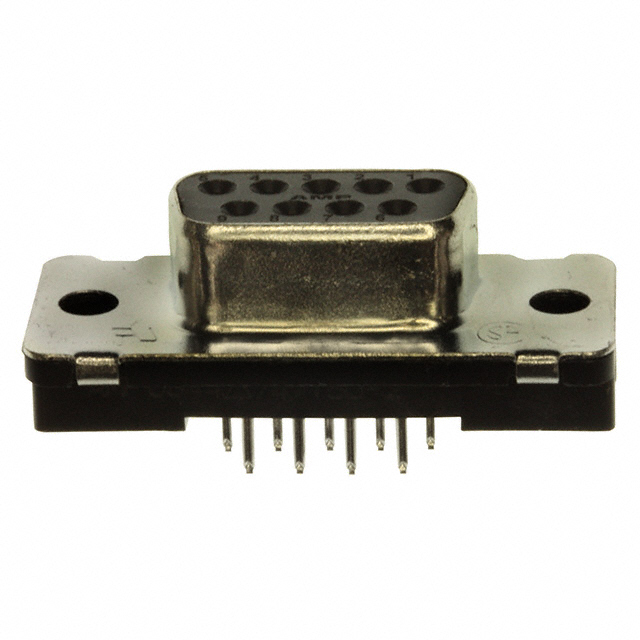

CONN D-SUB RCPT 9POS VERT SLDR
| Part | Voltage Rating | Color | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Material | Material Flammability Rating | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Type | Contact Finish | Number of Rows [custom] | Flange Feature | Flange Feature | Current Rating (Amps) | Termination | Contact Type | Number of Positions | Connector Style | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 125 VDC | Black | -55 C | 105 ░C | Polyester | Phosphor Bronze | UL94 V-0 | 1 | DE E | Receptacle Female Sockets | Gold | 2 | Housing/Shell | 4-40 | 6 A | Solder | Signal | 9 | D-Sub | Through Hole | Flash | ||
 TE Connectivity AMP Connectors | 125 VDC | Black | -55 C | 105 ░C | Polyester | Phosphor Bronze | UL94 V-0 | 1 | DE E | Receptacle Female Sockets | Gold | 2 | Housing/Shell (Unthreaded) | 6 A | Solder | Signal | 9 | D-Sub | Through Hole | 30 Áin | 0.76 Ám | ||
 TE Connectivity AMP Connectors | 125 VDC | Black | -55 C | 105 ░C | Polyester | Phosphor Bronze | UL94 V-0 | 1 | DE E | Receptacle Female Sockets | Gold | 2 | Housing/Shell | 4-40 | 6 A | Solder | Signal | 9 | D-Sub | Through Hole | 30 Áin | 0.76 Ám |
