LP38693-ADJ-Q1 Series

Automotive 500-mA, 10-V, adjustable low-dropout voltage regulator with enable

Catalog

Automotive 500-mA, 10-V, adjustable low-dropout voltage regulator with enable

Part	Voltage - Input (Max) [Max]	Output Configuration	Mounting Type	Supplier Device Package	Current - Supply (Max) [Max]	Output Type	Package / Case	Protection Features	Voltage - Output (Max) [Max]	PSRR	Current - Output	Current - Quiescent (Iq)	Number of Regulators	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Min/Fixed)	Voltage - Output [Max]	Voltage - Output [Min]	Voltage - Input [Min]	Voltage - Input [Max]	Utilized IC / Part	Board Type	Regulator Type	Supplied Contents	Channels per IC	Voltage Dropout (Max) [Max]	Qualification	Output Type	Grade
Texas Instruments LP38693MP-ADJ/NOPB	10 V	Positive	Surface Mount	SOT-223-5	100 çA	Adjustable	TO-261-5 TO-261AB	Over Temperature	9 V	55 dB	500 mA	55 µA	1	Enable	125 °C	-40 °C	1.25 V
Texas Instruments LP38693MP-ADJ	10 V	Positive	Surface Mount	SOT-223-5	100 çA	Adjustable	TO-261-5 TO-261AB	Over Temperature	9 V	55 dB	500 mA	55 µA	1	Enable	125 °C	-40 °C	1.25 V
Texas Instruments LP38693EVAL											500 mA							9 V	1.25 V	2.7 V	10 V	LP38693	Fully Populated	Positive Adjustable	Board(s)	1 - Single
Texas Instruments LP38693QSDX-5.0/NOPB	10 V	Positive	Surface Mount	6-WSON (3x3)	100 çA			Over Temperature		55 dB	500 mA	55 µA	1	Enable	125 °C	-40 °C	5 V										0.45 V	AEC-Q100	1.81 mOhm	Automotive
Texas Instruments LP38693MP-5.0/NOPB	10 V	Positive	Surface Mount	SOT-223-5	100 çA		TO-261-5 TO-261AB	Over Temperature		55 dB	500 mA	55 µA	1	Enable	125 °C	-40 °C	5 V										0.45 V		1.81 mOhm
Texas Instruments LP38693MPX-5.0/NOPB	10 V	Positive	Surface Mount	SOT-223-5	100 çA		TO-261-5 TO-261AB	Over Temperature		55 dB	500 mA	55 µA	1	Enable	125 °C	-40 °C	5 V										0.45 V		1.81 mOhm

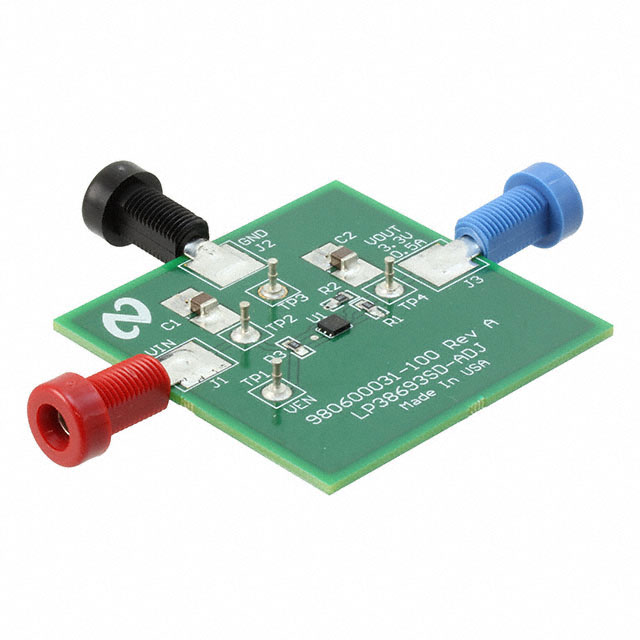

Texas Instruments LP38693-ADJEV											500 mA							9 V	1.25 V	2.7 V	10 V	LP38693	Fully Populated	Positive Adjustable	Board(s)	1 - Single
Texas Instruments LP38693SD-3.3	10 V	Positive	Surface Mount	6-WSON (3x3)	100 çA			Over Temperature		55 dB	500 mA	55 µA	1	Enable	125 °C	-40 °C	3.3 V										0.55 V	AEC-Q100	1.81 mOhm	Automotive
Texas Instruments LP38693SD-2.5	10 V	Positive	Surface Mount	6-WSON (3x3)	100 çA			Over Temperature		55 dB	500 mA	55 µA	1	Enable	125 °C	-40 °C	2.5 V										0.73 V	AEC-Q100	1.81 mOhm	Automotive
Texas Instruments LP38693MP-1.8	10 V	Positive	Surface Mount	SOT-223-5	100 çA		TO-261-5 TO-261AB	Over Temperature		55 dB	500 mA	55 µA	1	Enable	125 °C	-40 °C	1.8 V												1.81 mOhm

Catalog

Automotive 500-mA, 10-V, adjustable low-dropout voltage regulator with enable

Key Features

• Wide Input Voltage Range: 2.7 V to 10 VAll WSON Options are Available as AEC-Q100 Grade 1Output Voltage Range: 1.25 V to 9 V2% Adjust (ADJ) Pin Voltage Accuracy (25°C)Low Dropout Voltage: 250 mV at 500 mA(Typical, 5-V Out)Precision (Trimmed) Bandgap ReferenceEnsured Specs for –40°C to 125°C1-µA Off-State Quiescent CurrentThermal Overload ProtectionFoldback Current LimitingGround (GND) Pin Curent: 55 µA (Typical) at Full LoadEnable (EN) Pin (LP38693-ADJ)Wide Input Voltage Range: 2.7 V to 10 VAll WSON Options are Available as AEC-Q100 Grade 1Output Voltage Range: 1.25 V to 9 V2% Adjust (ADJ) Pin Voltage Accuracy (25°C)Low Dropout Voltage: 250 mV at 500 mA(Typical, 5-V Out)Precision (Trimmed) Bandgap ReferenceEnsured Specs for –40°C to 125°C1-µA Off-State Quiescent CurrentThermal Overload ProtectionFoldback Current LimitingGround (GND) Pin Curent: 55 µA (Typical) at Full LoadEnable (EN) Pin (LP38693-ADJ)

Description

The LP3869x low-dropout CMOS linear regulators provide tight output tolerance (2% typical), extremely low dropout voltage (250 mV at 500-mA load current, VOUT= 5 V), and excellent AC performance using ultralow equivalent series resistance (ESR) ceramic output capacitors. The low thermal resistance of the WSON, SOT-223, and TO-252 packages allow use of the full operating current even in high ambient temperature environments. The use of a PMOS power transistor means that no DC base-drive current is required to bias it, thus allowing ground pin current to remain below 100 µA regardless of load current, input voltage, or operating temperature. The LP3869x low-dropout CMOS linear regulators provide tight output tolerance (2% typical), extremely low dropout voltage (250 mV at 500-mA load current, VOUT= 5 V), and excellent AC performance using ultralow equivalent series resistance (ESR) ceramic output capacitors. The low thermal resistance of the WSON, SOT-223, and TO-252 packages allow use of the full operating current even in high ambient temperature environments. The use of a PMOS power transistor means that no DC base-drive current is required to bias it, thus allowing ground pin current to remain below 100 µA regardless of load current, input voltage, or operating temperature.
