7961A Series
Manufacturer: Belden Inc.
Beta
⌘K

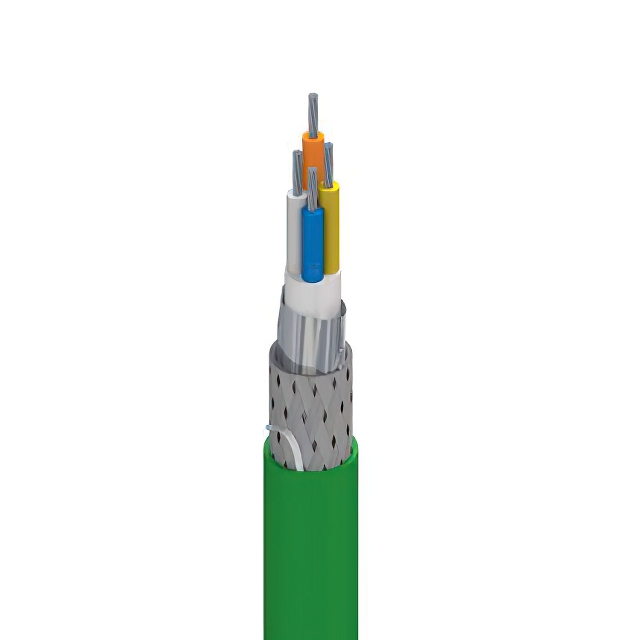

CABLE CAT5E 4COND 22AWG
| Part | Shield Material | Shield Coverage | Number of Conductors | Usage | Conductor Insulation | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Features | Jacket Color | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Ratings | Shield Type | Jacket (Insulation) Material | Cable Type | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | 4 | Industrial Network | Polyolefin | PO | 7 | 32 AWG | Flame Retardant Oil Resistant Rip Cord UV Resistant | Green | 304.8 m | 1000 ft | 0.272 in | 6.91 mm | Copper Tinned | UL Style 20626 | Braid Foil | Poly-Vinyl Chloride (PVC) | Multi-Pair Cat5e | 80 °C | -40 C | 22 AWG | 300 VDC |
