M80-485 Series

Catalog

10+10 POS. FEMALE DIL 22AWG CABLE CONN. KIT, EXTENDED WALL, JACKSCREWS ROHS COMPLIANT: YES

Part	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Features	Cable Termination	Pitch [x]	Pitch [x]	Contact Type	Color	Mounting Type	Number of Positions	Connector Type	Wire Gauge	Row Spacing	Row Spacing	Wire Type
Harwin Inc. M80-4852042	Galvanized Gold	0.3 Ám	11.8 Áin	2	Jackscrews Polarizing Key Potting Wall	Crimp	0.079 in	2 mm	Female Socket	Black	Free Hanging (In-Line)	20	Receptacle	22 AWG	2 mm	0.079 in	Discrete
Harwin Inc. M80-4852642	Galvanized Gold	0.3 Ám	11.8 Áin	2	Jackscrews Polarizing Key Potting Wall	Crimp	0.079 in	2 mm	Female Socket	Black	Free Hanging (In-Line)	26	Receptacle	22 AWG	2 mm	0.079 in	Discrete
Harwin Inc. M80-4854242	Galvanized Gold	0.3 Ám	11.8 Áin	2	Jackscrews Polarizing Key Potting Wall	Crimp	0.079 in	2 mm	Female Socket	Black	Free Hanging (In-Line)	42	Receptacle	22 AWG	2 mm	0.079 in	Discrete
Harwin Inc. M80-4851242	Galvanized Gold	0.3 Ám	11.8 Áin	2	Jackscrews Polarizing Key Potting Wall	Crimp	0.079 in	2 mm	Female Socket	Black	Free Hanging (In-Line)	12	Receptacle	22 AWG	2 mm	0.079 in	Discrete
Harwin Inc. M80-4851042	Galvanized Gold	0.3 Ám	11.8 Áin	2	Jackscrews Polarizing Key Potting Wall	Crimp	0.079 in	2 mm	Female Socket	Black	Free Hanging (In-Line)	10	Receptacle	22 AWG	2 mm	0.079 in	Discrete
Harwin Inc. M80-4851805	Galvanized Gold	0.3 Ám	11.8 Áin	2	Jackscrews Polarizing Key Potting Wall	Crimp	0.079 in	2 mm	Female Socket	Black	Free Hanging (In-Line)	18	Receptacle	22 AWG	2 mm	0.079 in	Discrete

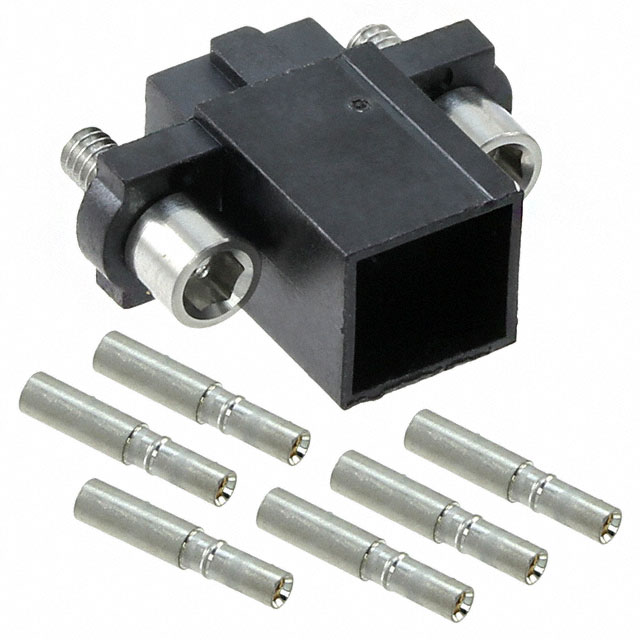

Harwin Inc. M80-4850642	Galvanized Gold	0.3 Ám	11.8 Áin	2	Jackscrews Polarizing Key Potting Wall	Crimp	0.079 in	2 mm	Female Socket	Black	Free Hanging (In-Line)	6	Receptacle	22 AWG	2 mm	0.079 in	Discrete
Harwin Inc. M80-4854205	Galvanized Gold	0.3 Ám	11.8 Áin	2	Jackscrews Polarizing Key Potting Wall	Crimp	0.079 in	2 mm	Female Socket	Black	Free Hanging (In-Line)	42	Receptacle	22 AWG	2 mm	0.079 in	Discrete
Harwin Inc. M80-4852005A	Galvanized Gold	0.3 Ám	11.8 Áin	2	Jackscrews Polarizing Key Potting Wall	Crimp	0.079 in	2 mm	Female Socket	Black	Free Hanging (In-Line)	20	Receptacle	22 AWG	2 mm	0.079 in	Discrete
Harwin Inc. M80-4851442	Galvanized Gold	0.3 Ám	11.8 Áin	2	Jackscrews Polarizing Key Potting Wall	Crimp	0.079 in	2 mm	Female Socket	Black	Free Hanging (In-Line)	14	Receptacle	22 AWG	2 mm	0.079 in	Discrete
