043810 Series

Manufacturer: Molex

Catalog

CONN HEADER R/A 10POS 4.2MM

Part	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Termination	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Style	Pitch - Mating	Pitch - Mating	Insulation Material	Number of Positions	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Applications	Contact Type	Material Flammability Rating	Contact Shape	Number of Rows	Number of Positions Loaded	Insulation Color	Connector Type	Shrouding	Insulation Height	Insulation Height

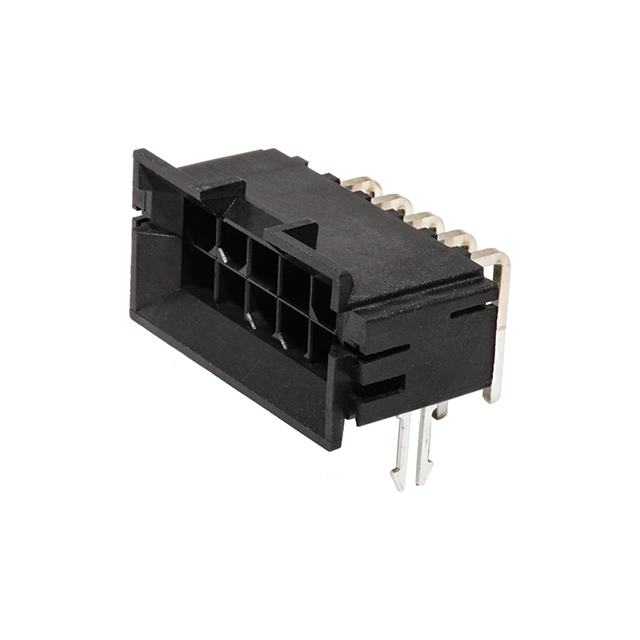

Molex 0438100015	4.2 mm	0.165 in	Through Hole Right Angle	Solder	Tin	3.12 mm	0.123 in	Blind Mating Board Lock	2.54 µm	100 µin	Brass	Board to Board Cable	4.2 mm	0.165 in	Glass Filled Nylon 4/6 Polyamide (PA46)	10	Latch Holder	30 Áin	0.76 Ám	Gold	General Purpose Industrial Medical Telecommunications	Male Pin	UL94 V-0	Square	2	All	Black	Header	Shrouded - 4 Wall	0.591 in	15 mm
Molex 0438100105	4.2 mm	0.165 in	Through Hole Right Angle	Solder	Tin	3.12 mm	0.123 in	Blind Mating Board Lock	2.54 µm	100 µin	Brass	Board to Board Cable	4.2 mm	0.165 in	Glass Filled Nylon 4/6 Polyamide (PA46)	14	Latch Holder	30 Áin	0.76 Ám	Gold	General Purpose Industrial Medical Telecommunications	Male Pin	UL94 V-0	Square	2	All	Black	Header	Shrouded - 4 Wall	0.591 in	15 mm

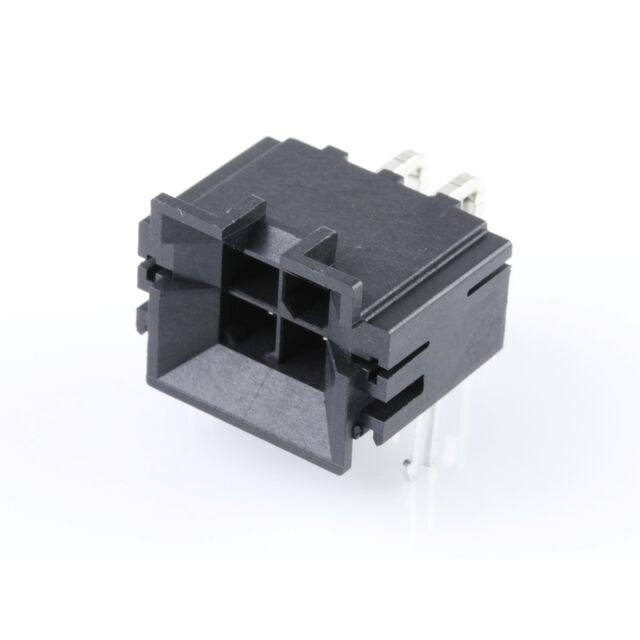

Molex 0438100045	4.2 mm	0.165 in	Through Hole Right Angle	Solder	Tin	3.12 mm	0.123 in	Blind Mating Board Lock	2.54 µm	100 µin	Brass	Board to Board Cable	4.2 mm	0.165 in	Glass Filled Nylon 4/6 Polyamide (PA46)	4	Latch Holder	100 çin	2.54 çm		General Purpose Industrial Medical Telecommunications	Male Pin	UL94 V-0	Square	2	All	Black	Header	Shrouded - 4 Wall	0.591 in	15 mm
Molex 0438100220	4.2 mm	0.165 in	Through Hole Right Angle	Solder	Tin	3.12 mm	0.123 in	Blind Mating	2.54 µm	100 µin	Brass	Board to Board Cable	4.2 mm	0.165 in	Glass Filled Nylon 4/6 Polyamide (PA46)	24	Latch Holder	30 Áin	0.76 Ám	Gold	General Purpose Industrial Medical Telecommunications	Male Pin	UL94 V-0	Square	2	All	Black	Header	Shrouded - 4 Wall	0.591 in	15 mm
Molex 0438100369	4.2 mm	0.165 in	Through Hole Right Angle	Solder	Tin	3.12 mm	0.123 in	Blind Mating Board Lock	2.54 µm	100 µin	Brass	Board to Board Cable	4.2 mm	0.165 in	Glass Filled Nylon 4/6 Polyamide (PA46)	14	Latch Holder	30 Áin	0.76 Ám	Gold	General Purpose Industrial Medical Telecommunications	Male Pin	UL94 V-0	Square	2	All	Black	Header	Shrouded - 4 Wall	0.591 in	15 mm
Molex 0438100342	4.2 mm	0.165 in	Through Hole Right Angle	Solder	Tin	3.12 mm	0.123 in	Blind Mating	2.54 µm	100 µin	Brass	Board to Board Cable	4.2 mm	0.165 in	Glass Filled Nylon 4/6 Polyamide (PA46)	4	Latch Holder	30 Áin	0.76 Ám	Gold	General Purpose Industrial Medical Telecommunications	Male Pin	UL94 V-0	Square	2	All	Black	Header	Shrouded - 4 Wall	0.591 in	15 mm
Molex 0438100008	4.2 mm	0.165 in	Through Hole Right Angle	Solder	Tin	3.12 mm	0.123 in	Blind Mating Board Lock	2.54 µm	100 µin	Brass	Board to Board Cable	4.2 mm	0.165 in	Glass Filled Nylon 4/6 Polyamide (PA46)	18	Latch Holder	100 çin	2.54 çm		General Purpose Industrial Medical Telecommunications	Male Pin	UL94 V-0	Square	2	All	Black	Header	Shrouded - 4 Wall	0.591 in	15 mm
Molex 0438100057	4.2 mm	0.165 in	Through Hole Right Angle	Solder	Tin	3.12 mm	0.123 in	Blind Mating Board Lock	2.54 µm	100 µin	Brass	Board to Board Cable	4.2 mm	0.165 in	Glass Filled Nylon 4/6 Polyamide (PA46)	6	Latch Holder	30 Áin	0.76 Ám	Gold	General Purpose Industrial Medical Telecommunications	Male Pin	UL94 V-0	Square	2	All	Black	Header	Shrouded - 4 Wall	0.591 in	15 mm
Molex 0438100066	4.2 mm	0.165 in	Through Hole Right Angle	Solder	Tin	3.12 mm	0.123 in	Blind Mating Board Lock	2.54 µm	100 µin	Brass	Board to Board Cable	4.2 mm	0.165 in	Glass Filled Nylon 4/6 Polyamide (PA46)	24	Latch Holder	30 Áin	0.76 Ám	Gold	General Purpose Industrial Medical Telecommunications	Male Pin	UL94 V-0	Square	2	All	Black	Header	Shrouded - 4 Wall	0.591 in	15 mm
Molex 0438100089	4.2 mm	0.165 in	Through Hole Right Angle	Solder	Tin	3.12 mm	0.123 in	Blind Mating Board Lock	2.54 µm	100 µin	Brass	Board to Board Cable	4.2 mm	0.165 in	Glass Filled Nylon 4/6 Polyamide (PA46)	4	Latch Holder	100 çin	2.54 çm		General Purpose Industrial Medical Telecommunications	Male Pin	UL94 V-0	Square	2	All	Black	Header	Shrouded - 4 Wall	0.591 in	15 mm
