LM741-MIL Series

Military-grade, single, 44-V, 1-MHz operational amplifier

Catalog

Military-grade, single, 44-V, 1-MHz operational amplifier

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply Span (Max) [Max]	Package / Case	Voltage - Supply Span (Min) [Min]	Current - Supply	Mounting Type	Amplifier Type	Current - Output / Channel	Number of Circuits	Gain Bandwidth Product	Current - Input Bias	Voltage - Input Offset	Supplier Device Package	Package / Case	Package / Case
Texas Instruments LM741H/NOPB	-55 °C	125 °C	44 V	TO-99-8 Metal Can	10 V	1.7 mA	Through Hole	General Purpose	25 mA	1	1.5 MHz	80 nA	1 mV	TO-99-8

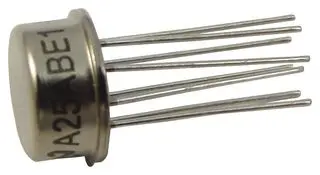

Texas Instruments LM741CH/NOPB	0 °C	70 °C	36 V	TO-99-8 Metal Can	10 V	1.7 mA	Through Hole	General Purpose	25 mA	1	1.5 MHz	80 nA	2 mV	TO-99-8
Texas Instruments LM741CN/NOPB	0 °C	70 °C	36 V	8-DIP	10 V	1.7 mA	Through Hole	General Purpose	25 mA	1	1.5 MHz	80 nA	2 mV	8-PDIP	0.3 in	7.62 mm
Texas Instruments LM741H	-55 °C	125 °C	44 V	TO-99-8 Metal Can	10 V	1.7 mA	Through Hole	General Purpose		1	1.5 MHz	80 nA	1 mV	TO-99-8
Texas Instruments LM741CH	0 °C	70 °C	36 V	TO-99-8 Metal Can	10 V	1.7 mA	Through Hole	General Purpose		1	1.5 MHz	80 nA	2 mV	TO-99-8
Texas Instruments LM741J	-55 °C	125 °C	44 V	8-CDIP	10 V	1.7 mA	Through Hole	General Purpose	25 mA	1	1.5 MHz	80 nA	1 mV	8-CDIP	0.3 in	7.62 mm

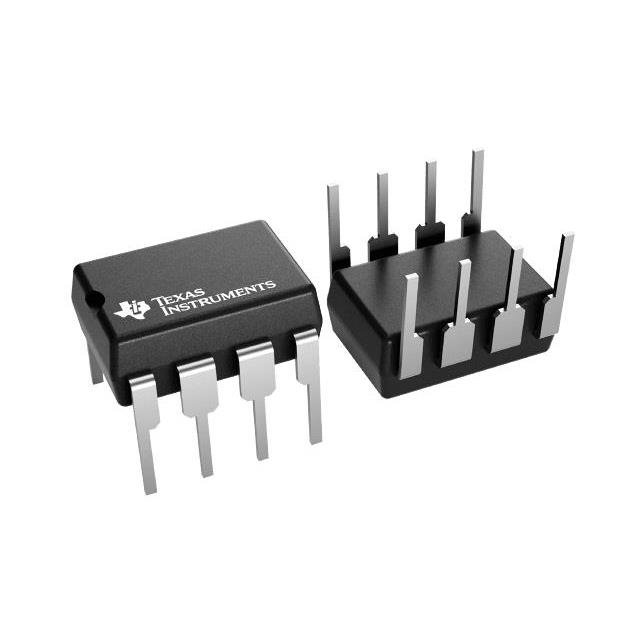

Texas Instruments LM741C-MWC	-40 °C	85 °C	36 V	Die	10 V	1.7 mA	Surface Mount	General Purpose	25 mA	1	1.5 MHz	80 nA	2 mV	Wafersale

Catalog

Military-grade, single, 44-V, 1-MHz operational amplifier

Key Features

• Overload Protection on the Input and OutputNo Latch-Up When the Common-Mode Range is ExceededOverload Protection on the Input and OutputNo Latch-Up When the Common-Mode Range is Exceeded

Description

The LM741-MIL is a general-purpose operational amplifier which features improved performance over industry standards such as the LM709. It is a direct, plug-in replacement for the 709C, LM201, MC1439, and 748 in most applications. The amplifier offers many features which make applications nearly foolproof such as overload protection on the input and output, no latch-up when the common-mode range is exceeded, and freedom from oscillations. The LM741-MIL is a general-purpose operational amplifier which features improved performance over industry standards such as the LM709. It is a direct, plug-in replacement for the 709C, LM201, MC1439, and 748 in most applications. The amplifier offers many features which make applications nearly foolproof such as overload protection on the input and output, no latch-up when the common-mode range is exceeded, and freedom from oscillations.
