DRV8428E Series

35-V, 1-A bipolar stepper or dual brushed motor driver with integrated current sensing

Catalog

35-V, 1-A bipolar stepper or dual brushed motor driver with integrated current sensing

Part	Technology	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Motor Type - AC, DC	Motor Type - Stepper	Mounting Type	Package / Case	Current - Output	Interface	Function	Output Configuration	Step Resolution	Package / Case
Texas Instruments DRV8428ERTER	Power MOSFET	16-WQFN (3x3)	4.2 V	33 V	General Purpose	-40 °C	125 °C	Brushed DC	Bipolar	Surface Mount	16-WFQFN Exposed Pad	1 A	PWM	Driver - Fully Integrated Control and Power Stage	Half Bridge (2)

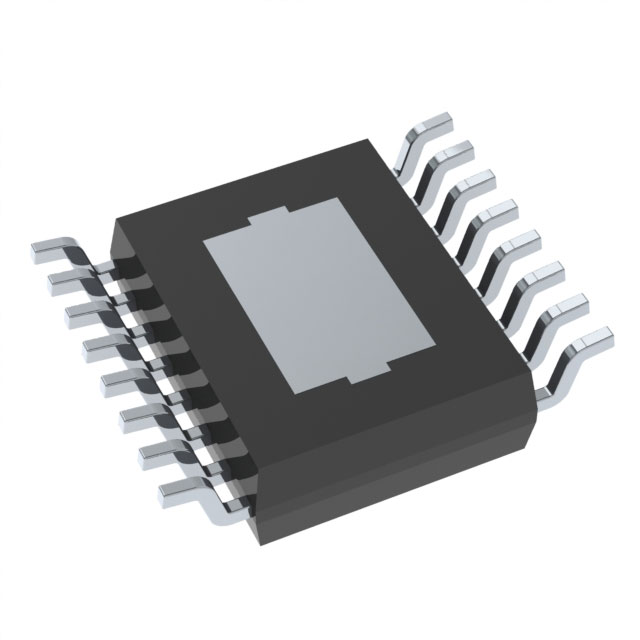

Texas Instruments DRV8428PWPR	Power MOSFET	16-HTSSOP	4.2 V	33 V	General Purpose	-40 °C	125 °C	Brushed DC Brushless DC (BLDC)	Bipolar	Surface Mount	16-PowerTSSOP	1 A	Step/Direction	Driver - Fully Integrated Control and Power Stage	Half Bridge (2)	>256	0.173 in 4.4 mm Width
Texas Instruments DRV8428PPWPR	Power MOSFET	16-HTSSOP	4.2 V	33 V	General Purpose	-40 °C	125 °C	Brushed DC	Bipolar	Surface Mount	16-PowerTSSOP	1 A	PWM	Driver - Fully Integrated Control and Power Stage	Half Bridge (2)		0.173 in 4.4 mm Width
Texas Instruments DRV8428RTER	Power MOSFET	16-WQFN (3x3)	4.2 V	33 V	General Purpose	-40 °C	125 °C	Brushed DC Brushless DC (BLDC)	Bipolar	Surface Mount	16-WFQFN Exposed Pad	1 A	Step/Direction	Driver - Fully Integrated Control and Power Stage	Half Bridge (2)	>256
Texas Instruments DRV8428EPWPR	Power MOSFET	16-HTSSOP	4.2 V	33 V	General Purpose	-40 °C	125 °C	Brushed DC	Bipolar	Surface Mount	16-PowerTSSOP	1 A	PWM	Driver - Fully Integrated Control and Power Stage	Half Bridge (2)		0.173 in 4.4 mm Width
Texas Instruments DRV8428PRTER	Power MOSFET	16-WQFN (3x3)	4.2 V	33 V	General Purpose	-40 °C	125 °C	Brushed DC	Bipolar	Surface Mount	16-WFQFN Exposed Pad	1 A	PWM	Driver - Fully Integrated Control and Power Stage	Half Bridge (2)

Catalog

35-V, 1-A bipolar stepper or dual brushed motor driver with integrated current sensing

Key Features

• Dual H-bridge motor driverOne bipolar stepper motorDual bidirectional brushed-DC motorsFour unidirectional brushed-DC motorsIntegrated current sense functionalityNo sense resistors required±6% Full-scale current accuracy4.2-V to 33-V Operating supply voltage rangeMultiple control interface optionsPHASE/ENABLE (PH/EN)PWM (IN/IN)Smart tune, and mixed decay options1500 mΩ HS + LS RDS(ON)at 24 V, 25°CCurrent Capacity: 1.7-A peak, 0.7-A rmsConfigurable Off-Time PWM Chopping7, 16 or 32 µsSupports 1.8-V, 3.3-V, 5.0-V logic inputsLow-current sleep mode (2 µA)Spread spectrum clocking for low EMIInrush current limiting in brushed-DC applicationsSmall package and footprintProtection featuresVM undervoltage lockout (UVLO)Overcurrent protection (OCP)Thermal shutdown (OTSD)Dual H-bridge motor driverOne bipolar stepper motorDual bidirectional brushed-DC motorsFour unidirectional brushed-DC motorsIntegrated current sense functionalityNo sense resistors required±6% Full-scale current accuracy4.2-V to 33-V Operating supply voltage rangeMultiple control interface optionsPHASE/ENABLE (PH/EN)PWM (IN/IN)Smart tune, and mixed decay options1500 mΩ HS + LS RDS(ON)at 24 V, 25°CCurrent Capacity: 1.7-A peak, 0.7-A rmsConfigurable Off-Time PWM Chopping7, 16 or 32 µsSupports 1.8-V, 3.3-V, 5.0-V logic inputsLow-current sleep mode (2 µA)Spread spectrum clocking for low EMIInrush current limiting in brushed-DC applicationsSmall package and footprintProtection featuresVM undervoltage lockout (UVLO)Overcurrent protection (OCP)Thermal shutdown (OTSD)

Description

The DRV8428E/P devices are dual H-bridge motor drivers for a wide variety of industrial applications. The devices can be used for driving two DC motors, or a bipolar stepper motor. The DRV8428E/P are capable of driving up to 1-A full scale or 0.7-A rms output current (dependent on PCB design). The output stage of the driver consists of N-channel power MOSFETs configured as two full H-bridges, current sensing and regulation, and protection circuitry. The integrated current sensing uses an internal current mirror architecture, removing the need for a large power shunt resistor, saving board area and reducing system cost. A low-power sleep mode is provided to achieve ultra- low quiescent current draw by shutting down most of the internal circuitry. Internal protection features are provided for supply undervoltage lockout (UVLO), output overcurrent (OCP), and device overtemperature (TSD). The DRV8428E/P devices are dual H-bridge motor drivers for a wide variety of industrial applications. The devices can be used for driving two DC motors, or a bipolar stepper motor. The DRV8428E/P are capable of driving up to 1-A full scale or 0.7-A rms output current (dependent on PCB design). The output stage of the driver consists of N-channel power MOSFETs configured as two full H-bridges, current sensing and regulation, and protection circuitry. The integrated current sensing uses an internal current mirror architecture, removing the need for a large power shunt resistor, saving board area and reducing system cost. A low-power sleep mode is provided to achieve ultra- low quiescent current draw by shutting down most of the internal circuitry. Internal protection features are provided for supply undervoltage lockout (UVLO), output overcurrent (OCP), and device overtemperature (TSD).
