3404.0120 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

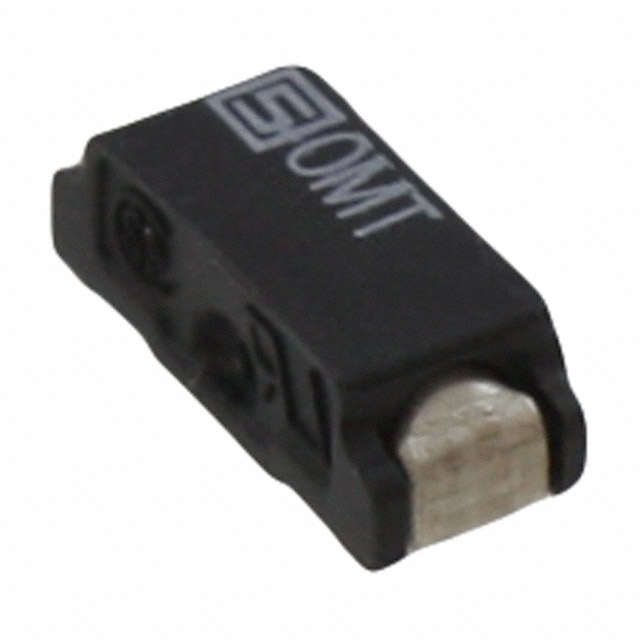

FUSE BRD MNT 4A 125VAC/VDC 2SMD
| Part | Melting I²t | Response Time | Current Rating (Amps) | Approval Agency | Package / Case | Fuse Type | Voltage Rating - DC | Voltage Rating - AC | Breaking Capacity @ Rated Voltage | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 12.3 | Slow Blow | 4 A | cULus | 2-SMD J-Lead | Board Mount (Cartridge Style Excluded) | 125 VDC | 125 V | 100 A | 0.122 in | 0.102 in | 2.6 mm | 7.4 mm | 0.291 in | 3.1 mm | 85 °C | -40 C | Surface Mount |
SCHURTER Inc. | 12.3 | Slow Blow | 4 A | cULus | 2-SMD J-Lead | Board Mount (Cartridge Style Excluded) | 125 VDC | 125 V | 100 A | 0.122 in | 0.102 in | 2.6 mm | 7.4 mm | 0.291 in | 3.1 mm | 85 °C | -40 C | Surface Mount |
