2271144 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

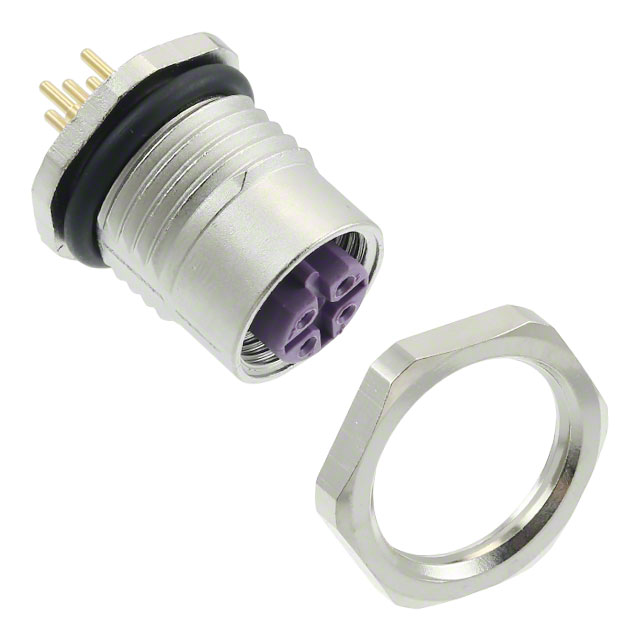

M12 FEMALE PNL.B CODE.5P.PCB TYPE.(AU)
| Part | Ingress Protection | Applications | Mounting Type | Shell Size - Insert | Mounting Feature | Shell Material | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Color | Current Rating (Amps) | Shell Finish | Primary Material | Orientation | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | IP68 - Dust Tight Waterproof | Automotive Industrial | Panel Mount Through Hole | M12-5 | Bulkhead | Brass and Zinc Die Cast | 85 °C | -40 °C | Receptacle Female Sockets | Gold | 0.5 µm | 19.7 µin | 125 VAC | Silver | 4 A | Nickel | Metal | B | Solder |
TE Connectivity Raychem Cable Protection |
