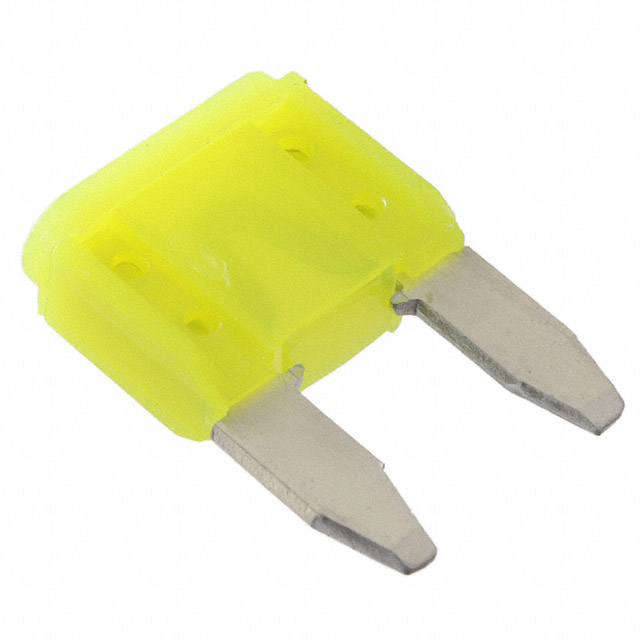

Fuse - Mini 32VDC 20A 500 pc
Description
AI
This 20 A MINI® 32V automotive blade fuse performs reliably in adverse environments and at extreme temperatures despite its miniature design and light weight.
Beta
⌘K
Fuse - Mini 32VDC 20A 500 pc
Fuse - Mini 32VDC 20A 500 pc
| Part | DC Cold Resistance | Approval Agency | Melting I˛t | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Breaking Capacity @ Rated Voltage | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Mounting Type | Response Time | Melting I²t | Fuse Type | Color | Package / Case | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 0.00321 Ohms | SAE UL | 380 | 32 V | 125 °C | -40 C | 1 kA | 8.8 mm | 0.346 in | 0.15 " | 10.9 mm | 0.429 " | 3.8 mm | Requires Holder | Fast Blow | 380 I²t | Automotive | Yellow | Blade Miniature | 20 A |
