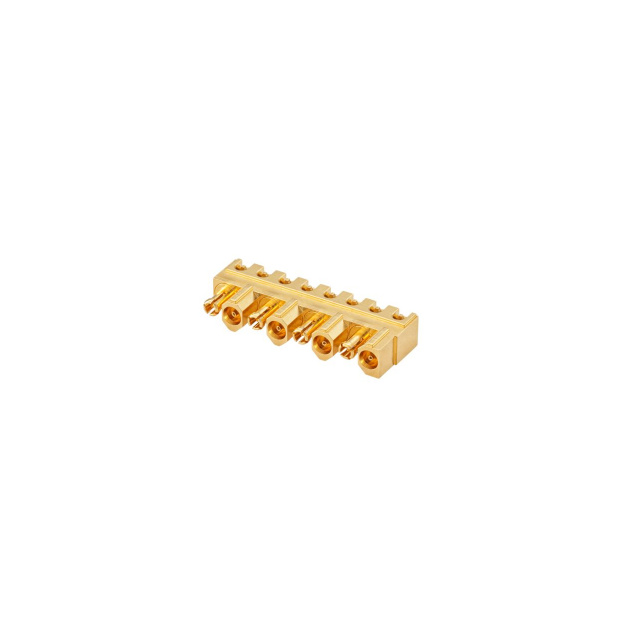

23C25D Series
Manufacturer: Rosenberger
Beta
⌘K
MINI COAX MULTIPORT 8 CHANNEL AN
| Part | Voltage Rating | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Body Finish | Mating Cycles | Body Material | Number of Ports | Housing Color | Contact Termination | Frequency - Max [Max] | Center Contact Material | Connector Style | Fastening Type | Connector Type | Shield Termination | Mounting Type | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 500 V | Gold | 125 °C | -40 C | Polytetrafluoroethylene (PTFE) | Gold | 500 | Beryllium Copper Brass | 8 | Gold | Solder | 40 GHz | Beryllium Copper | Miniature Coaxial | Snap-On | Jack Female Socket (4) Plug Male Pin (4) | Solder | Right Angle Surface Mount | 50 Ohms |
