2825274 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

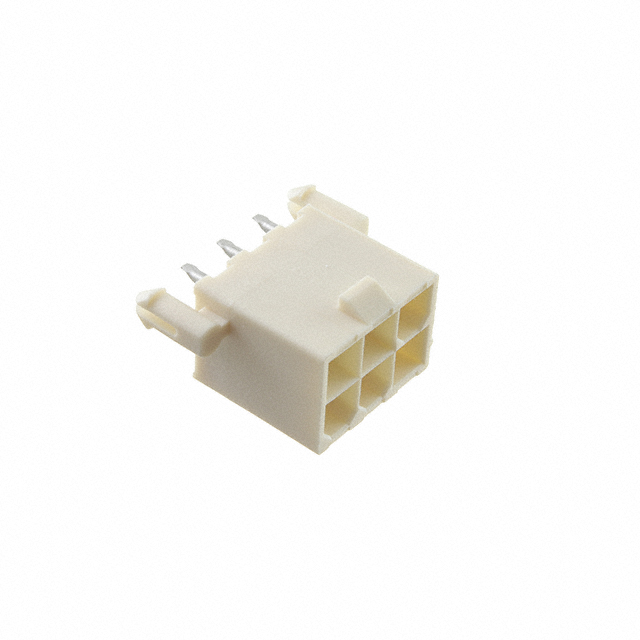

6P VAL-U-LOK HCS VRTHDR W/PGS GW
| Part | Features | Contact Finish - Post | Row Spacing - Mating | Row Spacing - Mating | Contact Type | Voltage Rating | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Insulation Height | Insulation Height | Termination | Insulation Material | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Connector Type | Number of Positions | Style | Insulation Color | Mounting Type | Number of Positions Loaded | Applications | Contact Length - Post | Contact Length - Post | Fastening Type | Number of Rows | Material Flammability Rating | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Board Lock Glow Wire Compliant | Tin | 4.2 mm | 0.165 in | Male Pin | 600 V | 4.2 mm | 0.165 in | 13 A | 12.8 mm | 0.504 in | Solder | Nylon Polyamide (PA) | Square | -40 °C | 105 ░C | Copper Alloy | Header | 6 | Board to Cable/Wire | Natural | Through Hole | All | Automotive General Purpose Industrial Lighting Medical | 3.5 mm | 0.138 in | Locking Ramp | 2 | UL94 V-0 | Shrouded - 4 Wall |
