391-036 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 36POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Pitch	Pitch	Number of Positions	Mounting Type	Card Type	Number of Rows [custom]	Contact Material	Read Out	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Gender	Contact Type	Number of Positions/Bay/Row [custom]	Color	Termination	Termination Rows	Number of Rows	Number of Positions/Bay/Row	Features

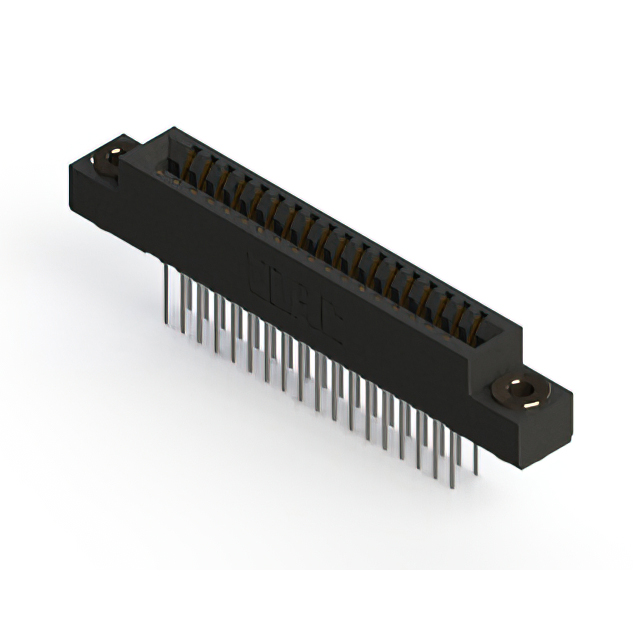

EDAC Inc. 391-036-522-203	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	0.25 Ám	10 Áin	Gold	0.1 "	2.54 mm	36	Through Hole	Non Specified - Dual Edge	2	Copper Alloy	Dual	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Female	Semi Bellows	18	Black	Solder
EDAC Inc. 391-036-522-103	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	0.25 Ám	10 Áin	Gold	0.1 "	2.54 mm	36	Through Hole	Non Specified - Single Edge		Copper Alloy	Single	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Female	Semi Bellows		Black	Solder	1	1	36
EDAC Inc. 391-036-556-207	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	0.25 Ám	10 Áin	Gold	0.1 "	2.54 mm	36	Through Hole	Non Specified - Dual Edge	2	Copper Alloy	Dual		Flush Mount M3 Threaded Insert Top Opening		Female	Semi Bellows	18	Black	Solder				Card Extender
EDAC Inc. 391-036-520-204	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	0.25 Ám	10 Áin	Gold	0.1 "	2.54 mm	36	Through Hole	Non Specified - Dual Edge	2	Copper Alloy	Dual	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	Female	Semi Bellows	18	Black	Solder

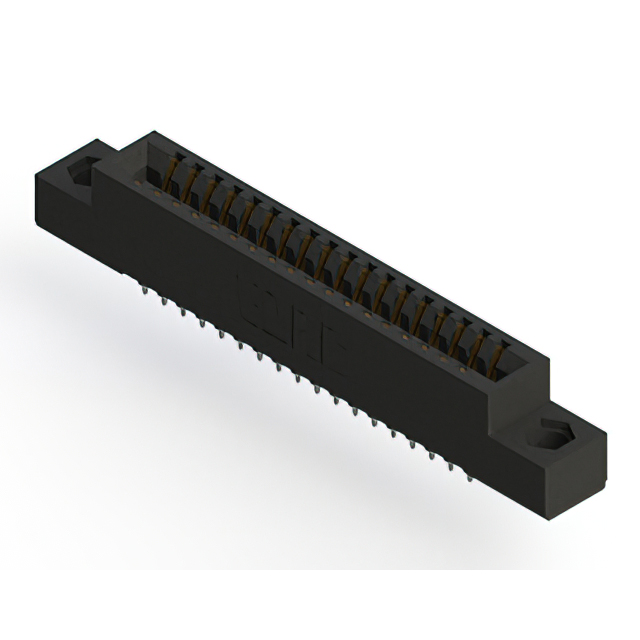

EDAC Inc. 391-036-524-204	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	0.25 Ám	10 Áin	Gold	0.1 "	2.54 mm	36	Through Hole	Non Specified - Dual Edge	2	Copper Alloy	Dual	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	Female	Semi Bellows	18	Black	Solder
EDAC Inc. 391-036-524-107	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	0.25 Ám	10 Áin	Gold	0.1 "	2.54 mm	36	Through Hole	Non Specified - Single Edge		Copper Alloy	Single		Flush Mount M3 Threaded Insert Top Opening		Female	Semi Bellows		Black	Solder	1	1	36

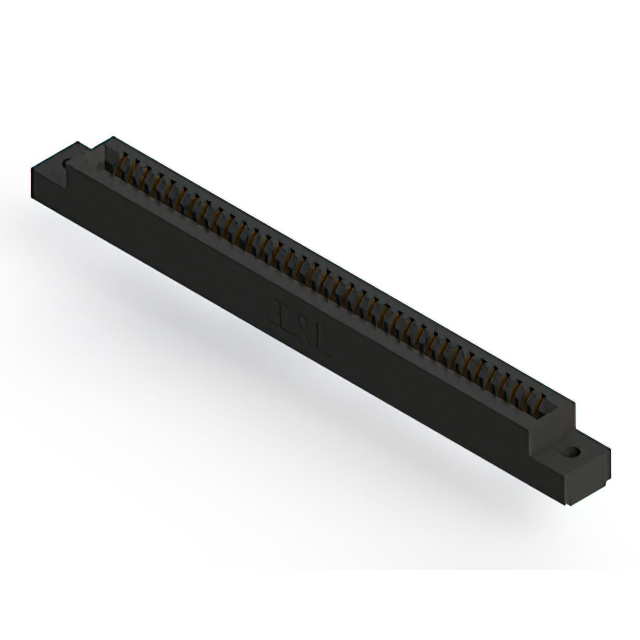

EDAC Inc. 391-036-520-102	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	0.25 Ám	10 Áin	Gold	0.1 "	2.54 mm	36	Through Hole	Non Specified - Single Edge		Copper Alloy	Single	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Female	Semi Bellows		Black	Solder	1	1	36

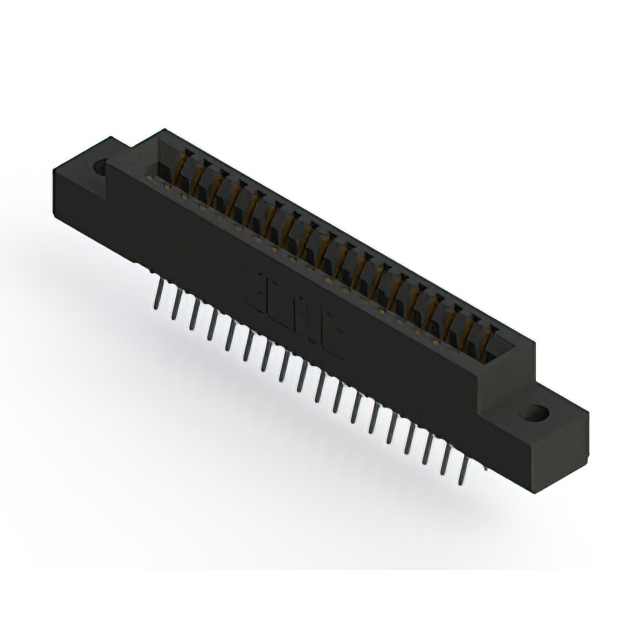

EDAC Inc. 391-036-556-202	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	0.25 Ám	10 Áin	Gold	0.1 "	2.54 mm	36	Board Edge Straddle Mount	Non Specified - Dual Edge	2	Copper Alloy	Dual	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Female	Semi Bellows	18	Black	Solder				Card Extender
EDAC Inc. 391-036-521-108	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	0.25 Ám	10 Áin	Gold	0.1 "	2.54 mm	36	Through Hole	Non Specified - Single Edge		Copper Alloy	Single		4-40 Flush Mount Threaded Insert Top Opening		Female	Semi Bellows		Black	Solder	1	1	36
EDAC Inc. 391-036-521-103	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	0.25 Ám	10 Áin	Gold	0.1 "	2.54 mm	36	Through Hole	Non Specified - Single Edge		Copper Alloy	Single	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Female	Semi Bellows		Black	Solder	1	1	36
