M032 Series

Manufacturer: Nuvoton Technology Corporation

Catalog

IC MCU 32BIT 512KB FLASH 64LQFP

Part	Core Size	Program Memory Size	Operating Temperature [Min]	Operating Temperature [Max]	Core Processor	Package / Case	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Program Memory Type	Number of I/O [custom]	Connectivity	Oscillator Type	Speed	Data Converters	Peripherals	RAM Size	Supplier Device Package	Mounting Type	RAM Size	Number of I/O	Board Type	Interconnect System	Platform	Type	Utilized IC / Part	Contents

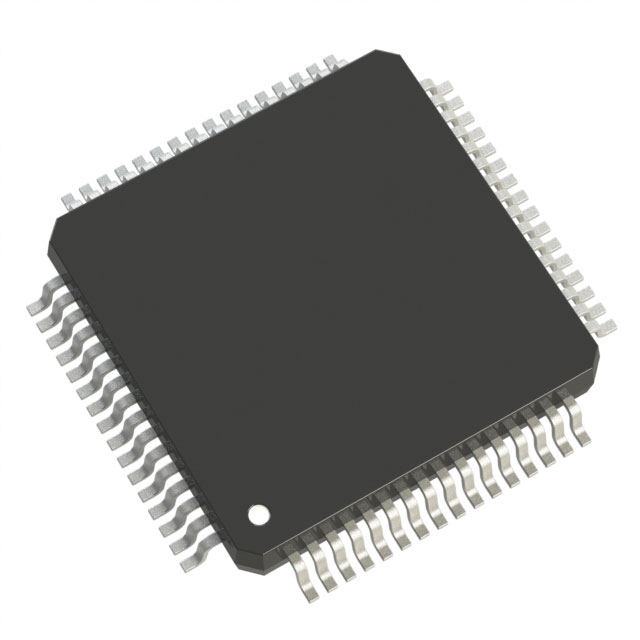

Nuvoton Technology Corporation M032SIAAE	32-Bit 32-Bit Single-Core	512 KB	-40 °C	105 °C	ARM® Cortex®-M0	64-LQFP	2 V	3.6 V	FLASH	51	EBI/EMI I2C SPI UART/USART USB	Internal	72 MHz	A/D 16x12b SAR	Brown-out Detect/Reset LVD POR PWM WDT	96 K	64-LQFP (7x7)	Surface Mount
Nuvoton Technology Corporation M032TC1AE	32-Bit 32-Bit Single-Core	32 KB	-40 °C	105 °C	ARM® Cortex®-M0		1.8 V	3.6 V	FLASH		EBI/EMI I2C SPI UART/USART USB	Internal	48 MHz	A/D 10x12b SAR	Brown-out Detect/Reset LVD POR PWM WDT		33-QFN (4x4)	Surface Mount	4K x 8	23

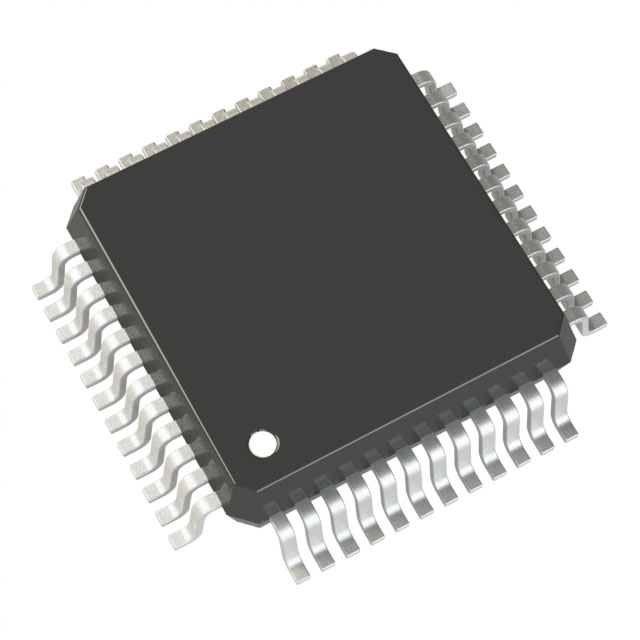

Nuvoton Technology Corporation M032LE3AE	32-Bit 32-Bit Single-Core	128 KB	-40 °C	105 °C	ARM® Cortex®-M0	48-LQFP	1.8 V	3.6 V	FLASH	38	EBI/EMI I2C SPI UART/USART USB	Internal	48 MHz	A/D 12x12b SAR	Brown-out Detect/Reset LVD POR PWM WDT	16 K	48-LQFP (7x7)	Surface Mount
Nuvoton Technology Corporation M032KG8AE	32-Bit	256 KB	-40 °C	105 °C	ARM® Cortex®-M0	128-LQFP	1.8 V	3.6 V	FLASH		EBI/EMI I2C SPI UART/USART USB	Internal	48 MHz	A/D 7x12b SAR	Brown-out Detect/Reset I2S LVD POR PWM WDT	64 K	128-LQFP (14x14)	Surface Mount		107
Nuvoton Technology Corporation M032TD2AE	32-Bit 32-Bit Single-Core	64 KB	-40 °C	105 °C	ARM® Cortex®-M0	32-VFQFN Exposed Pad	1.8 V	3.6 V	FLASH		SPI UART/USART USB	Internal	48 MHz	A/D 10x12b SAR	Brown-out Detect/Reset LVD POR WDT	8 K	33-QFN (4x4)	Surface Mount		23
Nuvoton Technology Corporation M032LG8AE	32-Bit 32-Bit Single-Core	256 KB	-40 °C	105 °C	ARM® Cortex®-M0	48-LQFP	2 V	3.6 V	FLASH	38	EBI/EMI I2C SPI UART/USART USB	Internal	72 MHz	A/D 12x12b SAR	Brown-out Detect/Reset LVD POR PWM WDT	64 K	48-LQFP (7x7)	Surface Mount

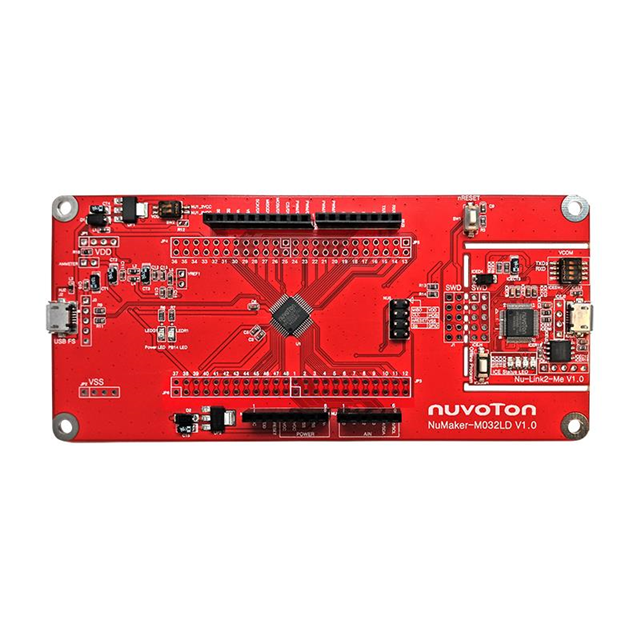

Nuvoton Technology Corporation NK-M032LD					ARM® Cortex®-M0													Fixed			Evaluation Platform	Arduino R3 Shield	NuMaker	MCU 32-Bit	M032LD2AE	Board(s)
Nuvoton Technology Corporation M032LD2AE	32-Bit 32-Bit Single-Core	64 KB	-40 °C	105 °C	ARM® Cortex®-M0	48-LQFP	1.8 V	3.6 V	FLASH	38	SPI UART/USART USB	Internal	48 MHz	A/D 12x12b SAR	Brown-out Detect/Reset LVD POR WDT	8 K	48-LQFP (7x7)	Surface Mount
Nuvoton Technology Corporation M032SE3AE	32-Bit 32-Bit Single-Core	128 KB	-40 °C	105 °C	ARM® Cortex®-M0	64-LQFP	1.8 V	3.6 V	FLASH	51	EBI/EMI I2C SPI UART/USART USB	Internal	48 MHz	A/D 16x12b SAR	Brown-out Detect/Reset LVD POR PWM WDT	16 K	64-LQFP (7x7)	Surface Mount

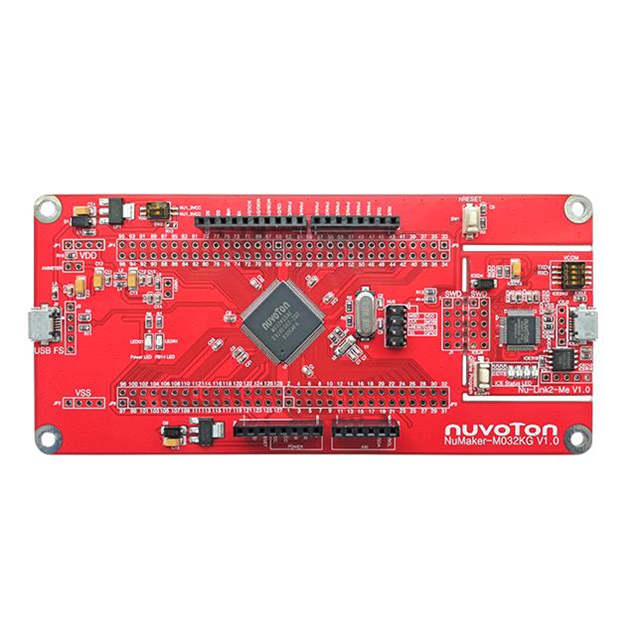

Nuvoton Technology Corporation NK-M032KG					ARM® Cortex®-M0													Fixed			Evaluation Platform	Arduino R3 Shield	NuMaker	MCU 32-Bit	M032KG8AE	Board(s)
