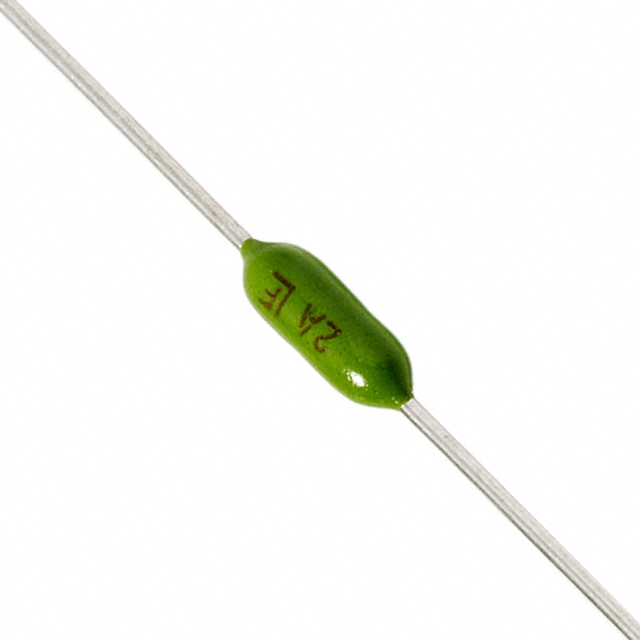

0472002 Series

PICO II TIME LAG FUSE 125V RoHS 2A

Catalog

PICO II TIME LAG FUSE 125V RoHS 2A

Part	DC Cold Resistance	Breaking Capacity @ Rated Voltage	Melting I²t	Voltage Rating - AC	Package / Case	Current Rating (Amps)	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Fuse Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Response Time	Voltage Rating - DC
LITTELFUSE 0472002.MRT1L	0.027 Ohms	50 A	4.2363	125 V	Axial	2 A	2.8 mm	7.11 mm	0.11 in	0.28 in	Board Mount (Cartridge Style Excluded)	-55 C	125 °C	Through Hole	Slow Blow	125 VDC
LITTELFUSE 0472002.NAT1L	0.027 Ohms	50 A	4.2363	125 V	Axial	2 A	2.8 mm	7.11 mm	0.11 in	0.28 in	Board Mount (Cartridge Style Excluded)	-55 C	125 °C	Through Hole	Slow Blow	125 VDC
LITTELFUSE 0472002.NRT1L	0.027 Ohms	50 A	4.2363	125 V	Axial	2 A	2.8 mm	7.11 mm	0.11 in	0.28 in	Board Mount (Cartridge Style Excluded)	-55 C	125 °C	Through Hole	Slow Blow	125 VDC
LITTELFUSE 0472002.MXL	0.027 Ohms	50 A	4.2363	125 V	Axial	2 A	2.8 mm	7.11 mm	0.11 in	0.28 in	Board Mount (Cartridge Style Excluded)	-55 C	125 °C	Through Hole	Slow Blow	125 VDC
LITTELFUSE 0472002.MAT1L	0.027 Ohms	50 A	4.2363	125 V	Axial	2 A	2.8 mm	7.11 mm	0.11 in	0.28 in	Board Mount (Cartridge Style Excluded)	-55 C	125 °C	Through Hole	Slow Blow	125 VDC

Catalog

PICO II TIME LAG FUSE 125V RoHS 2A

Description

The 472 Series PICO® II, 125V rated time-lag fuse is designed for applications that require moderate in-rush withstand and is in a space-saving subminiature package.
