19462100 Series
Manufacturer: HARTING
Beta
⌘K
HAN-ECO OUTDOOR 10A-HSE-M25
| Part | Connector Type | Thread Size | Operating Temperature [Max] | Operating Temperature [Min] | Size | Ingress Protection | Lock Location | Housing Color | Housing Material | Style | Size | Features | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

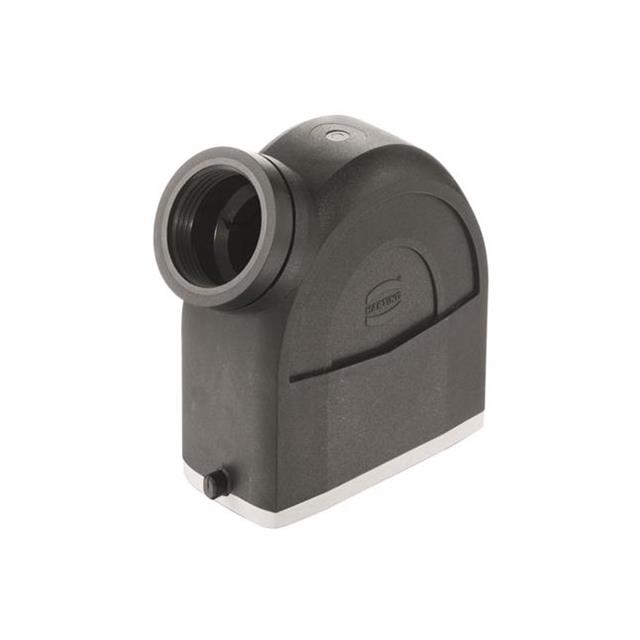

 HARTING | Hood | M25 | 125 °C | -40 C | A10 | IP65 - Dust Tight Water Resistant | Locking Clip (1) on Base Bottom | Black | Polyamide (PA) Nylon | Side Entry | ||||||||
 HARTING | Hood | M20 | 125 °C | -40 C | A10 | IP65 - Dust Tight Water Resistant | Locking Clip (1) on Base Bottom | Black | Polyamide (PA) Nylon | Top Entry | ||||||||

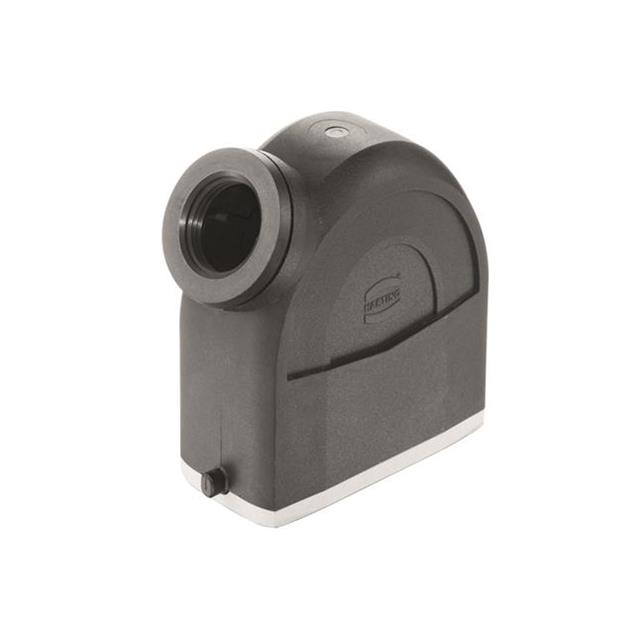

 HARTING | Hood | M20 | 125 °C | -40 C | A10 | IP65 - Dust Tight Water Resistant | Locking Clip (1) on Base Bottom | Black | Polyamide (PA) Nylon | Side Entry | ||||||||

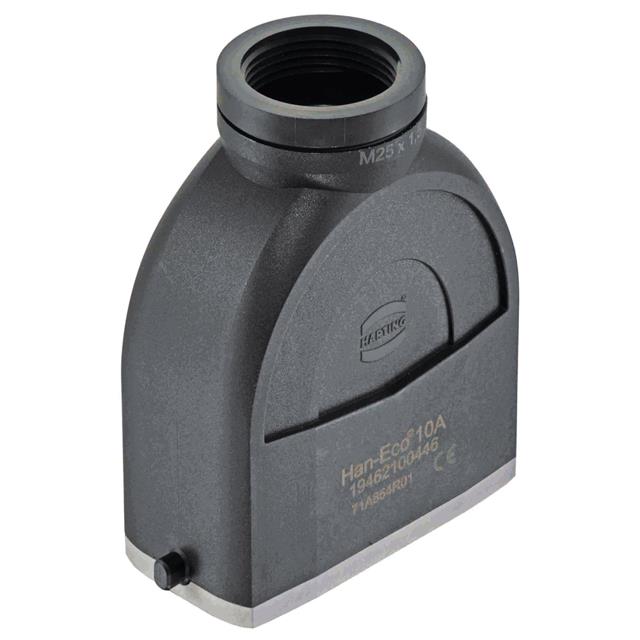

 HARTING | Hood | M25 | 125 °C | -40 C | A10 | IP65 - Dust Tight Water Resistant | Locking Clip (1) on Base Bottom | Black | Polyamide (PA) Nylon | Top Entry | ||||||||
 HARTING | Base - Panel Mount | 125 °C | -40 C | IP65 - Dust Tight Water Resistant | Locking Clip (1) on Base Bottom | Black | Glass Filled Nylon Polyamide (PA) | Bottom Entry | 10 A | Cover | 3.189 in | 81 mm | 40 mm | 27 mm | 1.575 " | 1.063 in |
