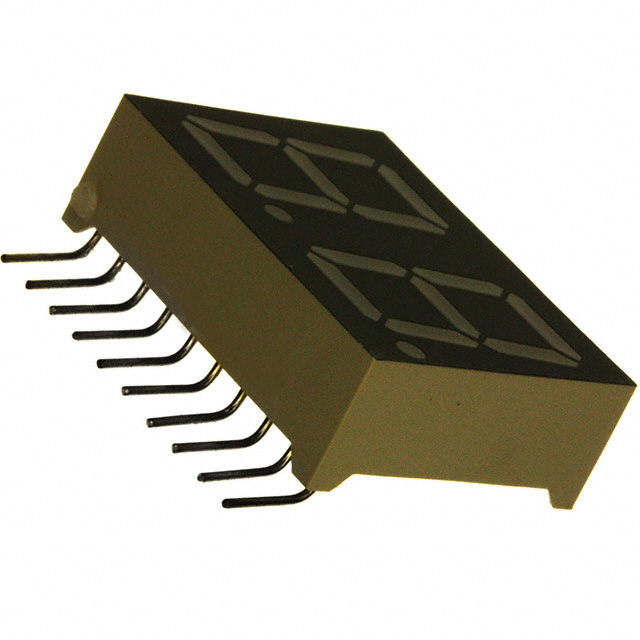

LDD-N512 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K
DISP 7SEG 0.56" DBL GRN 10SIP RA
| Part | Voltage - Forward (Vf) (Typ) | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Display Type | Power Dissipation (Max) [Max] | Color | Wavelength - Peak | Number of Characters | Current - Test | Millicandela Rating | Common Pin | Digit/Alpha Size | Digit/Alpha Size | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumex Opto/Components Inc. | 2.2 V | 8 mm | 0.315 in | 0.984 " | 0.748 in | 25 mm | 19 mm | 7-Segment | 105 mW | Green | 565 nm | 2 | 10 mA | 3.9 mcd | Common Cathode | 0.56 in | 14.22 mm | 10-SIP Right Angle |
