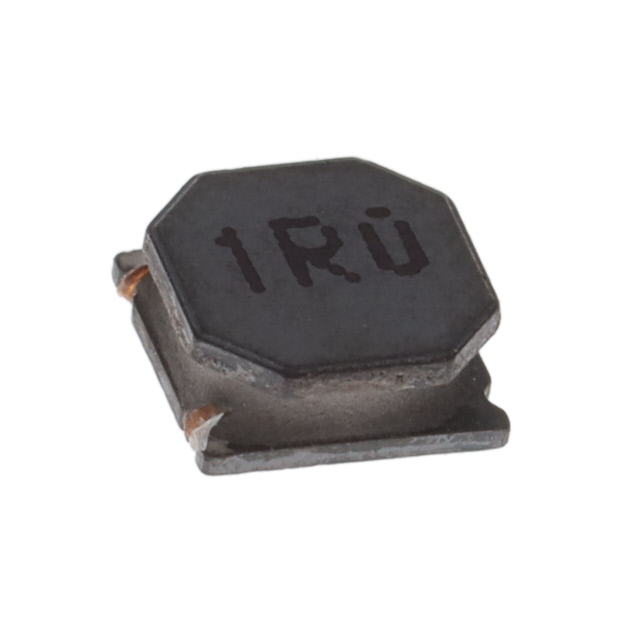

SDER041H Series
Manufacturer: Delta Electronics/Cyntec
Beta
⌘K
FIXED IND 22UH 1.2A 315MOHM SMD
| Part | Tolerance | Inductance Frequency - Test | Mounting Type | Package / Case | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Current Rating (Amps) | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Shielding | Inductance | Current - Saturation (Isat) | DC Resistance (DCR) | Operating Temperature [Min] | Operating Temperature [Max] | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics/Cyntec | 20 % | 100 kHz | Surface Mount | Nonstandard | 1.8 mm | 0.071 in | 1.2 A | 0.157 " | 4 mm | 0.157 in | 4 mm | Shielded | 22 µH | 850 mA | 315 mOhm | -55 C | 125 °C | |
Delta Electronics/Cyntec | 20 % | 100 kHz | Surface Mount | Nonstandard | 1.8 mm | 0.071 in | 4.3 A | 0.157 " | 4 mm | 0.157 in | 4 mm | Shielded | 1 µH | 3.5 A | -55 C | 125 °C | 25 mOhm | |
Delta Electronics/Cyntec | 20 % | 100 kHz | Surface Mount | Nonstandard | 1.8 mm | 0.071 in | 3.4 A | 0.157 " | 4 mm | 0.157 in | 4 mm | Shielded | 1.5 µH | 3.2 A | 40 mOhm | -55 C | 125 °C | |
Delta Electronics/Cyntec | 20 % | 100 kHz | Surface Mount | Nonstandard | 1.8 mm | 0.071 in | 0.157 " | 4 mm | 0.157 in | 4 mm | Shielded | -55 C | 125 °C | |||||
Delta Electronics/Cyntec | 20 % | 100 kHz | Surface Mount | Nonstandard | 1.8 mm | 0.071 in | 3.1 A | 0.157 " | 4 mm | 0.157 in | 4 mm | Shielded | 2.2 µH | 2.8 A | -55 C | 125 °C | 45 mOhm | |
Delta Electronics/Cyntec | 20 % | 100 kHz | Surface Mount | Nonstandard | 1.8 mm | 0.071 in | 2.3 A | 0.157 " | 4 mm | 0.157 in | 4 mm | Shielded | 4.7 ÁH | 1.85 A | -55 C | 125 °C | 83 mOhm | |
Delta Electronics/Cyntec | 20 % | 100 kHz | Surface Mount | Nonstandard | 1.8 mm | 0.071 in | 0.52 A | 0.157 " | 4 mm | 0.157 in | 4 mm | Shielded | 100 µH | 410 mA | -55 C | 125 °C | 1.854 Ohm | |
Delta Electronics/Cyntec | 20 % | 100 kHz | Surface Mount | Nonstandard | 1.8 mm | 0.071 in | 1.45 A | 0.157 " | 4 mm | 0.157 in | 4 mm | Shielded | 15 µH | 1 A | -55 C | 125 °C | 222 mOhm | |
Delta Electronics/Cyntec | 20 % | 100 kHz | Surface Mount | Nonstandard | 1.8 mm | 0.071 in | 580 mA | 0.157 " | 4 mm | 0.157 in | 4 mm | Shielded | 68 µH | 430 mA | 1.062 Ohm | -55 C | 125 °C | |
Delta Electronics/Cyntec | 20 % | 100 kHz | Surface Mount | Nonstandard | 1.8 mm | 0.071 in | 2.75 A | 0.157 " | 4 mm | 0.157 in | 4 mm | Shielded | 3.3 µH | 2.2 A | 56 mOhm | -55 C | 125 °C |
