391-053 Series
Manufacturer: EDAC Inc.
Beta
⌘K

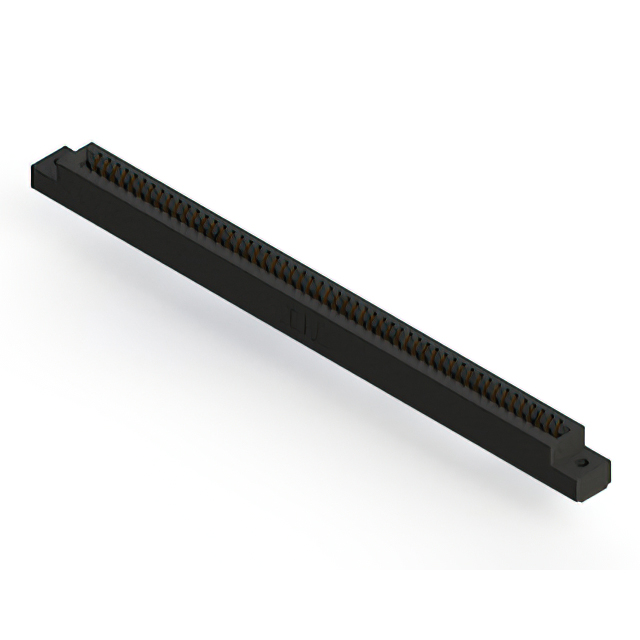

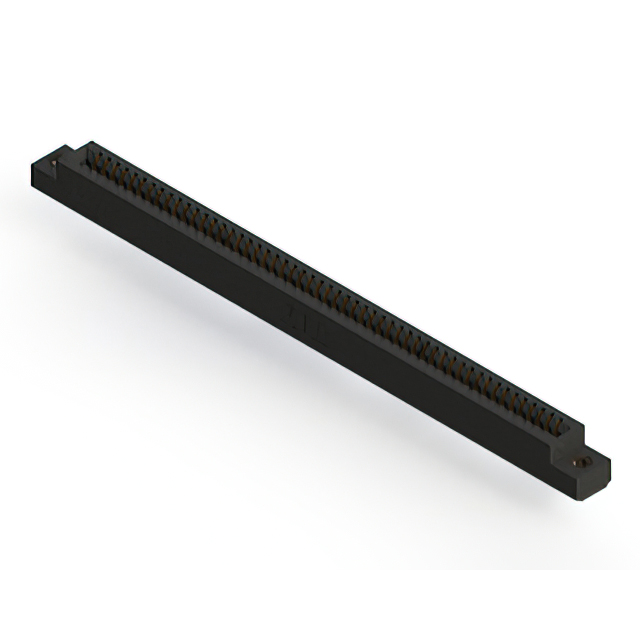

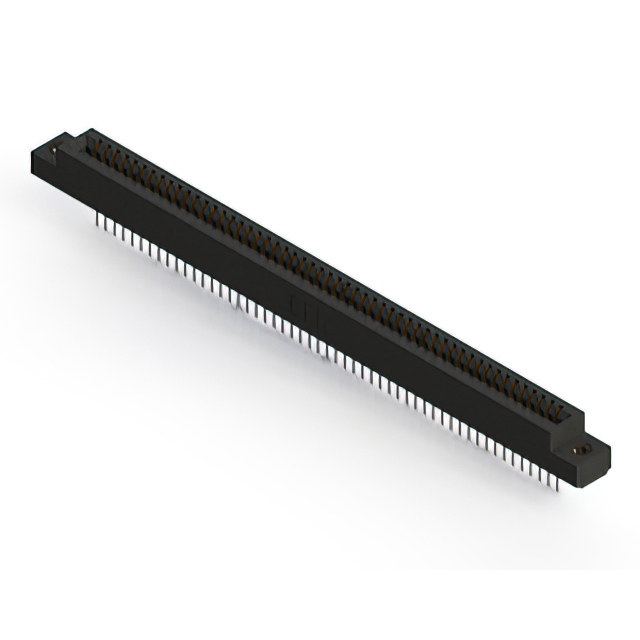

CONN EDGE SINGLE FML 53POS 0.100
| Part | Material - Insulation | Termination Rows | Contact Finish | Color | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Flange Feature | Number of Positions | Card Thickness [Max] | Card Thickness [Min] | Read Out | Pitch | Pitch | Gender | Number of Positions/Bay/Row | Card Type | Termination | Mounting Type | Number of Rows | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | Black | 0.25 Ám | 10 Áin | Copper Alloy | -40 C | 105 ░C | Semi Bellows | Flush Mount M3 Threaded Insert Top Opening | 53 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 0.1 " | 2.54 mm | Female | 53 | Non Specified - Single Edge | Solder | Through Hole | 1 | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | Black | 0.25 Ám | 10 Áin | Copper Alloy | -40 C | 105 ░C | Semi Bellows | Flush Mount M3 Threaded Insert Top Opening | 53 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 0.1 " | 2.54 mm | Female | 53 | Non Specified - Single Edge | Solder | Through Hole | 1 | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | Black | 0.25 Ám | 10 Áin | Copper Alloy | -40 C | 105 ░C | Semi Bellows | Floating Bobbin Flush Mount | 53 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 0.1 " | 2.54 mm | Female | 53 | Non Specified - Single Edge | Solder | Through Hole | 1 | 0.116 " | 2.95 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | Black | 0.25 Ám | 10 Áin | Copper Alloy | -40 C | 105 ░C | Semi Bellows | Flush Mount M3 Threaded Insert Top Opening | 53 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 0.1 " | 2.54 mm | Female | 53 | Non Specified - Single Edge | Solder | Through Hole | 1 | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | Black | 0.25 Ám | 10 Áin | Copper Alloy | -40 C | 105 ░C | Semi Bellows | Flush Mount M3 Threaded Insert Top Opening | 53 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 0.1 " | 2.54 mm | Female | 53 | Non Specified - Single Edge | Solder | Through Hole | 1 | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | Black | 0.25 Ám | 10 Áin | Copper Alloy | -40 C | 105 ░C | Semi Bellows | Flush Mount Top Opening Unthreaded | 53 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 0.1 " | 2.54 mm | Female | 53 | Non Specified - Single Edge | Solder | Through Hole | 1 | 0.128 " | 3.25 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | Black | 0.25 Ám | 10 Áin | Copper Alloy | -40 C | 105 ░C | Semi Bellows | Floating Bobbin Flush Mount | 53 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 0.1 " | 2.54 mm | Female | 53 | Non Specified - Single Edge | Solder | Through Hole | 1 | 0.116 " | 2.95 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | Black | 0.25 Ám | 10 Áin | Copper Alloy | -40 C | 105 ░C | Semi Bellows | Flush Mount Top Opening Unthreaded | 53 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 0.1 " | 2.54 mm | Female | 53 | Non Specified - Single Edge | Solder | Through Hole | 1 | 0.156 " | 3.96 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | Black | 0.25 Ám | 10 Áin | Copper Alloy | -40 C | 105 ░C | Semi Bellows | 53 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 0.1 " | 2.54 mm | Female | 53 | Non Specified - Single Edge | Solder | Through Hole | 1 | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | Black | 0.25 Ám | 10 Áin | Copper Alloy | -40 C | 105 ░C | Semi Bellows | Flush Mount Top Opening Unthreaded | 53 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 0.1 " | 2.54 mm | Female | 53 | Non Specified - Single Edge | Solder | Through Hole | 1 | 0.128 " | 3.25 mm |
