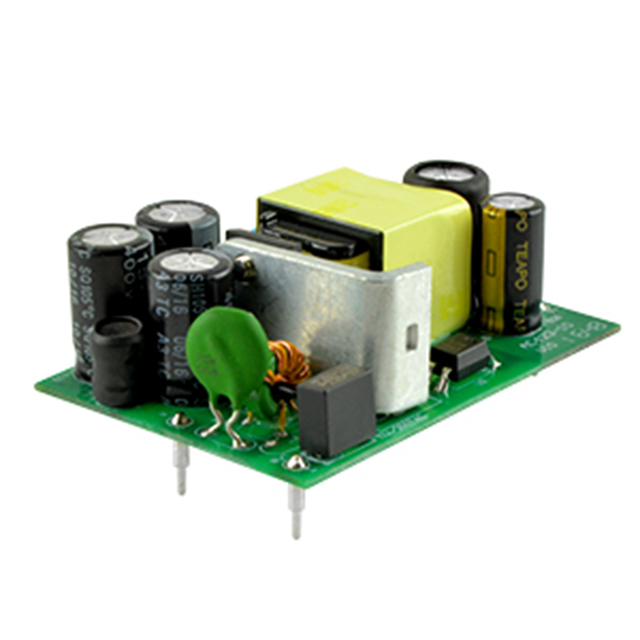

VOF-20B Series

Manufacturer: CUI Inc.

Catalog

AC/DC POWER SUPPLY SINGLE-OUT 24V 0.85A 20.4W 4-PIN BOX

Part	Features	Applications	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Mounting Type	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Load Regulation	Approval Agency	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Line Regulation	Type	Package / Case	Current - Output (Max) [Max]	Power (Watts)	Voltage - Output 1
CUI Inc. VOF-20B-S24	Universal Input	ITE (Commercial)	60950-1 61000-3-2 61000-3-3 62368-1	85 VAC 120 VDC	264 VAC 370 VDC	86.06 %	Through Hole	1	70 °C	-25 °C	±1%	CB Scheme EN FCC IEC UL	22.9 mm	0.9 in	1.67 in	2.33 "	42.3 mm	59.2 mm	0.5 %	Open Frame	4-DIP Module	850 mA	20 W	24 V
CUI Inc. VOF-20B-S5	Universal Input	ITE (Commercial)	60950-1 61000-3-2 61000-3-3 62368-1			82.85 %	Through Hole	1	70 °C	-25 °C	±1%	CB Scheme EN FCC IEC UL	22.9 mm	0.9 in	1.67 in	2.33 "	42.3 mm	59.2 mm	0.5 %	Open Frame	4-DIP Module	3.5 A	20 W	5 V
CUI Inc. VOF-20B-S9	Universal Input	ITE (Commercial)	60950-1 61000-3-2 61000-3-3 62368-1			85.7 %	Through Hole	1	70 °C	-25 °C	±1%	CB Scheme EN FCC IEC UL	22.9 mm	0.9 in	1.67 in	2.33 "	42.3 mm	59.2 mm	0.5 %	Open Frame	4-DIP Module	2.1 A	20 W	9 V
CUI Inc. VOF-20B-S12	Universal Input	ITE (Commercial)	60950-1 61000-3-2 61000-3-3 62368-1	85 VAC 120 VDC	264 VAC 370 VDC	85.77 %	Through Hole	1	70 °C	-25 °C	±1%	CB Scheme EN FCC IEC UL	22.9 mm	0.9 in	1.67 in	2.33 "	42.3 mm	59.2 mm	0.5 %	Open Frame	4-DIP Module	1.6 A	20 W	12 V
