8205MN Series
Manufacturer: Belden Inc.
Beta
⌘K

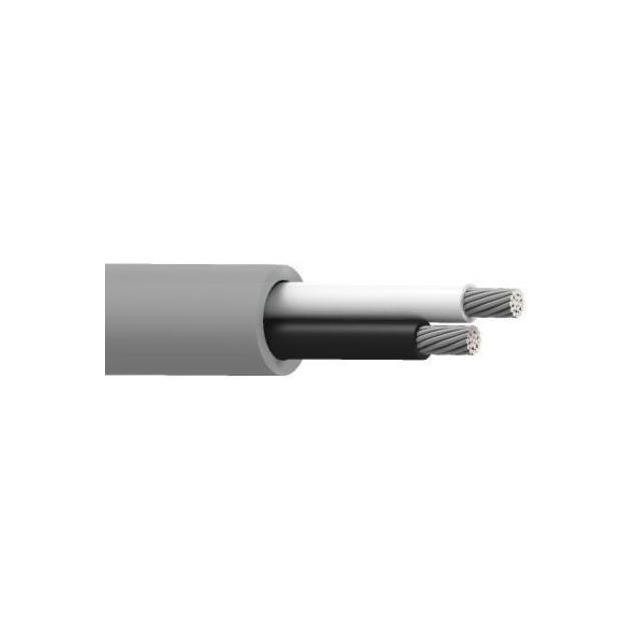

CABLE 2COND 20AWG GRAY
| Part | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Usage | Number of Conductors | Jacket Color | Cable Type | Conductor Insulation | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Length [x] | Length [x] | Length | Length | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 20 AWG | 26 | 34 AWG | 0.406 mm | 0.016 in | Audio Control Instrumentation | 2 | Gray | Multi-Conductor | Polypropylene (PP) | Copper Tinned | Poly-Vinyl Chloride (PVC) | 3.71 mm | 0.146 in | 80 °C | -20 ░C | 100 ft | 30.5 m | |||
 Belden Inc. | 20 AWG | 26 | 34 AWG | 0.406 mm | 0.016 in | Audio Control Instrumentation | 2 | Gray | Multi-Conductor | Polypropylene (PP) | Copper Tinned | Poly-Vinyl Chloride (PVC) | 3.71 mm | 0.146 in | 80 °C | -20 ░C | 304.8 m | 1000 ft | 300 VDC |
