M50-365 Series

Catalog

WTB CONN, HEADER, 20POS, 2ROWS, 1.27MM

Part	Mated Stacking Heights	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Number of Positions	Termination	Shrouding	Current Rating (Amps)	Contact Type	Contact Finish Thickness - Mating	Connector Type	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Material	Style	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Finish - Post	Contact Finish - Mating	Number of Rows [custom]	Features	Mounting Type	Contact Shape	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Number of Positions [custom]
Harwin Inc. M50-3651042R	11.85 mm	2.54 µm	100 µin	UL94 V-0	20	Solder	Shrouded - 4 Wall	1.75 A	Male Pin	Flash	Header	Latch Lock/Eject Hooks	1.27 mm	0.05 in	Brass	Board to Board Cable	-55 C	125 °C	All	Tin	Gold	2	Board Lock Keying Slot Pick and Place	Surface Mount	Square	Black	0.05 in	1.27 mm	0.325 in	8.25 mm	0.12 in	3.05 mm

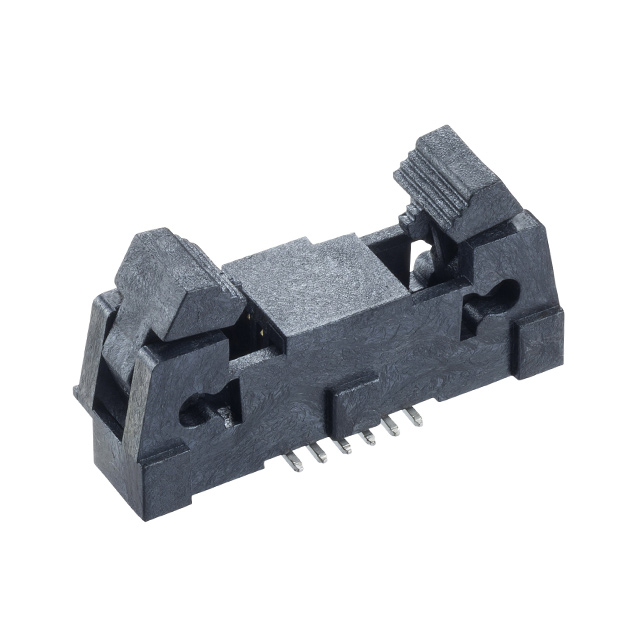

Harwin Inc. M50-3650642R	11.85 mm	2.54 µm	100 µin	UL94 V-0	12	Solder	Shrouded - 4 Wall	1.75 A	Male Pin	Flash	Header	Latch Lock/Eject Hooks	1.27 mm	0.05 in	Brass	Board to Board Cable	-55 C	125 °C	All	Tin	Gold	2	Board Lock Keying Slot Pick and Place	Surface Mount	Square	Black	0.05 in	1.27 mm	0.325 in	8.25 mm	0.12 in	3.05 mm

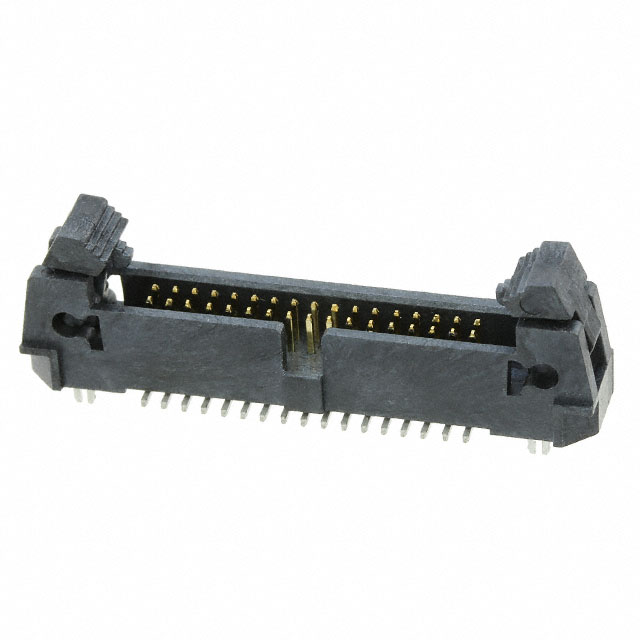

Harwin Inc. M50-3651742R	11.55 mm	2.54 µm	100 µin	UL94 V-0		Solder	Shrouded - 4 Wall	1.75 A	Male Pin	Flash	Header	Latch Lock/Eject Hooks	1.27 mm	0.05 in	Brass	Board to Board Cable	-55 C	125 °C	All	Tin	Gold	2	Board Lock Keying Slot Pick and Place	Surface Mount	Square	Black	0.05 in	1.27 mm	0.325 in	8.25 mm	0.12 in	3.05 mm	34

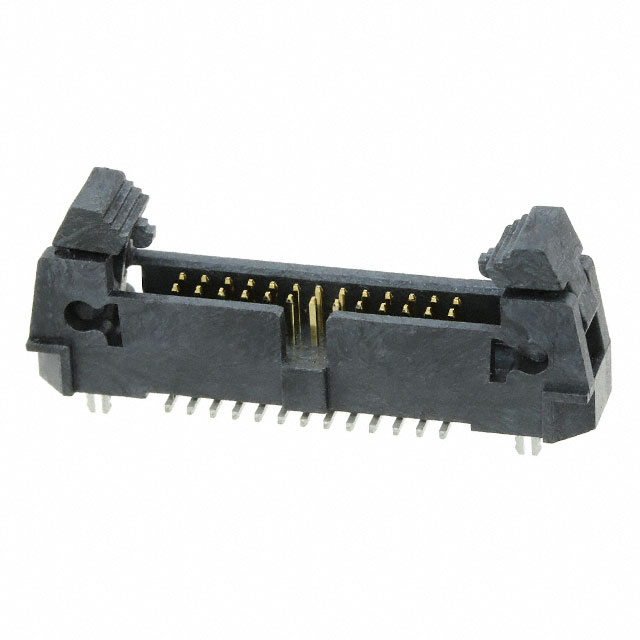

Harwin Inc. M50-3651342R	11.85 mm	2.54 µm	100 µin	UL94 V-0	26	Solder	Shrouded - 4 Wall	1.75 A	Male Pin	Flash	Header	Latch Lock/Eject Hooks	1.27 mm	0.05 in	Brass	Board to Board Cable	-55 C	125 °C	All	Tin	Gold	2	Board Lock Keying Slot Pick and Place	Surface Mount	Square	Black	0.05 in	1.27 mm	0.325 in	8.25 mm	0.12 in	3.05 mm

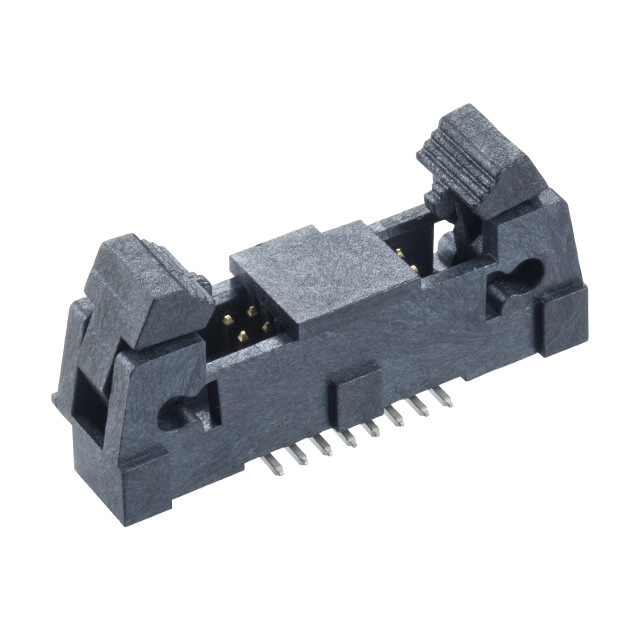

Harwin Inc. M50-3650842R	11.85 mm	2.54 µm	100 µin	UL94 V-0	16	Solder	Shrouded - 4 Wall	1.75 A	Male Pin	Flash	Header	Latch Lock/Eject Hooks	1.27 mm	0.05 in	Brass	Board to Board Cable	-55 C	125 °C	All	Tin	Gold	2	Board Lock Keying Slot Pick and Place	Surface Mount	Square	Black	0.05 in	1.27 mm	0.325 in	8.25 mm	0.12 in	3.05 mm

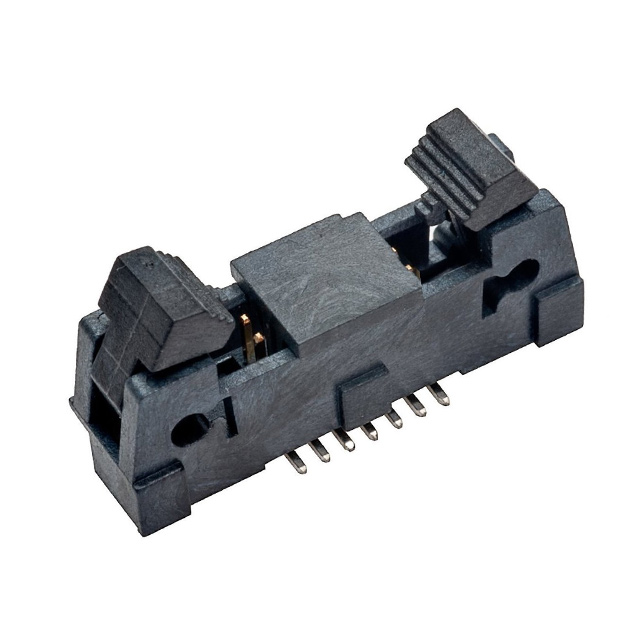

Harwin Inc. M50-3650742R	11.85 mm	2.54 µm	100 µin	UL94 V-0	14	Solder	Shrouded - 4 Wall	1.75 A	Male Pin	Flash	Header	Latch Lock/Eject Hooks	1.27 mm	0.05 in	Brass	Board to Board Cable	-55 C	125 °C	All	Tin	Gold	2	Board Lock Keying Slot Pick and Place	Surface Mount	Square	Black	0.05 in	1.27 mm	0.325 in	8.25 mm	0.12 in	3.05 mm
