XDCBD14 Series
Manufacturer: SunLED
Beta
⌘K
DISPLAY 7SEG 0.56" SGL BLU 10DIP
| Part | Common Pin | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Power Dissipation (Max) | Voltage - Forward (Vf) (Typ) | Number of Characters | Color | Package / Case | Package / Case | Current - Test | Millicandela Rating | Wavelength - Peak | Display Type | Digit/Alpha Size | Digit/Alpha Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

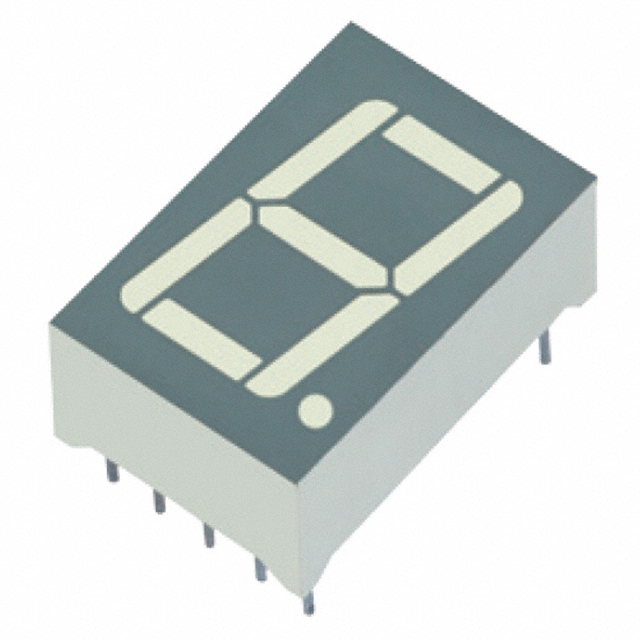

 SunLED | Common Cathode | 0.315 in | 0.5 " | 0.75 in | 12.7 mm | 19.05 mm | 8 mm | 120 mW | 3 V | 1 | Blue | 0.6 in 15.24 mm | 10-DIP | 10 mA | 24 mcd | 460 nm | 7-Segment | 0.56 in | 14.22 mm |

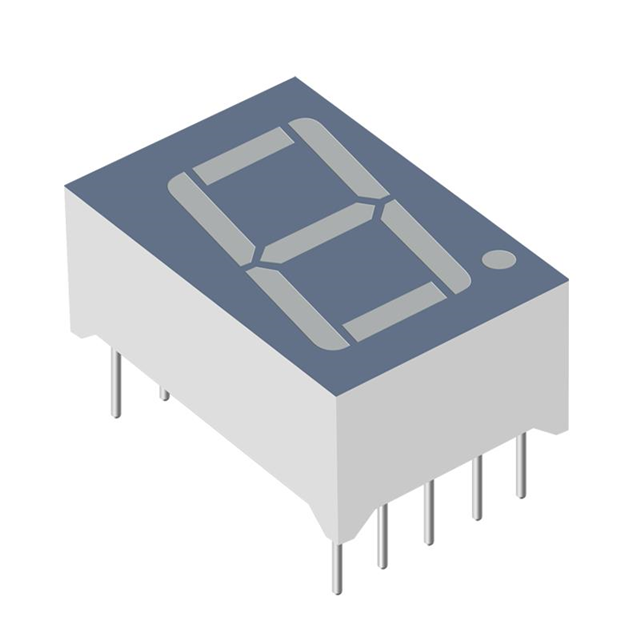

 SunLED | Common Anode | 0.315 in | 0.5 " | 0.75 in | 12.7 mm | 19.05 mm | 8 mm | 120 mW | 3 V | 1 | Blue | 0.6 in 15.24 mm | 10-DIP | 10 mA | 24 mcd | 468 nm | 7-Segment | 0.56 in | 14.22 mm |
