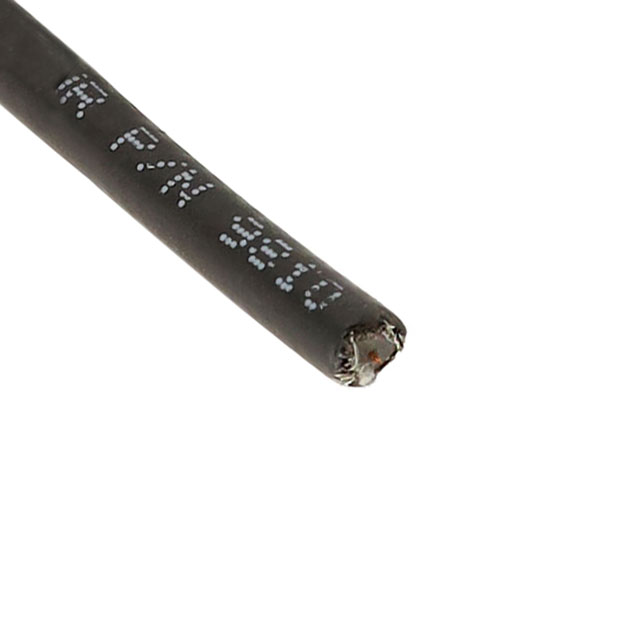

9810 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE COAXIAL 23AWG 1000'
| Part | VoP, Velocity of Propagation | Shield Material | Shield Coverage | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Dielectric Material | Conductor Material | Cable Type | Length [x] | Length [x] | Jacket Color | Wire Gauge | Jacket (Insulation) Material | Conductor Strand | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 66 | Copper Tinned | 95 % | -55 C | 80 °C | 3.71 mm | 0.146 in | Solid Polyethylene (PE) | Copper Bare | Coaxial | 304.8 m | 1000 ft | Black | 23 AWG | Polyethylene (PE) | Solid | 5.59 mm | 0.22 in | Braid | 75 Ohms |
