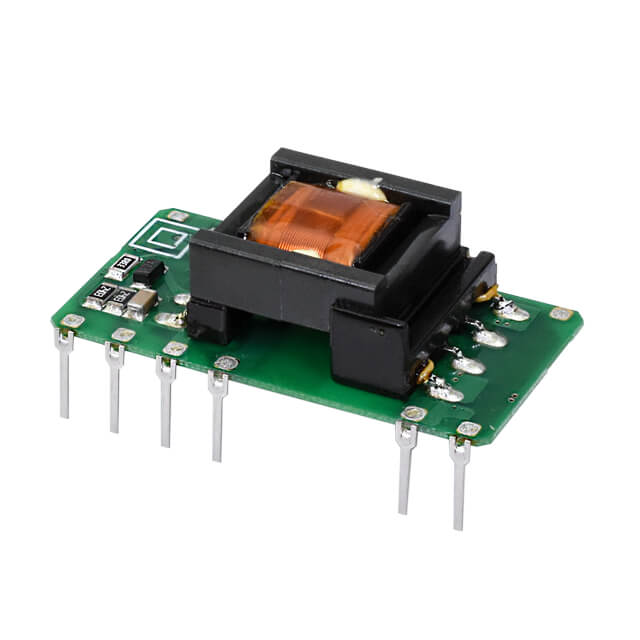

PBO-15C Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 12V 15W
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Load Regulation | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Mounting Type | Applications | Approval Agency | Line Regulation | Package / Case | Number of Outputs | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output 1 | Type | Current - Output (Max) [Max] | Power (Watts) | Efficiency | Standard Number | Load Regulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | -40 °C | 85 °C | ±1% | 15 mm | 44.5 mm | 24 mm | 0.59 in | 1.75 " | 0.94 " | Through Hole | Household Appliances ITE (Commercial) | CE cURus UL | 0.5 % | 16-SIP Module 6 Leads | 1 | 85 VAC 100 V | 305 VAC 430 VDC | 12 V | Open Frame | 1.25 A | 15 W | |||
 CUI Inc. | -40 °C | 85 °C | ±1% | 24 mm | 44.5 mm | 15 mm | 0.94 in | 1.75 " | 0.59 in | Right Angle Through Hole | Household Appliances ITE (Commercial) | CE cURus UL | 0.5 % | 16-SIP Module 6 Leads | 1 | 85 VAC 100 V | 305 VAC 430 VDC | 24 V | Open Frame | 625 mA | 15 W | 85 % | 60335-1 62368-1 | |
CUI Inc. | -40 °C | 85 °C | ±1% | 24 mm | 44.5 mm | 15 mm | 0.94 in | 1.75 " | 0.59 in | Right Angle Through Hole | Household Appliances ITE (Commercial) | CE cURus UL | 0.5 % | 16-SIP Module 6 Leads | 1 | 85 VAC 100 V | 305 VAC 430 VDC | 15 V | Open Frame | 1 A | 15 W | 84 % | 60335-1 62368-1 | |
CUI Inc. | -40 °C | 85 °C | ±1% | 24 mm | 44.5 mm | 15 mm | 0.94 in | 1.75 " | 0.59 in | Right Angle Through Hole | Household Appliances ITE (Commercial) | CE cURus UL | 0.5 % | 16-SIP Module 6 Leads | 1 | 85 VAC 100 V | 305 VAC 430 VDC | 12 V | Open Frame | 1.25 A | 15 W | 60335-1 62368-1 | ||
CUI Inc. | -40 °C | 85 °C | 24 mm | 44.5 mm | 15 mm | 0.94 in | 1.75 " | 0.59 in | Right Angle Through Hole | Household Appliances ITE (Commercial) | CE cURus UL | 0.5 % | 16-SIP Module 6 Leads | 1 | 85 VAC 100 V | 305 VAC 430 VDC | 5 V | Open Frame | 2.8 A | 14 W | 77 % | 60335-1 62368-1 | 1.5 % | |
CUI Inc. | -40 °C | 85 °C | ±1% | 24 mm | 44.5 mm | 15 mm | 0.94 in | 1.75 " | 0.59 in | Right Angle Through Hole | Household Appliances ITE (Commercial) | CE cURus UL | 0.5 % | 16-SIP Module 6 Leads | 1 | 85 VAC 100 V | 305 VAC 430 VDC | 9 V | Open Frame | 1.67 A | 15 W | 60335-1 62368-1 |
