SC-20 Series

Manufacturer: KEMET

Catalog

COMMON MODE FILTER, 1MH, 20A ROHS COMPLIANT: YES

Part	Mounting Type	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Voltage Rating - DC	Package / Case	Filter Type	Current Rating (Max) [Max]	Voltage Rating - AC	DC Resistance (DCR) (Max) [Max]	Number of Lines	Size / Dimension [diameter]	Size / Dimension [diameter]	Inductance @ Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Height (Max) [z]	Height (Max) [z]

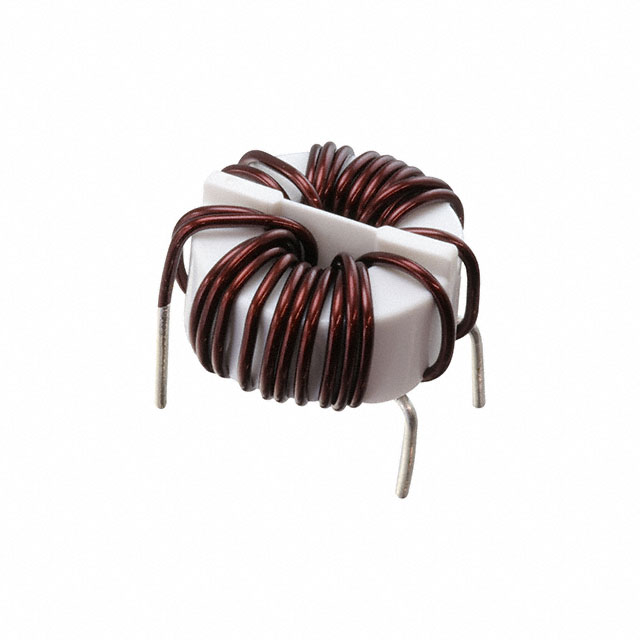

KEMET SC-20-104	Through Hole	31 mm	1.22 in	250 V	4 PC Pin Horizontal No Base	Power Line	20 A	250 V	8 mOhm	2	2.047 "	52 mm	1 mH	-40 C	105 ░C
KEMET SC-20-400	Through Hole			250 V	4 PC Pin Horizontal No Base	Power Line	20 A	250 V	13 mOhm	2	2.48 in	63 mm	1 kHz 4 mH	-40 C	105 ░C	35 mm	1.378 in
KEMET SC-20-300	Through Hole			250 V	4 PC Pin Horizontal No Base	Power Line	20 A	250 V	13 mOhm	2	2.48 in	63 mm	3 mH	-40 C	105 ░C	35 mm	1.378 in
