R31655 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

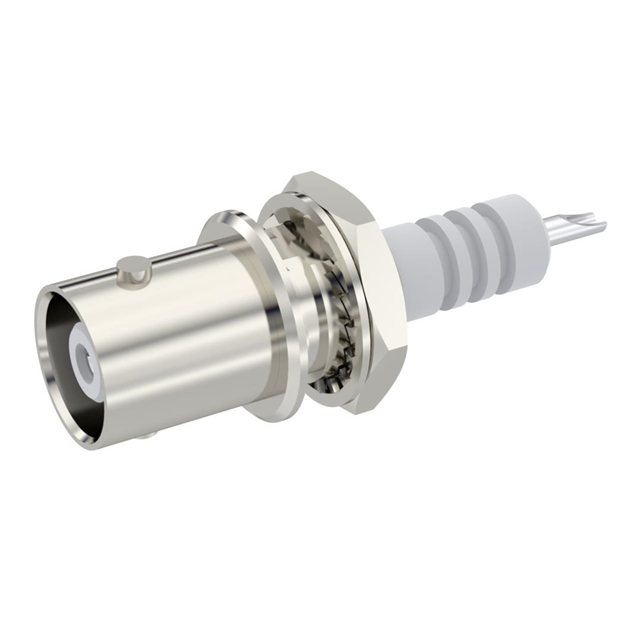

BNCHV 90530 F BHD
| Part | Body Finish | Includes | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Mating Cycles | Dielectric Material | Body Material | Number of Ports | Fastening Type | Shield Termination | Impedance | Mounting Feature | Center Contact Material | Features | Contact Termination | Connector Type | Mounting Type | Housing Color | Frequency - Max [Max] | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Nickel | 1 Connector 1 Lockwasher 1 Nut | 155 C | -55 C | Silver | 500 | Polytetrafluoroethylene (PTFE) | Brass | 1 | Bayonet Lock | Solder | 50 Ohms | Bulkhead - Rear Side Nut | Beryllium Copper Brass | Extended Insulation | Solder Cup | Receptacle Female Socket | Panel Mount | Silver | 2 GHz | BNC |
