2016L200 Series

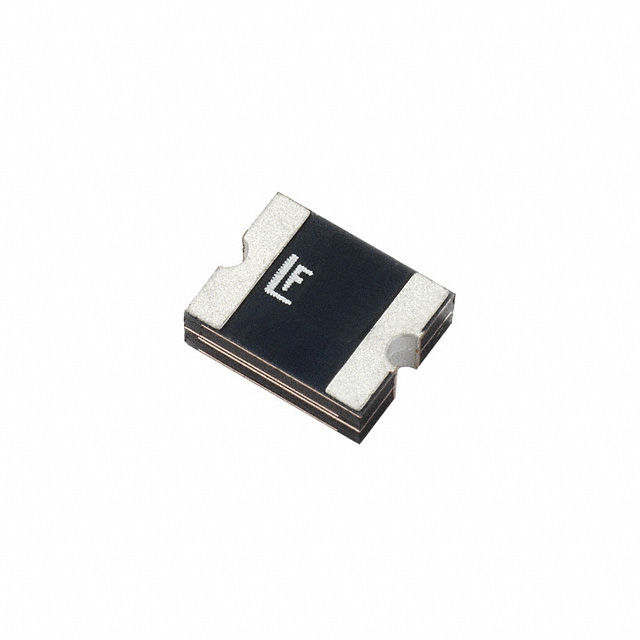

PTC 6V POLYFUSE SURF MOUNT 2016 2A

Catalog

PTC 6V POLYFUSE SURF MOUNT 2016 2A

Part	Resistance - Initial (Ri) (Min) [Min]	Current - Trip (It)	Time to Trip	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Package / Case	Package / Case	Approval Agency	Resistance - Post Trip (R1) (Max) [Max]	Current - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Current - Hold (Ih) (Max) [Max]	Thickness (Max) [Max]	Thickness (Max) [Max]	Voltage - Max [Max]
Littelfuse/Commercial Vehicle Products 2016L200PR	48 mOhms	4.2 A	3 s	Surface Mount	0.2 in	5.08 mm	4.07 mm	0.16 in	2016	Concave	5041 Metric	cURus TUV	100 mOhms	40 A	85 °C	-40 °C	Polymeric	2 A	0.75 mm	0.03 in	6 V

PTC 6V POLYFUSE SURF MOUNT 2016 2A

• Lead-free and RoHS compliant

• Fast response to fault currents

• High Voltage

• Low-profile

The 2016L series device provides surface mount overcurrent protection for low voltage (≤60V) applications where resettable protection is desired.
