PEC34 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 68POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Insulation Height	Insulation Height	Fastening Type	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Contact Type	Number of Positions	Connector Type	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows [custom]	Contact Shape	Current Rating (Amps)	Termination	Insulation Material	Pitch - Mating	Pitch - Mating	Insulation Color	Overall Contact Length [x]	Overall Contact Length [x]	Style	Mounting Type	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Number of Rows	Overall Contact Length	Overall Contact Length	Number of Positions [custom]	Overall Contact Length	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [custom]	Contact Length - Post [custom]
Sullins Connector Solutions PEC34DADN	2.54 µm	100 µin	UL94 V-0	0.1 in	2.54 mm	Push-Pull	All	-65 ░C	125 °C	0.1 in	2.54 mm	Unshrouded	Male Pin	68 positions	Header Breakaway	Phosphor Bronze	100 çin	2.54 çm	2	Square	3 A	Solder	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	Black	19.05 mm	0.75 in	Board to Board Cable	Through Hole	10.67 mm	0.42 in	Tin	0.23 in	5.84 mm

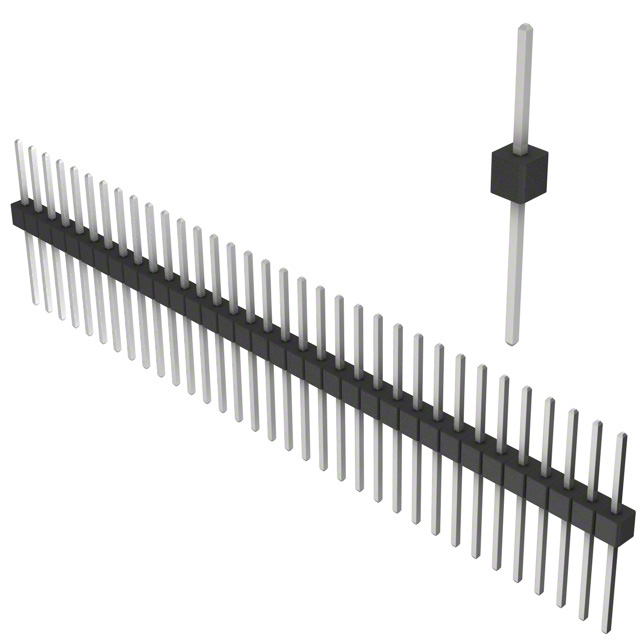

Sullins Connector Solutions PEC34SFDN	2.54 µm	100 µin	UL94 V-0	0.1 in	2.54 mm	Push-Pull	All	-65 ░C	125 °C			Unshrouded	Male Pin		Header Breakaway	Phosphor Bronze	100 çin	2.54 çm		Square	3 A	Solder	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	Black			Board to Board Cable	Through Hole	10.67 mm	0.42 in	Tin	0.318 in	8.08 mm	1	21.29 mm	0.838 in	34

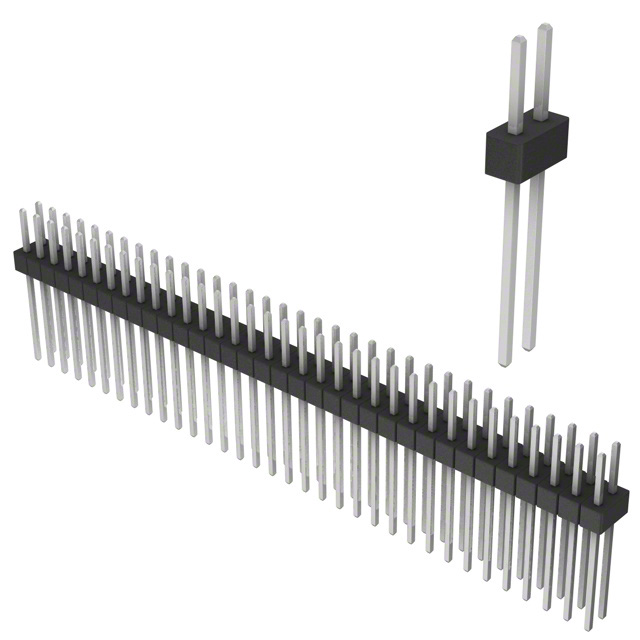

Sullins Connector Solutions PEC34DAEN	2.54 µm	100 µin	UL94 V-0	0.1 in	2.54 mm	Push-Pull	All	-65 ░C	125 °C	0.1 in	2.54 mm	Unshrouded	Male Pin	68 positions	Header Breakaway	Phosphor Bronze	100 çin	2.54 çm	2	Square	3 A	Solder	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	Black			Board to Board Cable	Through Hole	13.21 mm	0.52 in	Tin	0.23 in	5.84 mm		21.59 mm	0.85 in
Sullins Connector Solutions PEC34DAAN	2.54 µm	100 µin	UL94 V-0	0.1 in	2.54 mm	Push-Pull	All	-65 ░C	125 °C	0.1 in	2.54 mm	Unshrouded	Male Pin	68 positions	Header Breakaway	Phosphor Bronze	100 çin	2.54 çm	2	Square	3 A	Solder	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	Black	11.43 mm	0.45 in	Board to Board Cable	Through Hole	3.05 mm	0.12 in	Tin	0.23 in	5.84 mm

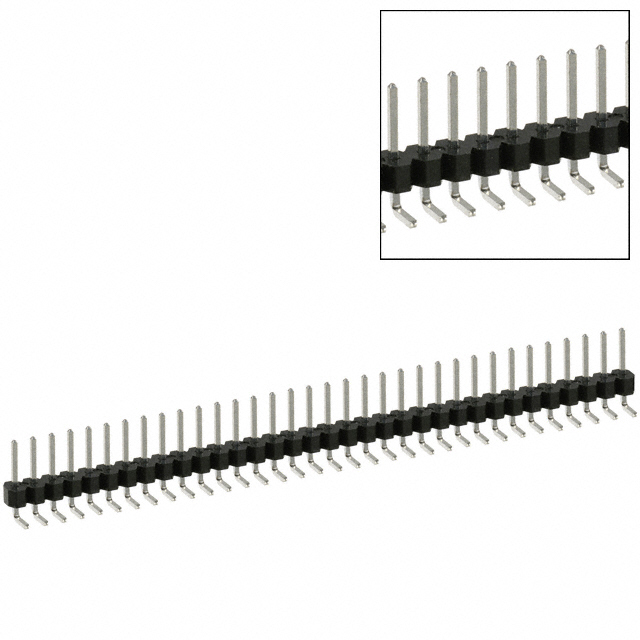

Sullins Connector Solutions PEC34SBAN	2.54 µm	100 µin	UL94 V-0	0.14 in	3.56 mm	Push-Pull	All	-65 ░C	125 °C			Unshrouded	Male Pin		Header Breakaway	Phosphor Bronze	100 çin	2.54 çm		Square	3 A	Solder	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	Black			Board to Board Cable	Right Angle Through Hole	2.54 mm	0.1 in	Tin	0.23 in	5.84 mm	1			34

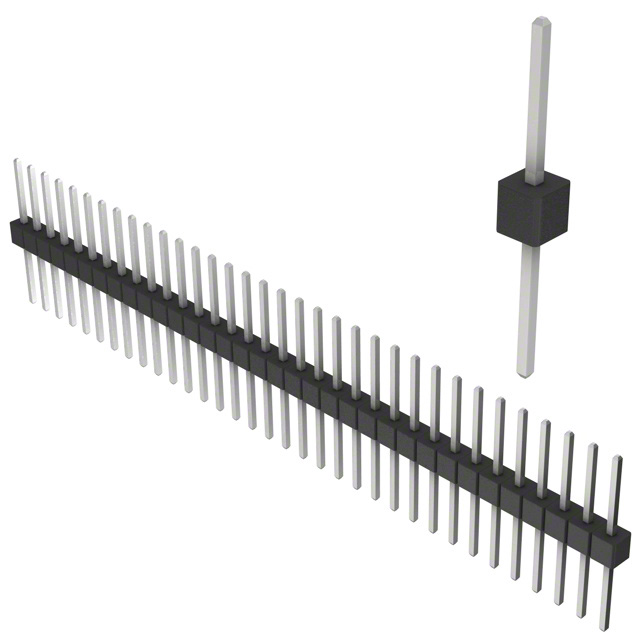

Sullins Connector Solutions PEC34SFCN	2.54 µm	100 µin	UL94 V-0	0.1 in	2.54 mm	Push-Pull	All	-65 ░C	125 °C			Unshrouded	Male Pin		Header Breakaway	Phosphor Bronze	100 çin	2.54 çm		Square	3 A	Solder	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	Black			Board to Board Cable	Through Hole	8.13 mm	0.32 in	Tin	0.318 in	8.08 mm	1	18.75 mm		34	0.738 in

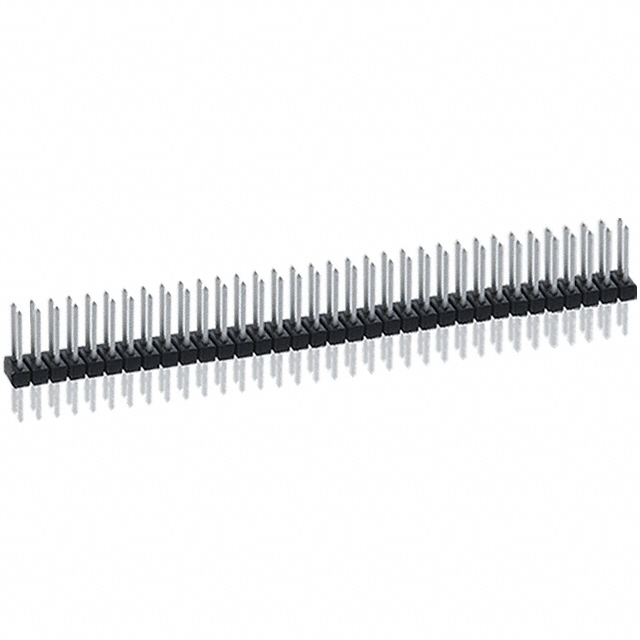

Sullins Connector Solutions PEC34DFBN	2.54 µm	100 µin	UL94 V-0	0.1 in	2.54 mm	Push-Pull	All	-65 ░C	125 °C	0.1 in	2.54 mm	Unshrouded	Male Pin	68 positions	Header Breakaway	Phosphor Bronze	100 çin	2.54 çm	2	Square	3 A	Solder	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	Black			Board to Board Cable	Through Hole	5.58 mm	0.22 in	Tin	0.318 in	8.08 mm		16.21 mm	0.638 in
Sullins Connector Solutions PEC34DBAN	2.54 µm	100 µin	UL94 V-0			Push-Pull	All	-65 ░C	125 °C	0.1 in	2.54 mm	Unshrouded	Male Pin	68 positions	Header Breakaway	Phosphor Bronze	100 çin	2.54 çm	2	Square	3 A	Solder	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	Black			Board to Board Cable	Right Angle Through Hole	2.54 mm	0.1 in	Tin	0.23 in	5.84 mm						6.1 mm	0.24 in

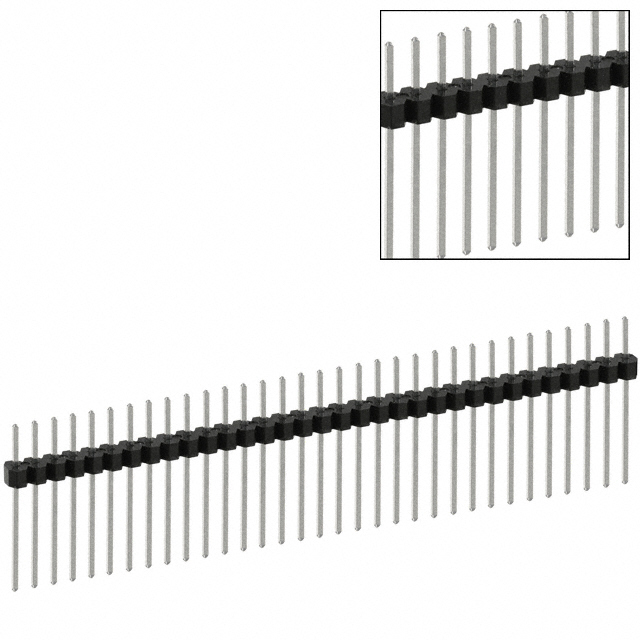

Sullins Connector Solutions PEC34SAFN	2.54 µm	100 µin	UL94 V-0	0.1 in	2.54 mm	Push-Pull	All	-65 ░C	125 °C			Unshrouded	Male Pin		Header Breakaway	Phosphor Bronze	100 çin	2.54 çm		Square	3 A	Solder	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	Black			Board to Board Cable	Through Hole			Tin	0.23 in	5.84 mm	1	24.13 mm	0.95 in	34				15.75 mm	0.62 "

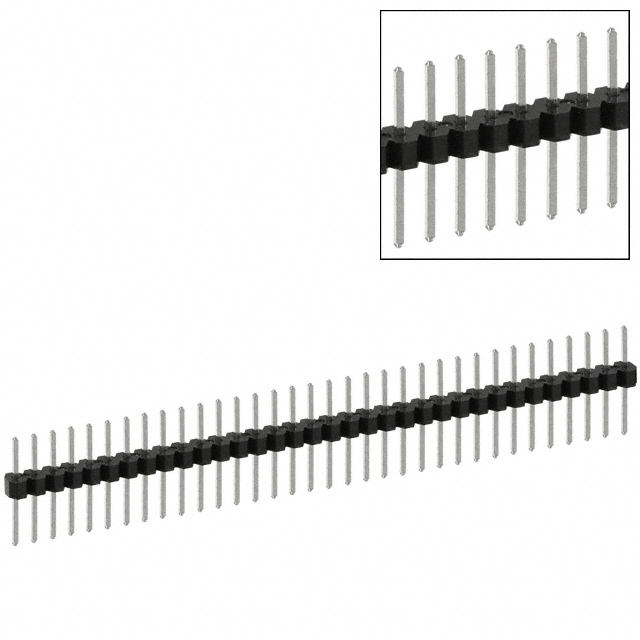

Sullins Connector Solutions PEC34SACN	2.54 µm	100 µin	UL94 V-0	0.1 in	2.54 mm	Push-Pull	All	-65 ░C	125 °C			Unshrouded	Male Pin		Header Breakaway	Phosphor Bronze	100 çin	2.54 çm		Square	3 A	Solder	Polybutylene Terephthalate (PBT)	0.1 "	2.54 mm	Black			Board to Board Cable	Through Hole	8.13 mm	0.32 in	Tin	0.23 in	5.84 mm	1	16.51 mm	0.65 in	34
