S10B-PUD Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

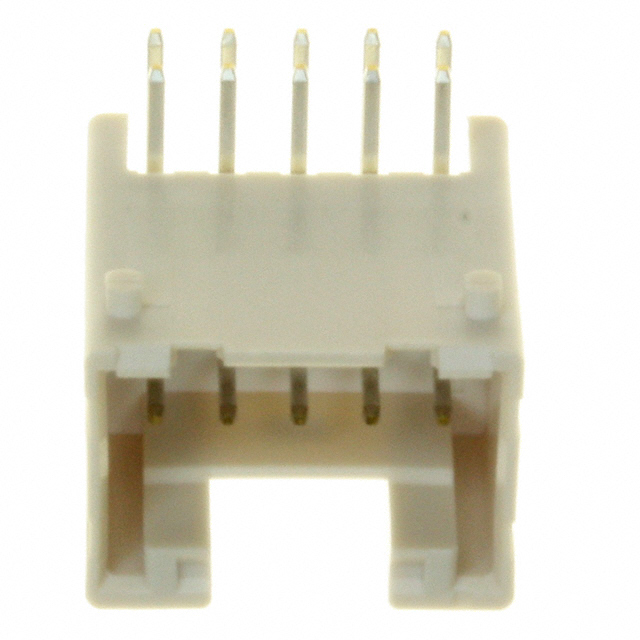

CONN HEADER R/A 10POS 2MM
| Part | Insulation Color | Row Spacing - Mating | Row Spacing - Mating | Number of Positions | Contact Finish - Post | Voltage Rating | Contact Shape | Shrouding | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Contact Type | Material Flammability Rating | Number of Rows [custom] | Features | Current Rating (Amps) | Fastening Type | Style | Contact Material | Termination | Insulation Height | Insulation Height | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Insulation Material | Contact Length - Post | Contact Length - Post | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Natural | 2 mm | 0.079 in | 10 | Tin | 250 V | Square | Shrouded - 4 Wall | 85 °C | -25 °C | Header | Male Pin | UL94 V-0 | 2 | Board Guide | 3 A | Latch Holder | Board to Cable/Wire | Copper Alloy | Solder | 0.335 " | 8.51 mm | All | 0.079 " | 2 mm | Glass Filled Nylon 6/6 Polyamide (PA66) | 0.118 in | 3 mm | Right Angle Through Hole |
