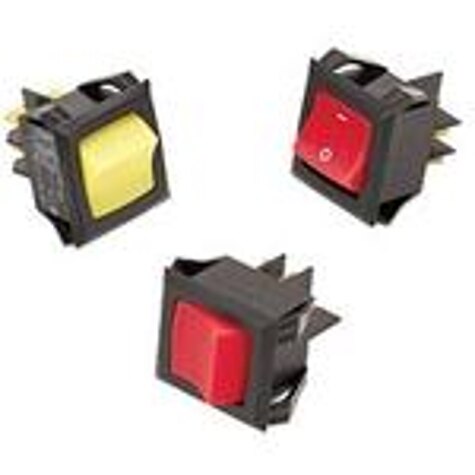

LRGSEK511 Series
Manufacturer: Carling Technologies
Beta
⌘K
SWITCH ROCKER SPST 20A 125V
| Part | Illumination Type, Color | Termination Style | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Illumination Voltage (Nominal) | Approval Agency | Mounting Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Electrical Life | Actuator Type | Circuit | Color - Actuator/Cap | Actuator Marking | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Carling Technologies | Green Incandescent | Quick Connect - 0.250" (6.3mm) | On-Off | 85 °C | -40 °C | 125 V | 12 VAC/DC | CSA UL | Panel Mount Snap-In | 30 mm | 22 mm | 100000 Cycles | Concave (Curved) - Illuminated | SPST | Green | No Marking | 20 A |
 Carling Technologies | Incandescent Red | Quick Connect - 0.250" (6.3mm) | On-Off | 85 °C | -40 °C | 125 V | 12 VAC/DC | CSA UL | Panel Mount Snap-In | 30 mm | 22 mm | 100000 Cycles | Concave (Curved) - Illuminated | SPST | Red | No Marking | 20 A |
