9CRB0812 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K

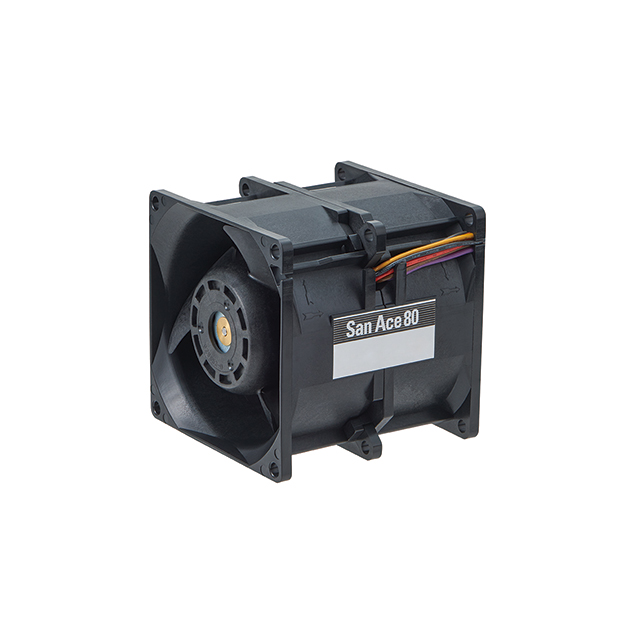

AXIAL FAN, 80MM, 12VDC, 194CFM, 80DBA
| Part | Air Flow | Air Flow | Width [y] | Material - Frame | Current Rating (Amps) | Lifetime @ Temp. | Material - Blade | Voltage Range [Min] | Voltage Range [Max] | Voltage - Rated | Termination | Approval Agency | Power (Watts) | Weight [custom] | Weight [custom] | Features | Static Pressure | Static Pressure | Noise | RPM [custom] | RPM [custom] | Fan Type | Operating Temperature [Min] | Operating Temperature [Max] | Bearing Type | Size / Dimension [z] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | 5.43 m³/min | 194 CFM | 60 mm 80 mm | Plastic | 9.2 A | 40000 Hrs | Plastic | 10.8 VDC | 13.2 VDC | 12 VDC | 4 | cURus TUV | 110.4 W | 430.01 g | 0.948 lb | Counter-Rotating Locked Rotor Protection PWM Control Speed Sensor (Tach) | 4.6 in H2O | 1145.8 Pa | 80 dB(A) | 14600 RPM | 12200 RPM | Tubeaxial (Dual) | -20 ░C | 70 °C | Ball | 80 mm | 80 mm |
