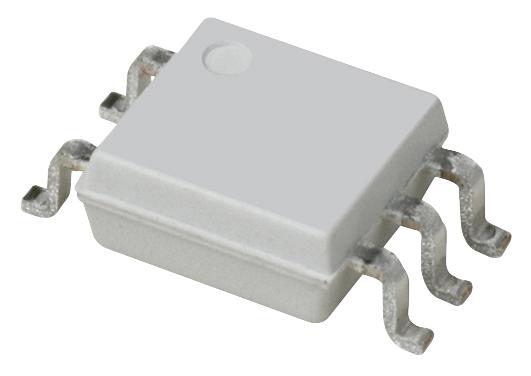

FODM611 Series

High Noise Immunity, 5V, 10Mbit/sec Logic Gate Output (Open Collector) Optocoupler

Catalog

High Noise Immunity, 5V, 10Mbit/sec Logic Gate Output (Open Collector) Optocoupler

Part	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Mounting Type	Output Type	Common Mode Transient Immunity (Min) [Min]	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]	Input Type	Current - DC Forward (If) (Max) [Max]	Number of Channels	Voltage - Forward (Vf) (Typ)	Current - Output / Channel	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Voltage - Isolation	Supplier Device Package	Data Rate
ON Semiconductor FODM611R2	20 ns	10 ns	100 ns	100 ns	Surface Mount	Open Collector Schottky Clamped	20 kV/µs	0	1	DC	50 mA	1	1.45 V	50 mA	85 °C	-40 °C	4.5 V	5.5 V	3750 Vrms	5-Mini-Flat	10 Mbps

Catalog

High Noise Immunity, 5V, 10Mbit/sec Logic Gate Output (Open Collector) Optocoupler

Key Features

• High Noise Immunity characterized by common mode transient immunity (CMTi) - 20kV/µs Minimum CMTi

• High Speed – 10Mbit/sec Date Rate (NRZ) – 100ns max. Propagation Delay – 35ns max. Pulse Width Distortion– 40ns max. Propagation Delay Skew

-40 to +85°C temperature range

• Safety and regulatory approvals – UL1577, 3750 VACRMS for 1 min.– IEC60747-5-2 (pending approval)

Description

The FODM611 is a 5V high-speed logic gate output (open collector) optocoupler, which supports isolated communications allowing digital signals to communicate between systems without conducting ground loops or hazardous voltages. It utilizes ON Semiconductor’s proprietary coplanar packaging technology, Optoplanar®, and optimized IC design to achieve high noise immunity, characterized by high common mode transient immunity specifications. This optocoupler consists of an AlGaAS LED at the input, optically coupled to a high speed integrated photodetector logic gate. The output of the detector IC is an open collector schottky-clamped transistor. The coupled parameters are guaranteed over the wide temperature range of -40°C to +85°C. A maximum input signal of 5A will provide a minimum output sink current of 13mA (fan out of 8).
