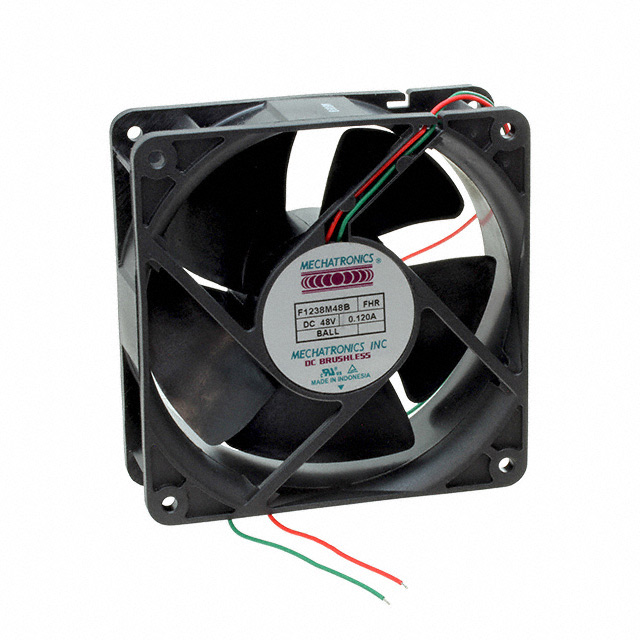

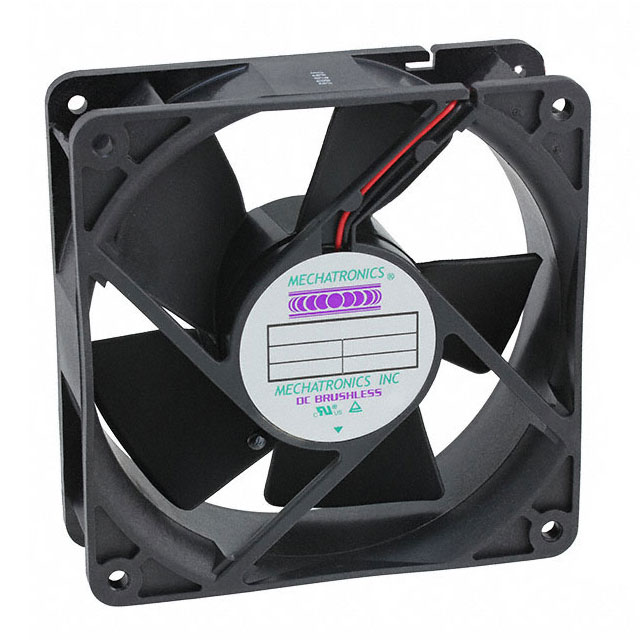

F1238 Series

Catalog

FAN AXIAL 119X38MM 48VDC WIRE

Part	Current Rating (Amps)	Fan Type	Approval Agency	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	RPM	Bearing Type	Width [y]	Voltage - Rated	Air Flow	Air Flow	Static Pressure	Static Pressure	Noise	Termination	Features	Weight [custom]	Weight [custom]	Termination
Mechatronics Fan Group F1238E48B-FHR	0.21 A	Tubeaxial	CE cUL TUV UL	Square	119 mm	119 mm	3300 RPM	Ball	38 mm	48 VDC	3.39 mł/min	121 CFM	0.33 in H2O	82.2 Pa	44 dB(A)	2 Wire Leads	Auto Restart	0.097 lb	44 g
Mechatronics Fan Group F1238M12B-FSR	360 mA	Tubeaxial	CE cUL TUV UL	Square	119 mm	119 mm	2300 RPM	Ball	38 mm	12 VDC	2.94 m³/min	105 CFM	0.21 in H2O	52.3 Pa	38 dB(A)	2 Wire Leads	Auto Restart Locked Rotor Protection
Mechatronics Fan Group F1238E12B2-FHR-TTL	0.7 A	Tubeaxial	CE cUL TUV UL	Square	119 mm	119 mm	3300 RPM	Ball	38 mm	12 VDC	3.39 mł/min	121 CFM	0.33 in H2O	82.2 Pa	44 dB(A)	4 Wire Leads	Auto Restart Locked Rotor Sensor Speed Sensor (Tach)	0.59 lb	267.62 g
Mechatronics Fan Group F1238X24B-FHR	0.5 A	Tubeaxial	CE cUL TUV UL	Square	119 mm	119 mm	3600 RPM	Ball	38 mm	24 VDC	3.64 m³/min	130 CFM	0.37 in H2O	92.2 Pa	47 dB	2 Wire Leads	Auto Restart	0.59 lb	267.62 g
Mechatronics Fan Group F1238H12BT-FHR	0.44 A	Tubeaxial	CE cUL TUV UL	Square	119 mm	119 mm	3000 RPM	Ball	38 mm	12 VDC	3.14 mł/min	112 CFM	0.28 in H2O	69.7 Pa	41 dB		Auto Restart	0.59 lb	267.62 g	2
Mechatronics Fan Group F1238H12B2-FS	0.44 A	Tubeaxial	CE cUL TUV UL	Square	119 mm	119 mm	2500 RPM	Ball	38 mm	12 VDC	3.22 mł/min	115 CFM	0.25 in H2O	62.3 Pa	41 dB	3 Wire Leads	Auto Restart Locked Rotor Sensor
Mechatronics Fan Group F1238M48BT-FSR	120 mA	Tubeaxial	CE cUL TUV UL	Square	119 mm	119 mm	2300 RPM	Ball	38 mm	48 VDC	2.94 m³/min	105 CFM	0.21 in H2O	52.3 Pa	38 dB(A)		Auto Restart Locked Rotor Protection			2
Mechatronics Fan Group F1238X12BT-FSR	0.95 A	Tubeaxial	CE cUL TUV UL	Square	119 mm	119 mm	3100 RPM	Ball	38 mm	12 VDC	3.92 mł/min	140 CFM	0.3 in H2O	74.7 Pa	45 dB(A)		Auto Restart Locked Rotor Protection			2
Mechatronics Fan Group F1238E24B-FHR	0.35 A	Tubeaxial	CE cUL TUV UL	Square	119 mm	119 mm	3300 RPM	Ball	38 mm	24 VDC	3.39 mł/min	121 CFM	0.33 in H2O	82.2 Pa	44 dB(A)	2 Wire Leads	Auto Restart	0.59 lb	267.62 g
Mechatronics Fan Group F1238S12B1-FSR	0.18 A	Tubeaxial	CE cUL TUV UL	Square	119 mm	119 mm	1800 RPM	Ball	38 mm	12 VDC	2.32 m³/min	83 CFM	0.14 in H2O	34.9 Pa	34 dB(A)	3 Wire Leads	Auto Restart Locked Rotor Protection Speed Sensor (Tach)
