MAX5113 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
DEVELOPMENT BOARDS & KITS ROHS
| Part | Number of Bits | DAC Type | Settling Time | Supplied Contents | Utilized IC / Part | Number of DAC's | Data Interface | Number of D/A Converters | INL/DNL (LSB) | Supplier Device Package | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog | Voltage - Supply, Analog [Min] | Reference Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Mounting Type | Output Type | Differential Output | Package / Case | Supplier Device Package [x] | Supplier Device Package [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

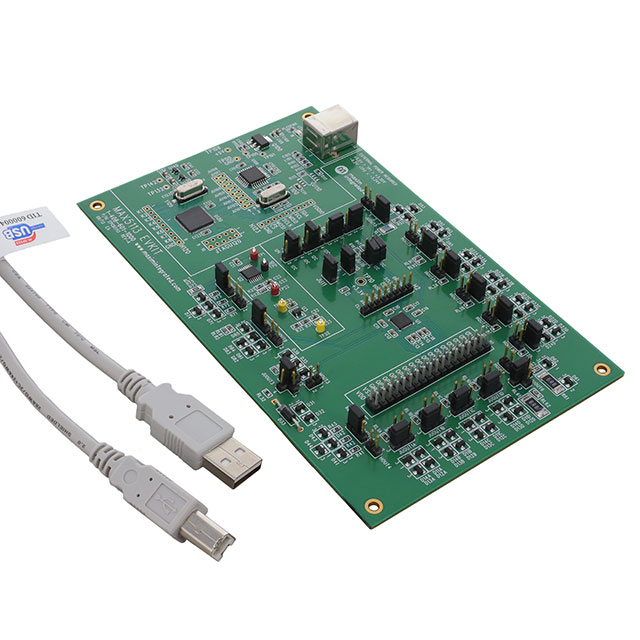

 Analog Devices Inc./Maxim Integrated | 14 | Current | 15 µs | Board(s) | MAX5113 | 1 | SPI | |||||||||||||||||
 Analog Devices Inc./Maxim Integrated | 14 | 15 µs | SPI | 9 | 0.5 LSB 2 LSB | 32-TQFN (5x5) | 3.3 V | -5 V | 2.6 V | Internal | -40 °C | 105 ░C | 3.3 V | 2.6 V | Surface Mount | Current - Buffered | ||||||||
 Analog Devices Inc./Maxim Integrated | 14 | 15 µs | SPI | 9 | 0.5 LSB 2 LSB | 36-WLP | 3.3 V | -5 V | 2.6 V | Internal | -40 °C | 105 ░C | 3.3 V | 2.6 V | Surface Mount | Current - Buffered | 36-WFBGA WLBGA | 3.07 | 3.07 | |||||
Analog Devices Inc./Maxim Integrated |
