SPT 16 Series
Manufacturer: Phoenix Contact
Beta
⌘K
CONN PC TERMINAL BLOCK 2 POS 10MM SOLDER ST THRU-HOLE 76A CARDBOARD
| Part | Housing Material | Current | Mounting Type | Voltage | Positions Per Level | Number of Levels | Color | Wire Gauge [Max] | Wire Gauge [Min] | Mating Orientation | Pitch | Pitch | Wire Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | Polyamide (PA) Nylon | 66 A | Through Hole | 600 V | 2 | 1 | Green | 20 AWG | 4 AWG | Vertical with Board | 0.394 in | 10 mm | Screwless - Spring Cage Tension Clamp |

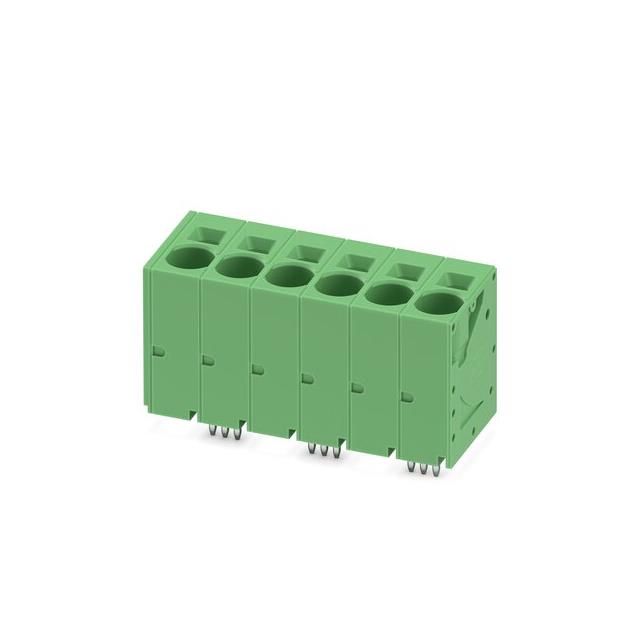

 Phoenix Contact | Polyamide (PA) Nylon | 66 A | Through Hole | 300 VDC | 6 | 1 | Green | 20 AWG | 4 AWG | Vertical with Board | 0.394 in | 10 mm | Screwless - Spring Cage Tension Clamp |
 Phoenix Contact | Polyamide (PA) Nylon | 66 A | Through Hole | 300 VDC | 1 | 1 | Green | 20 AWG | 4 AWG | Vertical with Board | Screwless - Spring Cage Tension Clamp | ||

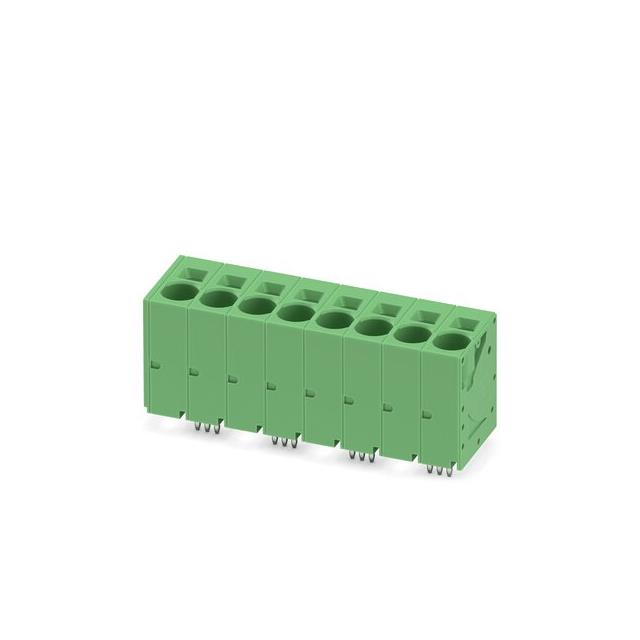

 Phoenix Contact | Polyamide (PA) Nylon | 66 A | Through Hole | 300 VDC | 8 | 1 | Green | 20 AWG | 4 AWG | Vertical with Board | 0.394 in | 10 mm | Screwless - Spring Cage Tension Clamp |
