62674 Series

Catalog

CONN FFC FPC VERT 8POS 0.5MM SMD

Part	Housing Material	Actuator Material	Housing Color	FFC, FCB Thickness	Height Above Board	Height Above Board	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Cable End Type	Voltage Rating	Flat Flex Type	Contact Material	Pitch [x]	Pitch [x]	Connector/Contact Type	Contact Finish	Termination	Current Rating (Amps)	Mounting Type	Number of Positions	Mating Cycles	Locking Feature	Actuator Color

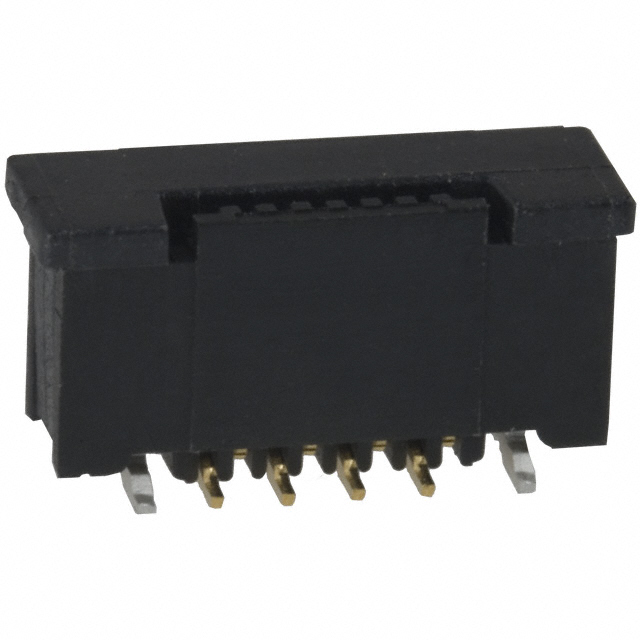

Amphenol ICC (FCI) 62674-081121ALF	Plastic Glass Filled	Glass Filled Plastic	Black	0.3 mm	0.161 "	4.1 mm	105 ░C	-55 °C	UL94 V-0	Straight Tapered	50 V	FFC FPC	Phosphor Bronze	0.5 mm	0.02 in	Contacts Vertical - 1 Sided	Gold	Kinked Pin	0.5 A	Surface Mount	8	20
Amphenol ICC (FCI) 62674-241121	Plastic Glass Filled	Glass Filled Plastic	Black	0.3 mm	0.161 "	4.1 mm	85 °C	-55 °C	UL94 V-0	Straight Tapered	50 V	FFC FPC	Phosphor Bronze	0.5 mm	0.02 in	Contacts Vertical - 1 Sided	Solder Plating	Solder	0.5 A	Surface Mount	24		Slide Lock	Black

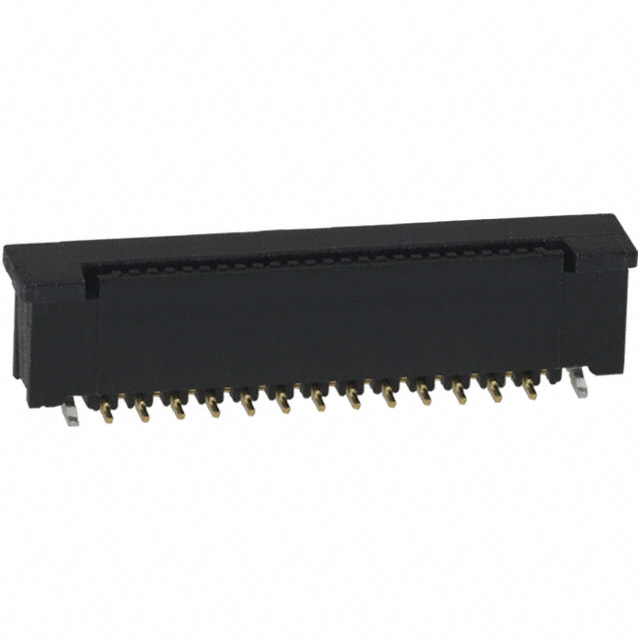

Amphenol ICC (FCI) 62674-251121ALF	Plastic Glass Filled	Glass Filled Plastic	Black	0.3 mm	0.161 "	4.1 mm	105 ░C	-55 °C	UL94 V-0	Straight Tapered	50 V	FFC FPC	Phosphor Bronze	0.5 mm	0.02 in	Contacts Vertical - 1 Sided	Gold	Kinked Pin	0.5 A	Surface Mount		20
Amphenol ICC (FCI) 62674-121141ALF	Plastic Glass Filled	Glass Filled Plastic	Black	0.3 mm	0.161 "	4.1 mm	105 ░C	-55 °C	UL94 V-0	Straight Tapered	50 V	FFC FPC	Phosphor Bronze	0.5 mm	0.02 in	Contacts Vertical - 1 Sided	Gold	Solder	0.5 A	Surface Mount	12	20	Slide Lock	Black

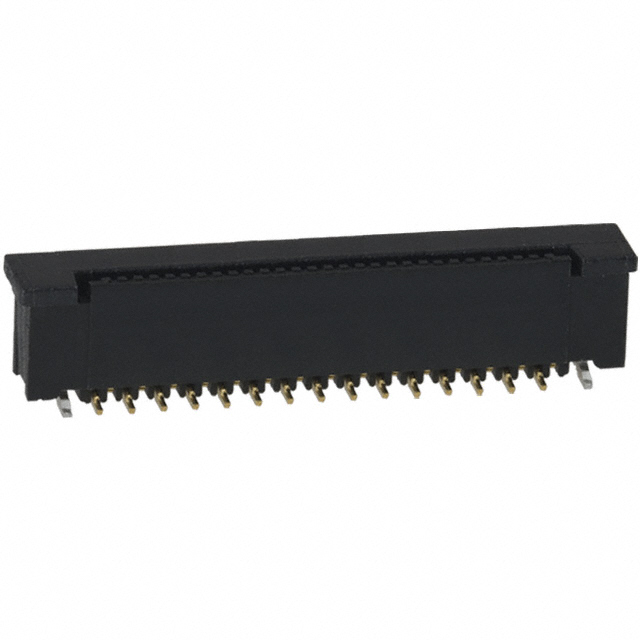

Amphenol ICC (FCI) 62674-301121ALF	Plastic Glass Filled	Glass Filled Plastic	Black	0.3 mm	0.161 "	4.1 mm	105 ░C	-55 °C	UL94 V-0	Straight Tapered	50 V	FFC FPC	Phosphor Bronze	0.5 mm	0.02 in	Contacts Vertical - 1 Sided	Gold	Kinked Pin	0.5 A	Surface Mount	30	20
Amphenol ICC (FCI) 62674-331121	Plastic Glass Filled	Glass Filled Plastic	Black	0.3 mm	0.161 "	4.1 mm	85 °C	-55 °C	UL94 V-0	Straight Tapered	50 V	FFC FPC	Phosphor Bronze	0.5 mm	0.02 in	Contacts Vertical - 1 Sided	Solder Plating	Solder	0.5 A	Surface Mount	33		Slide Lock	Black
Amphenol ICC (FCI) 62674-211121ALF	Plastic Glass Filled	Glass Filled Plastic	Black	0.3 mm	0.161 "	4.1 mm	105 ░C	-55 °C	UL94 V-0	Straight Tapered	50 V	FFC FPC	Phosphor Bronze	0.5 mm	0.02 in	Contacts Vertical - 1 Sided	Gold	Kinked Pin	0.5 A	Surface Mount	21	20
Amphenol ICC (FCI) 62674-301121DLF	Plastic Glass Filled			0.3 mm	0.161 "	4.1 mm	85 °C	-55 °C		Straight Tapered	50 V	FFC FPC		0.5 mm	0.02 in	Contacts Vertical - 1 Sided	Gold	Solder	0.5 A	Surface Mount	30		Slide Lock
Amphenol ICC (FCI) 62674-121121	Plastic Glass Filled	Glass Filled Plastic	Black	0.3 mm	0.161 "	4.1 mm	85 °C	-55 °C	UL94 V-0	Straight Tapered	50 V	FFC FPC	Phosphor Bronze	0.5 mm	0.02 in	Contacts Vertical - 1 Sided	Solder Plating	Solder	0.5 A	Surface Mount	12		Slide Lock	Black

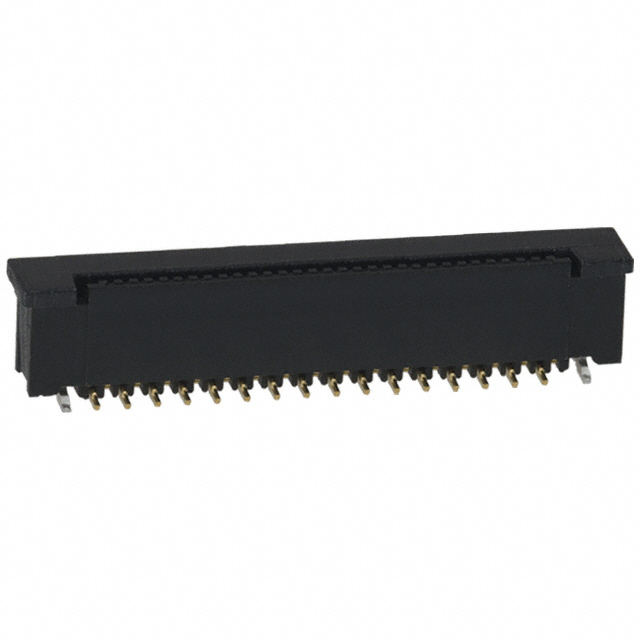

Amphenol ICC (FCI) 62674-321121ALF	Plastic Glass Filled	Glass Filled Plastic	Black	0.3 mm	0.161 "	4.1 mm	105 ░C	-55 °C	UL94 V-0	Straight Tapered	50 V	FFC FPC	Phosphor Bronze	0.5 mm	0.02 in	Contacts Vertical - 1 Sided	Gold	Kinked Pin	0.5 A	Surface Mount		20
