PKB411 Series

Catalog

DC DC CONVERTER 5V 150W

Part	Approval Agency	Voltage - Output 1	Package / Case	Standard Number	Control Features	Efficiency	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Applications	Power (Watts)	Type	Voltage - Input (Min) [Min]	Supplier Device Package	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Number of Outputs	Mounting Type
Flex Power Modules PKB4111DPI	CB CSA IEC TUV UL	5 V	Eighth Brick	62368-1	Active Low Enable	94.7 %	30 A	75 V	ITE (Commercial)	150 W	Isolated Module	36 V	Eighth Brick	2.3 in	0.38 in	0.89 in	9.6 mm	58.4 mm	22.7 mm	Adjustable Output Remote On/Off Remote Sense	-40 °C	125 °C	2250 VDC	1	Through Hole

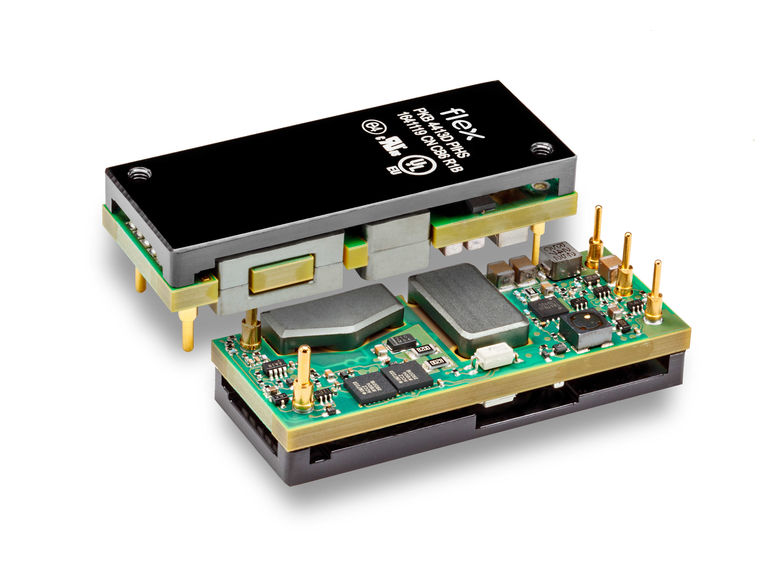

Flex Power Modules PKB4110CPIHS	cURus IEC UL	5 V	Eighth Brick	62368-1		94.7 %	30 A	75 V	ITE (Commercial)	150 W	Isolated Module	36 V	Eighth Brick	2.3 in	0.5 in	0.89 in	12.7 mm	58.4 mm	22.7 mm	Adjustable Output Baseplate Heat Sink Remote On/Off Remote Sense	-40 °C	125 °C	2250 VDC	1	Through Hole
Flex Power Modules PKB4118GCPI	CB CSA IEC TUV UL	1.8 V	Eighth Brick	62368-1	Active Low Enable		60 A	75 V	ITE (Commercial)	108 W	Isolated Module	36 V	Eighth Brick	2.3 in	0.34 in	0.89 in	8.6 mm	58.4 mm	22.7 mm	Adjustable Output Remote On/Off Remote Sense	-40 °C	125 °C	1.5 kV	1	Through Hole
Flex Power Modules PKB4113CPIHS	CB CSA IEC TUV UL	12 V	Eighth Brick	62368-1	Active Low Enable	93 %	12 A	75 V	ITE (Commercial)	144 W	Isolated Module	36 V	Eighth Brick	2.3 in	0.5 in	0.89 in	12.7 mm	58.4 mm	22.7 mm	Adjustable Output Baseplate Remote On/Off Remote Sense	-40 °C	125 °C	1.5 kV	1	Through Hole
Flex Power Modules PKB4110CPI	CB CSA IEC TUV UL	3.3 V	Eighth Brick	62368-1	Active Low Enable	91 %	40 A	75 V	ITE (Commercial)	132 W	Isolated Module	36 V	Eighth Brick	2.3 in	0.34 in	0.89 in	8.6 mm	58.4 mm	22.7 mm	Adjustable Output Remote On/Off Remote Sense	-40 °C	125 °C	1.5 kV	1	Through Hole

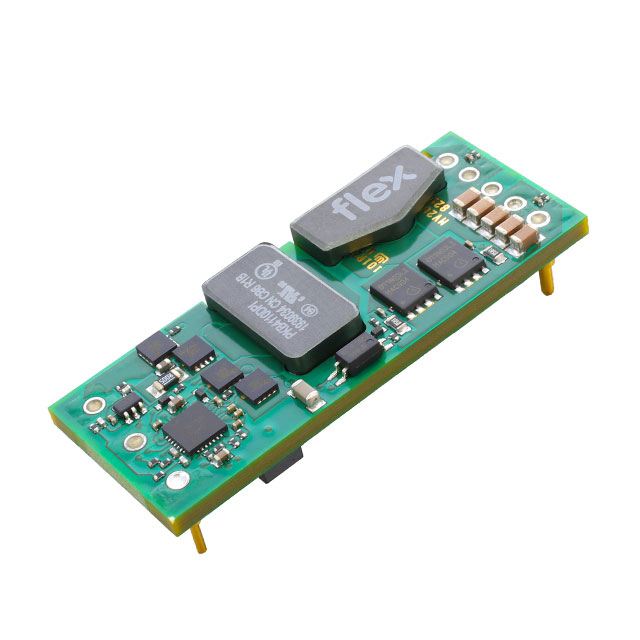

Flex Power Modules PKB4110DPI	CB CSA IEC TUV UL	3.3 V	Eighth Brick	62368-1	Active Low Enable	94.7 %	40 A	75 V	ITE (Commercial)	132 W	Isolated Module	36 V	Eighth Brick	2.3 in	0.38 in	0.89 in	9.6 mm	58.4 mm	22.7 mm	Adjustable Output Remote On/Off Remote Sense	-40 °C	125 °C	2250 VDC	1	Through Hole

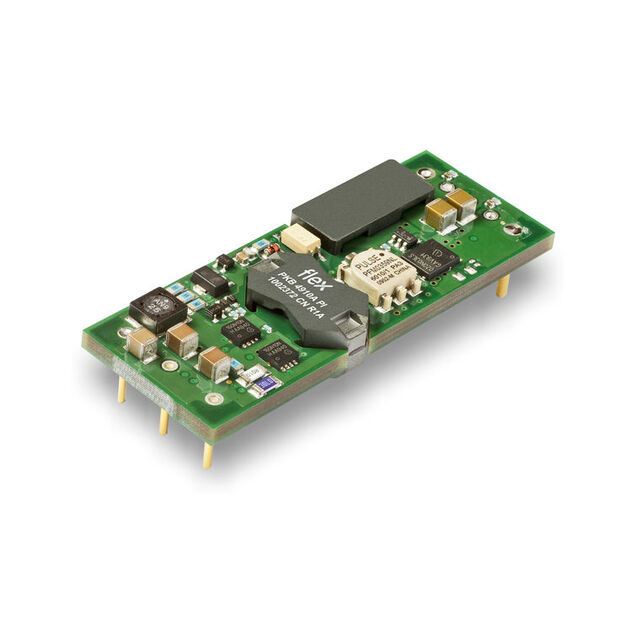

Flex Power Modules PKB4111API	CB CSA IEC TUV UL	5 V	Eighth Brick	62368-1	Active Low Enable	93.5 %	25 A	72 V	ITE (Commercial)	125 W	Isolated Module	36 V	Eighth Brick	2.3 in	0.33 in	0.89 in	8.5 mm	58.4 mm	22.7 mm	Adjustable Output Remote On/Off Remote Sense	-40 °C	125 °C	2250 VDC	1	Through Hole

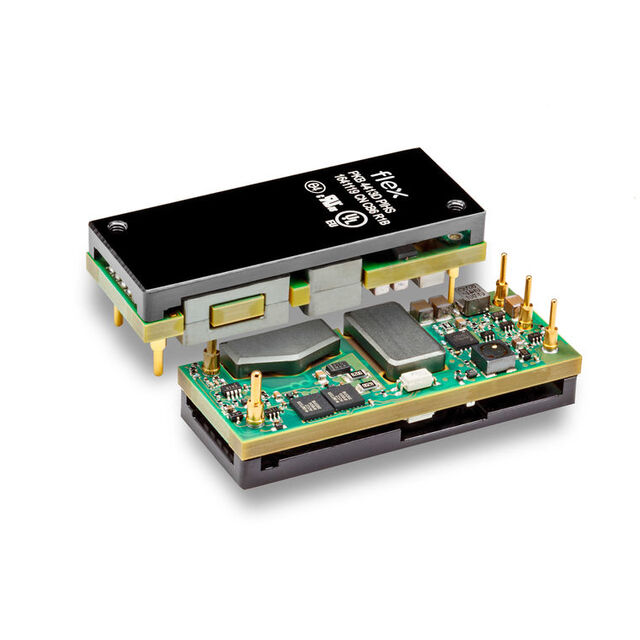

Flex Power Modules PKB4111DPIHS	cURus IEC UL	3.3 V	Eighth Brick	62368-1		91 %	40 A	75 V	ITE (Commercial)	132 W	Isolated Module	36 V	Eighth Brick	2.3 in	0.52 in	0.89 in	13.2 mm	58.4 mm	22.7 mm	Adjustable Output Baseplate Heat Sink Remote On/Off Remote Sense	-40 °C	125 °C	1.5 kV	1	Through Hole

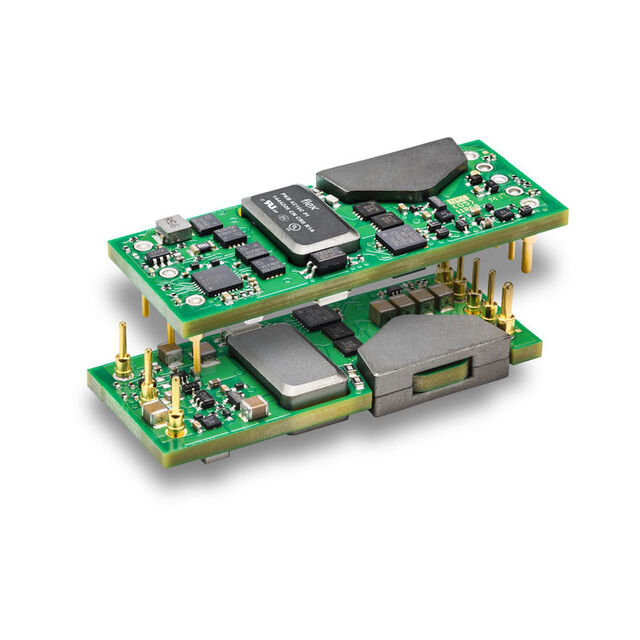

Flex Power Modules PKB4111CPI	CB CSA IEC TUV UL	5 V	Eighth Brick	62368-1	Active Low Enable	92 %	28 A	75 V	ITE (Commercial)	140 W	Isolated Module	36 V	Eighth Brick	2.3 in	0.34 in	0.89 in	8.6 mm	58.4 mm	22.7 mm	Adjustable Output Remote On/Off Remote Sense	-40 °C	125 °C	1.5 kV	1	Through Hole
Flex Power Modules PKB4113CPI	CB CSA IEC TUV UL	12 V	Eighth Brick	62368-1	Active Low Enable	93 %	12 A	75 V	ITE (Commercial)	144 W	Isolated Module	36 V	Eighth Brick	2.3 in	0.34 in	0.89 in	8.6 mm	58.4 mm	22.7 mm	Adjustable Output Remote On/Off Remote Sense	-40 °C	125 °C	1.5 kV	1	Through Hole
