085052 Series

Manufacturer: Molex

Catalog

CONN DIN RCPT 48POS PCB RA GOLD

Part	Style	Number of Positions	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Material - Insulation	Termination	Mounting Type	Number of Positions Loaded	Pitch [x]	Pitch [x]	Connector Type	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Features	Level, Class
Molex 0850520165	R/2	48	UL94 V-0	24 µin	0.61 µm	3	Polyester Thermoplastic	Solder	Through Hole Right Angle	All	2.54 mm	0.1 in	Receptacle Female Sockets	Gold	-55 °C	125 °C
Molex 0850520658	R	96	UL94 V-0	24 µin	0.61 µm	3	Polyester Thermoplastic	Solder	Through Hole Right Angle		2.54 mm	0.1 in	Receptacle Female Sockets	Gold	-55 °C	125 °C	32	Mounting Clips

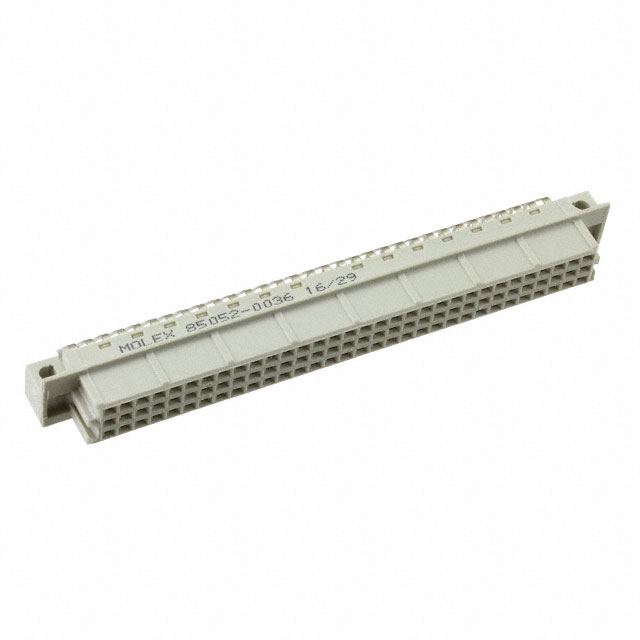

Molex 0850520036	R	96	UL94 V-0	24 µin	0.61 µm	3	Polyester Thermoplastic	Solder	Through Hole Right Angle	All	2.54 mm	0.1 in	Receptacle Female Sockets	Gold	-55 °C	125 °C
Molex 0850520830	R/2 (1/2 R)	48	UL94 V-0	24 µin	0.61 µm	3	Polyester Thermoplastic	Solder	Through Hole Right Angle	All	2.54 mm	0.1 in	Receptacle Female Sockets	Gold	-55 °C	125 °C
Molex 0850520593	R/2 (1/2 R)	48	UL94 V-0	39.4 Áin	1 Ám	3	Polyester Thermoplastic	Solder	Through Hole Right Angle	All	2.54 mm	0.1 in	Receptacle Female Sockets	Gold	-55 °C	125 °C			1
